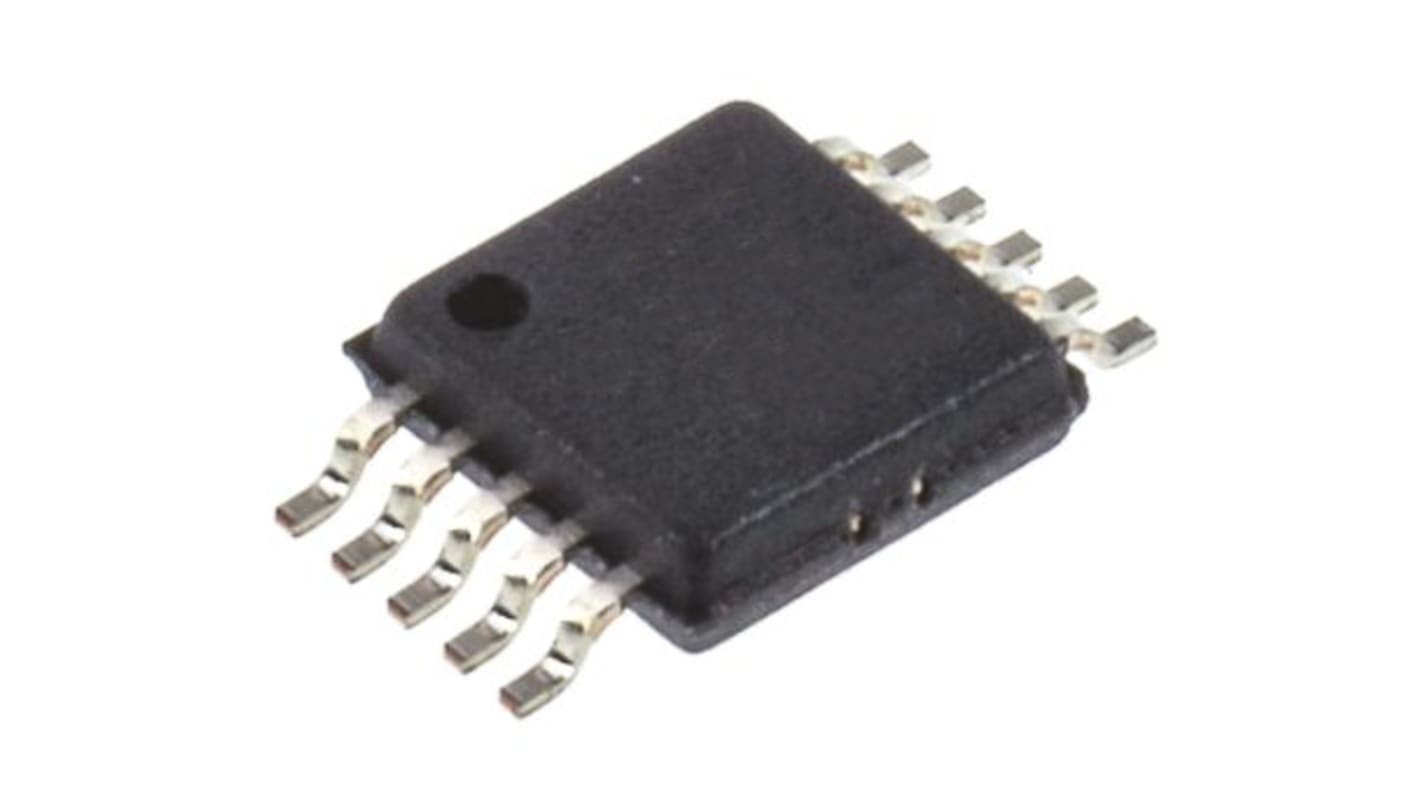

Maxim Integrated,Audio, 10-Pin μMAX MAX4062EUB+
- RS-artikelnummer:
- 190-4714
- Tillv. art.nr:
- MAX4062EUB+
- Tillverkare / varumärke:
- Maxim Integrated
150 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
14,322 kr
(exkl. moms)
17,902 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 50 | 14,322 kr | 716,10 kr |
| 100 - 200 | 12,532 kr | 626,60 kr |
| 250 - 450 | 11,873 kr | 593,65 kr |
| 500 - 950 | 9,222 kr | 461,10 kr |
| 1000 + | 9,038 kr | 451,90 kr |
- RS-artikelnummer:
- 190-4714
- Tillv. art.nr:
- MAX4062EUB+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
2.4V to 5.5V Single-Supply Operation
Adjustable Gain or Fixed-Gain Options
High PSRR (86dB at 1kHz)
High CMRR (70dB at 1kHz)
Low Input-Referred Noise
Integrated Microphone Bias
750μA Supply Current
0.3μA Shutdown Current
±4kV ESD Protection (AUX_IN)
Rail-to-Rail Outputs
THD+N: 0.04% at 1kHz
Available in Space-Saving Packages
8-Pin TDFN (MAX4060/MAX4061)
8-Pin μMAX (MAX4060/MAX4061)
10-Pin μMAX (MAX4062)
Applications
Notebook Audio Systems
PDA Audio Systems
Signal Conditioning
Tablet PCs
USB Audio Peripherals
Adjustable Gain or Fixed-Gain Options
High PSRR (86dB at 1kHz)
High CMRR (70dB at 1kHz)
Low Input-Referred Noise
Integrated Microphone Bias
750μA Supply Current
0.3μA Shutdown Current
±4kV ESD Protection (AUX_IN)
Rail-to-Rail Outputs
THD+N: 0.04% at 1kHz
Available in Space-Saving Packages
8-Pin TDFN (MAX4060/MAX4061)
8-Pin μMAX (MAX4060/MAX4061)
10-Pin μMAX (MAX4062)
Applications
Notebook Audio Systems
PDA Audio Systems
Signal Conditioning
Tablet PCs
USB Audio Peripherals
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Audio |
| Output Type | Rail to Rail |
| Application | Microphone |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.4 → 5.5 V |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Package Type | μMAX |
| Pin Count | 10 |
| Input Signal Type | Differential, Single Ended |
| Output Signal Type | Differential |
| Typical Gain Bandwidth Product | 200kHz |
| Minimum CMRR | 70dB |
| Dimensions | 3.16 x 3.12 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
