Rohde & Schwarz SMC100AP31 SMC100AP31 Waveform Generator 3.2GHz RS Calibration

  • RS-artikelnummer 144-8326
  • Tillv. art.nr SMC100AP31
  • Tillverkare / varumärke Rohde & Schwarz
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CZ
Produktdetaljer

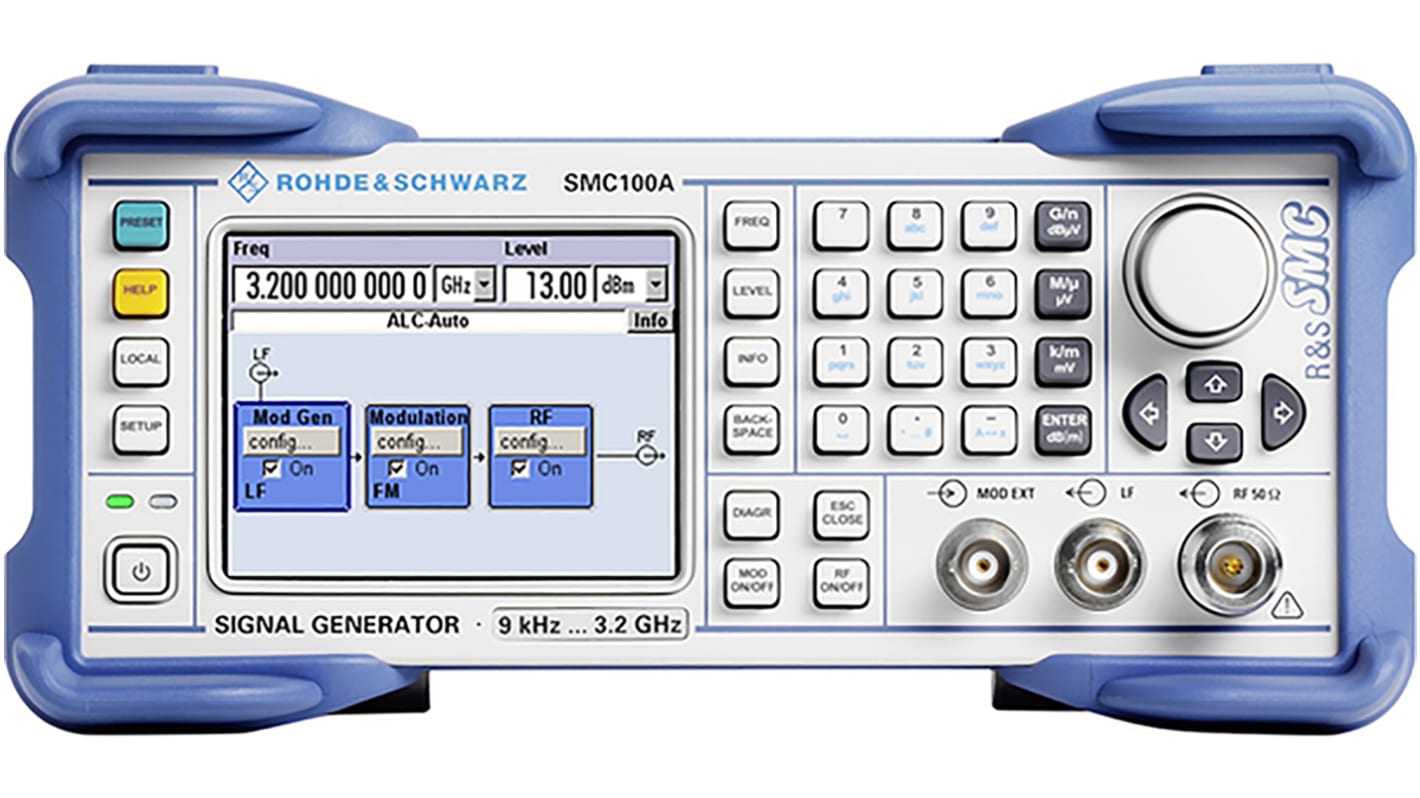

R&S® SMC100A Series Signal Generator

The analogue SMC100A series sets standards for attractively priced signal generators. It has the smallest size and the best price/performance ratio in its class. The flexible and versatile instrument is suited for use in service and maintenance labs. Due to its small dimensions and lightweight design, the R&S®SMC100A is also the perfect choice for field applications or training and education environments.

Application

• Service and maintenance • Research and education
• Field use
• Secure areas
• Simple production applications

Features And Benefits

• High performance at an attractive price • Flexible and universal all purpose signal generator
• Frequency range 9 kHz to 1.1 GHz or 3.2 GHz
• Typical maximum level of >+17 dBm
• Analogue modulation modes (AM/FM/φM/pulse modulation) integrated as standard
• Remote control compatibility with other signal generators
• Multiple language support (nine selectable GUI languages)
• Integrated overvoltage protection
• Wear-free electronic attenuator
• Space-saving operation due to small dimensions
• Smallest signal generator in the economy class
• Lightweight
• Simplified error diagnostics through built-in selftests

Included in this bundle:
  • SMC100A Signal Generator

  • SMC-B103 9kHz…3.2GHz option

  • SMC-B1 reference oscillator option

Signal Generators

Specifikationer
Attribute Value
Maximum Frequency 3.2GHz
Minimum Frequency 9 kHz
Resolution <1 %
Calibrated RSCAL
Maximum Pulse Width 1s
Weight 3.9kg
Connector Type BNC Female
Inputs Modulation In
Data Entry Keyboard
Dimensions 236 x 368 x 112mm
Sweep Triggered
Rise - Fall Time <500ns
Display Type LCD
Maximum Operating Temperature +55°C
Model Number p SMC100AP31
Length 236mm
Width 368mm
Height 112mm
Interface Type LAN, USB
Minimum Operating Temperature 0°C
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each
83 421,00 kr
(exkl. moms)
104 276,25 kr
(inkl. moms)
Enheter
Per unit
1 +
83 421,00 kr
Nästa dag-leverans inte möjlig
