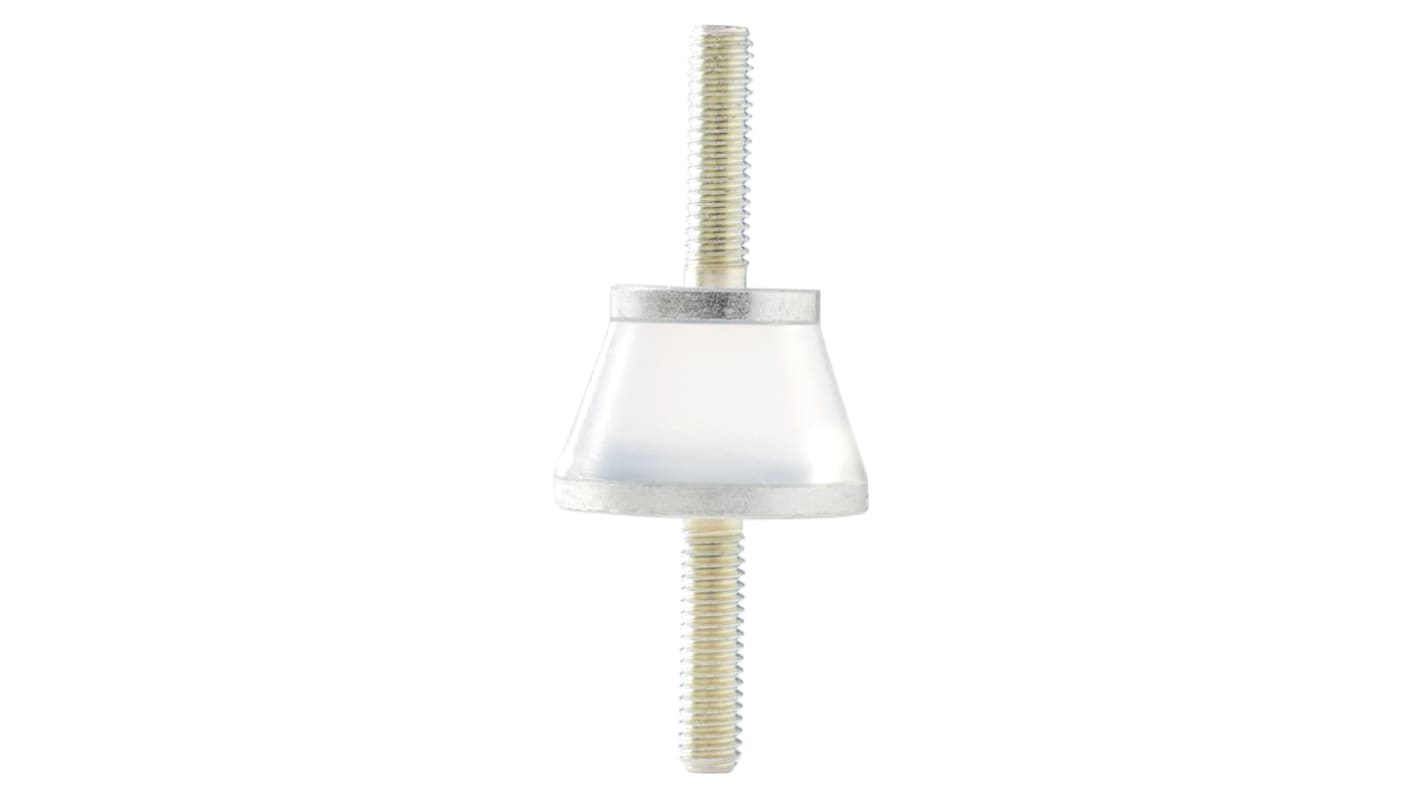

Taica M4 Anti Vibration Mount, Male to Male Bobbin

RS-artikelnummer:: 474-735
Tillv. art.nr:: THETA-A
Tillverkare / varumärke:: Taica

Taica M4 Anti Vibration Mount, Male to Male Bobbin

47 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) 1 påse med 1

407,22 kr

(exkl. moms)

509,02 kr

(inkl. moms)

Påse(ar)	Per Bag
1 - 4	407,22 kr
5 - 9	386,71 kr
10 - 24	374,62 kr
25 +	366,52 kr

RS-artikelnummer:: 474-735
Tillv. art.nr:: THETA-A
Tillverkare / varumärke:: Taica

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: JP

Produktdetaljer

Soft Silicone Gel Mounts

Soft silicone gel mounts for vibration isolation, shock absorption and noise reduction. Used for vibration damping on loads from 2 kg up to 100 kg supported at 4 points. Gel anti-vibration mounts are able to dampen to a lower frequency than rubber or neoprene.

All SUS versions are stainless steel equivalents.

Features and Benefits

• Fixable by two vertical slotted bolts
• Strong Bond Between Metal Parts and Silicone
• High Temperature Resistance -40 to 200°C
• Excellent Weathering Properties, Ozone Resistant, UV Resistant and Chemically Resistant
• Not Suitable for Applications Involving Uneven Loads, Angular Loading, Twisting, Tensile or Shearing Loads

Application Information

Ideal for use on vacuum pumps, precision equipment, measuring applications, on-board computers and other sensitive electronic equipment.

Note

A bag contains 1 item

Silicone Low Frequency Male/Male Mounts

Specifikationer

Attribute	Value
Anti Vibration Mount Type	Male to Male Bobbin
Thread Size	M4
Diameter	12 (Top) mm, 18 (Bottom)mm
Overall Height	43mm
Material	Silicone
Metalwork	Chrome Plated Iron
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+200°C

RS-artikelnummer:: 474-735
Tillv. art.nr:: THETA-A
Tillverkare / varumärke:: Taica

Datasheet
