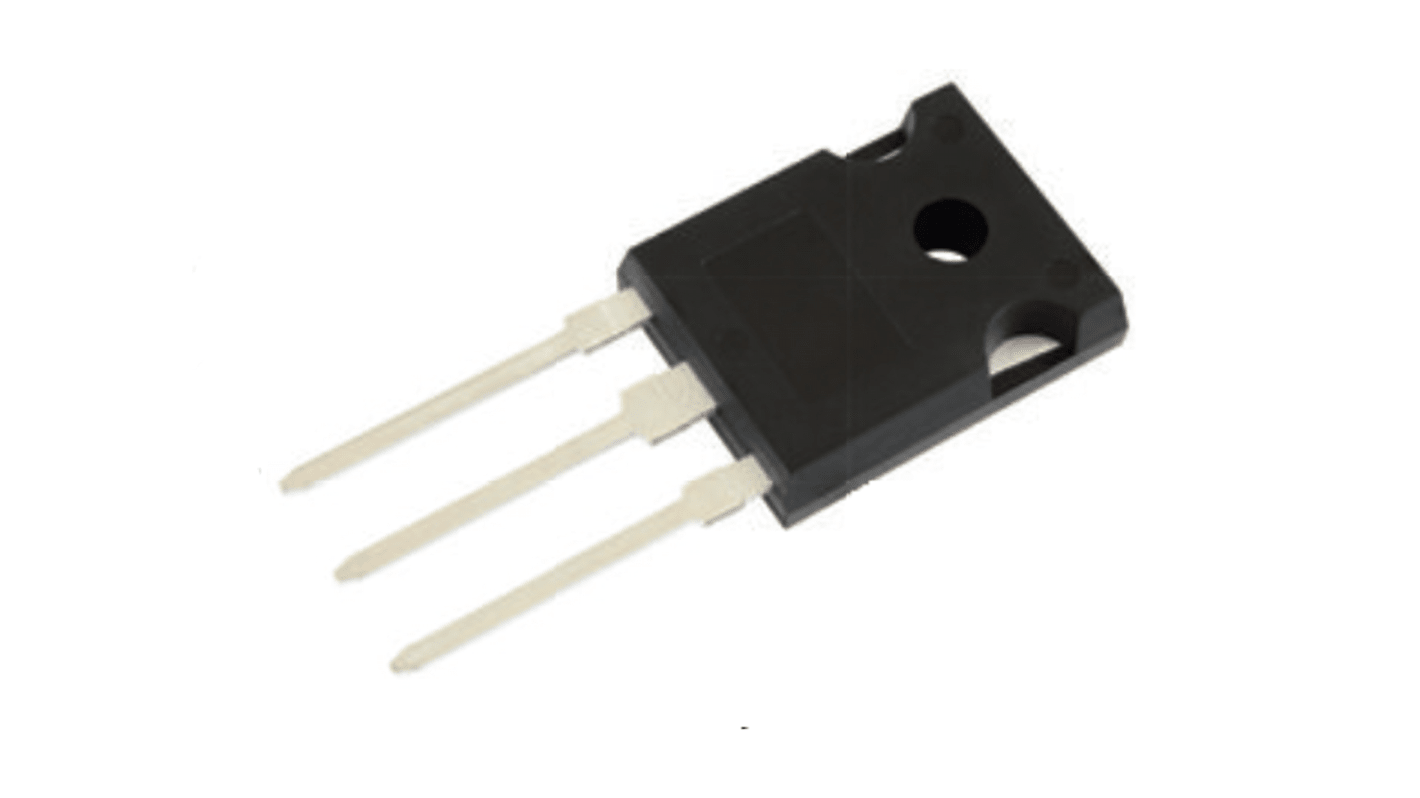

Vishay 400 V 30 A Rectifier & Schottky Diode General Purpose TO-247AD

View this category

Subtotal (1 tube of 25 units)*

620,925 kr

(exc. VAT)

776,15 kr

(inc. VAT)

Add to Basket
Select or type quantity
Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.
I lager
  • Dessutom levereras 475 enhet(er) från den 04 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Units
Per unit
Per Tube*
25 +24,837 kr620,93 kr

*price indicative

RS Stock No.:
243-7116
Mfr. Part No.:
VS-30CPU04LHN3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Rectifier & Schottky Diode

Mount Type

Surface

Package Type

TO-247AD

Maximum Continuous Forward Current If

30A

Peak Reverse Repetitive Voltage Vrrm

400V

Diode Configuration

2x Common Cathode Pair

Series

FRED Pt

Rectifier Type

General Purpose

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Minimum Operating Temperature

-55°C

Maximum Forward Voltage Vf

0.93V

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The Vishay FRED Pt® series Ultrafast Rectifier are the state of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast recovery time. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as freewheeling diodes in low voltage inverters and chopper motor drives. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

Ultrafast recovery time

Low forward voltage drop

175 °C operating junction temperature

Low leakage current

AEC-Q101 qualified, meets JESD 201 class 1A whisker test
