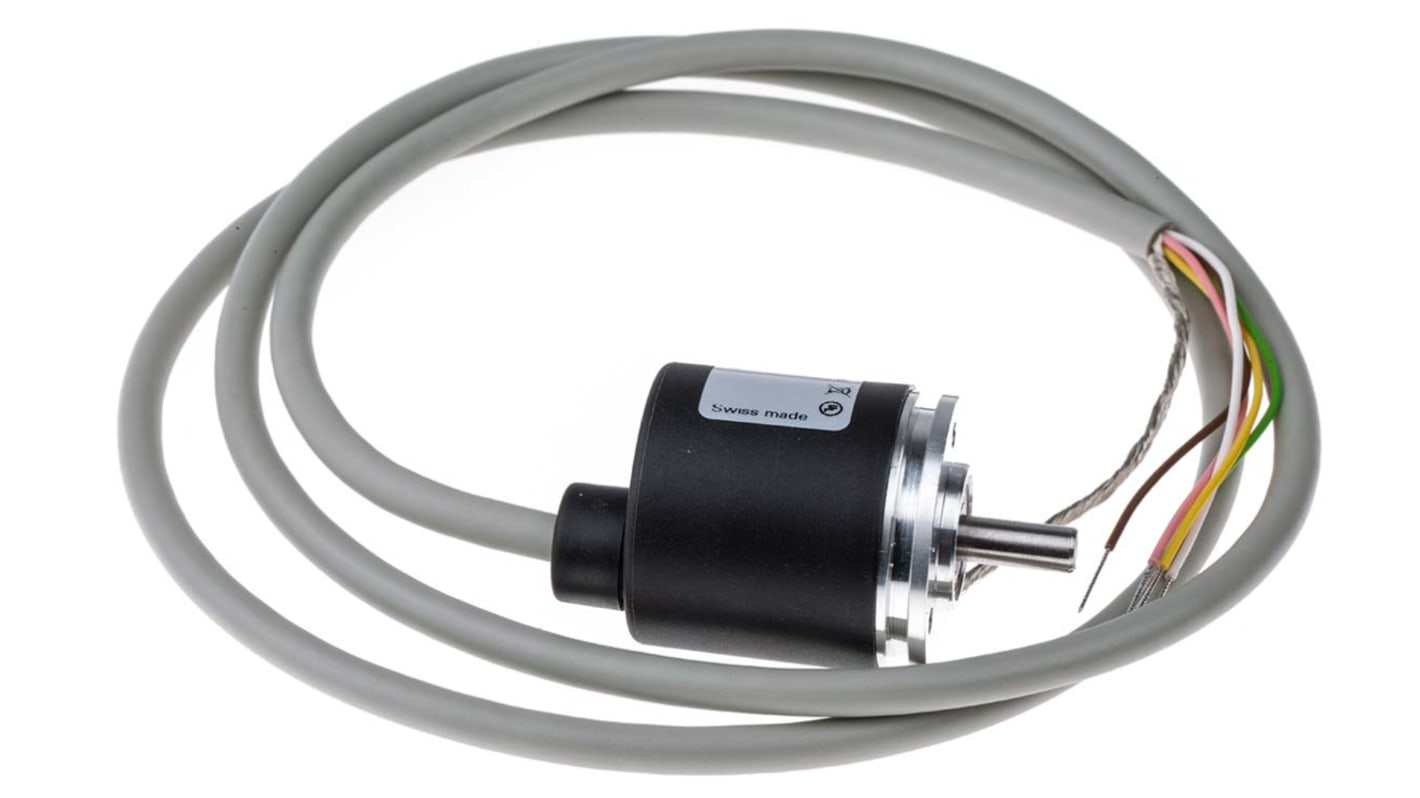

Baumer BDK Series Optical Incremental Encoder, 1024 ppr, HTL/Push Pull Signal, Solid Type, 5mm Shaft
- RS Stock No.:
- 499-7633
- Mfr. Part No.:
- BDK 16.24K1024-5-4
- Brand:
- Baumer
Subtotal (1 unit)*
4 492,33 kr
(exc. VAT)
5 615,41 kr
(inc. VAT)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 2 enhet(er) från den 15 december 2025
- Dessutom levereras 1 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Units | Per unit |
|---|---|
| 1 + | 4 492,33 kr |
*price indicative
- RS Stock No.:
- 499-7633
- Mfr. Part No.:
- BDK 16.24K1024-5-4
- Brand:
- Baumer
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Encoder Technology | Optical | |
| Pulses Per Revolution | 1024 | |
| Series | BDK | |
| Maximum Revolutions | 12000rpm | |
| Output Signal Type | HTL/Push Pull | |
| Shaft Type | Solid | |
| Supply Voltage | 10 → 30 V dc | |
| Shaft Diameter | 5mm | |
| IP Rating | IP42 | |
| Overall Width | 30mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Synchro Flange | |
| Switching Frequency | ≤100 kHz | |
| Connection Type | Cable output 1 m | |
| Select all | ||
|---|---|---|
Brand Baumer | ||
Encoder Technology Optical | ||
Pulses Per Revolution 1024 | ||
Series BDK | ||
Maximum Revolutions 12000rpm | ||
Output Signal Type HTL/Push Pull | ||
Shaft Type Solid | ||
Supply Voltage 10 → 30 V dc | ||
Shaft Diameter 5mm | ||
IP Rating IP42 | ||
Overall Width 30mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Synchro Flange | ||
Switching Frequency ≤100 kHz | ||
Connection Type Cable output 1 m | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
BDK Miniature Shaft
Collar mounting
Push-pull or complementary versions available
Push-pull or complementary versions available
Baumer
Incremental rotary encoders.
