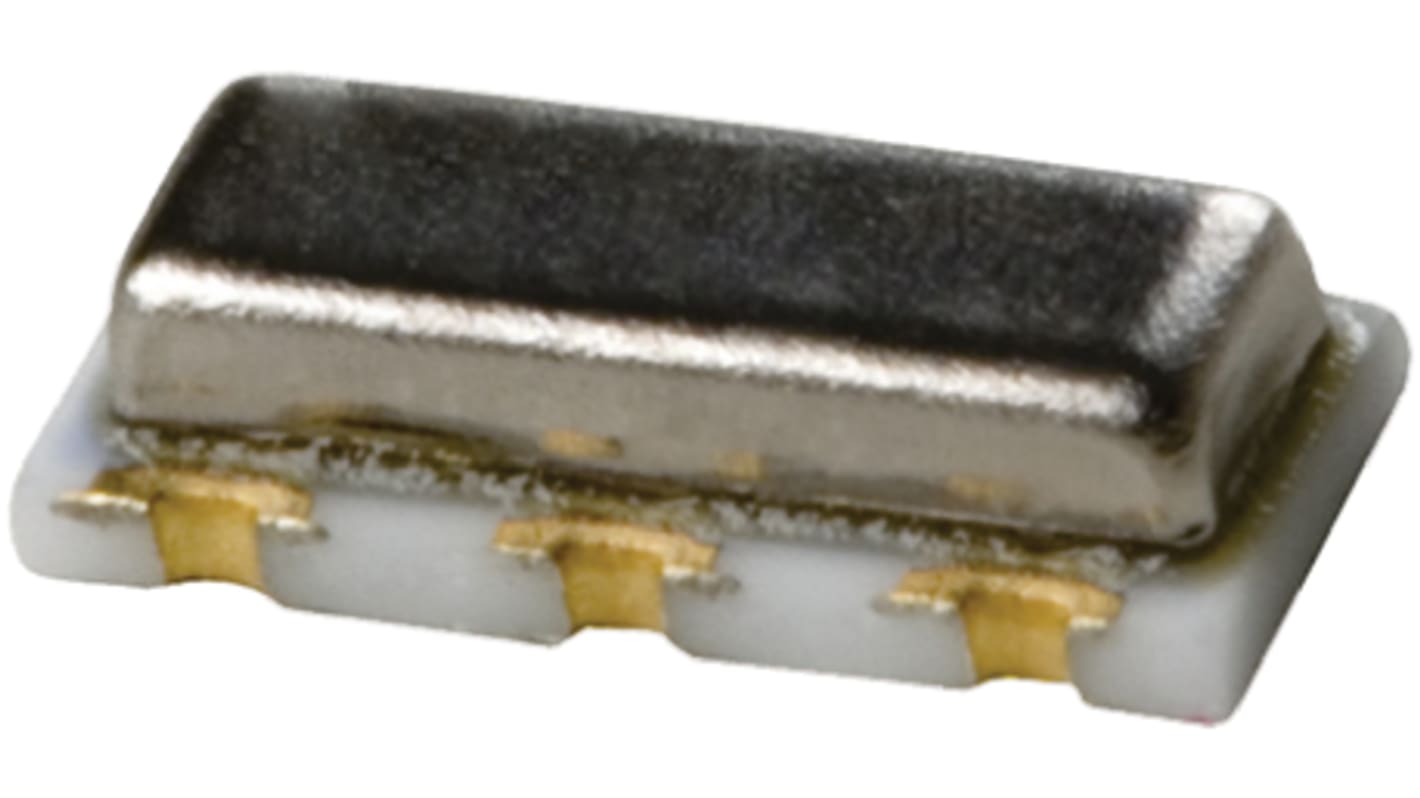

Murata Ceramic Resonator, 4 MHz Shear 39 pF, 3-Pin Plastic Taping 1.15 mm 2 mm, 4.5 mm

View all Ceramic Resonators

Subtotal (1 reel of 3000 units)*

4 380,00 kr

(exc. VAT)

5 460,00 kr

(inc. VAT)

Add to Basket
Select or type quantity
Tillfälligt slut
  • Leverans från den 17 februari 2027
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Units
Per unit
Per Reel*
3000 +1,46 kr4 380,00 kr

*price indicative

RS Stock No.:
166-9528
Mfr. Part No.:
CSTCR4M00G55-R0
Brand:
Murata
Find similar products by selecting one or more attributes.
Select all

Brand

Murata

Product Type

Ceramic Resonator

Resonance Frequency

4MHz

Frequency Tolerance

±0.5 %

Mode of Oscillation

Shear

Packaging

Reel

Load Capacitance

39pF

Resonance Resistance

60Ω

Frequency Ageing

±0.1 %

Frequency Stability

±0.2 %

Mount Type

Surface Mount

Package Type

Plastic Taping

Pin Count

3

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Width

2 mm

Series

CSTCR

Length

4.5mm

Standards/Approvals

RoHS, REACH

Height

1.15mm

Automotive Standard

No

COO (Country of Origin):
JP

CSTCR


No adjustment necessary for oscillation circuits

Integral load capacitors

Wide selection of frequencies available

The CSTCR series of MHz band ceramic resonators from Murata are part of the CERALOCK® range. CERALOCK® ceramic resonators are constructed from high stability piezoelectric ceramics. Featuring built in load capacitance, these SMD ceramic resonators eliminate the need for external load capacitors. With a low profile and small package size, these ceramic resonators offer an economic use of space and the opportunity for high density mounting.

CSTCR ceramic resonators can be used in applications as a replacement for crystal oscillators. Suitable applications include USB controller ICs, audio equipment and musical instruments amongs others.
