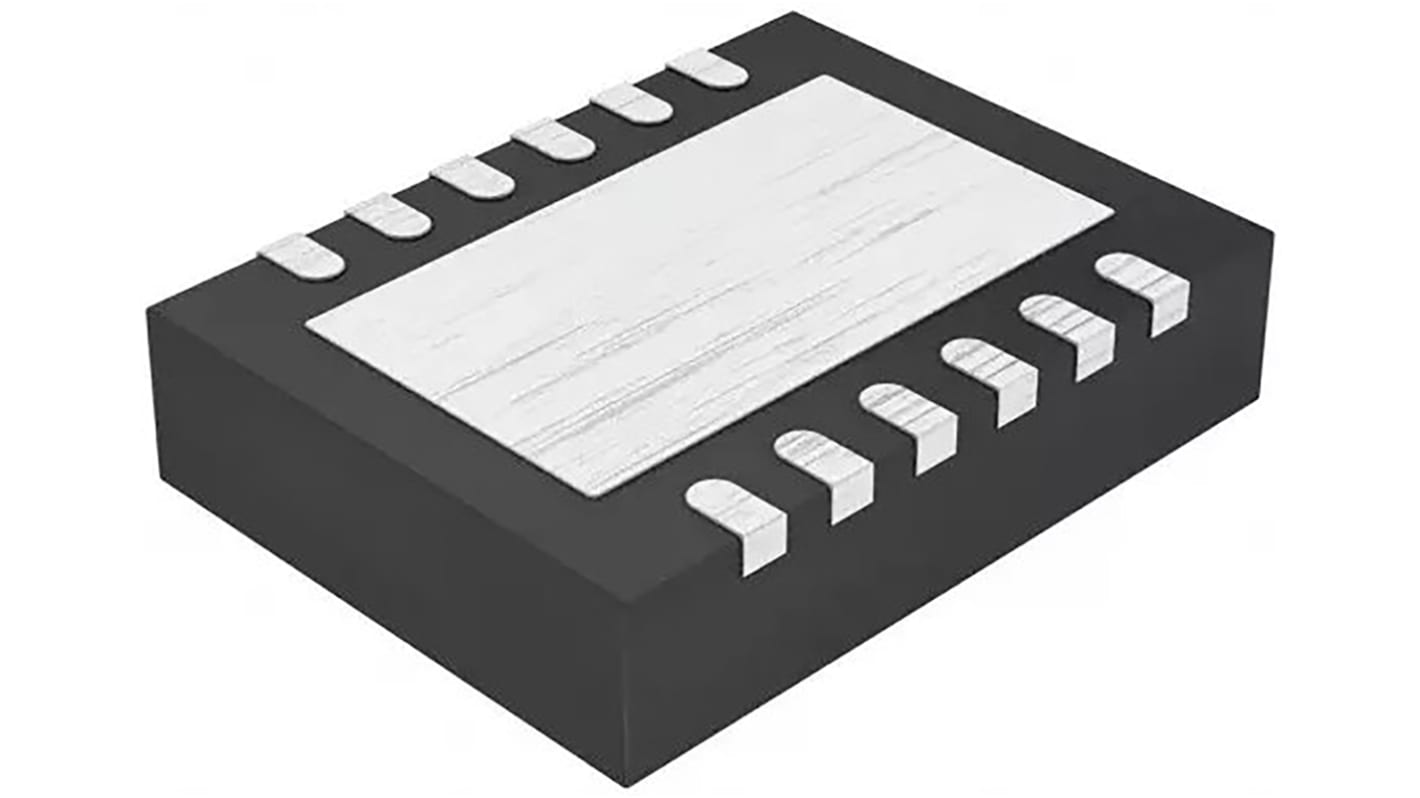

Texas Instruments TPS63020QDSJTQ1, 1 Buck Boost Switching, Boost/Buck Converter 2 (Boost) A, 3 (Step Down) A, 2.5 MHz
- RS-artikelnummer:
- 133-0761
- Tillv. art.nr:
- TPS63020QDSJTQ1
- Tillverkare / varumärke:
- Texas Instruments
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 133-0761
- Tillv. art.nr:
- TPS63020QDSJTQ1
- Tillverkare / varumärke:
- Texas Instruments
Specifikationer
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Texas Instruments | |
| Regulator Function | Boost, Buck | |
| Maximum Output Current | 2 (Boost) A, 3 (Step Down) A | |
| Regulator Type | Buck Boost Switching | |
| Number of Outputs | 1 | |
| Line Regulation | 0.5 % | |
| Load Regulation | 0.5 % | |
| Mounting Type | Surface Mount | |
| Package Type | VSON | |
| Pin Count | 14 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 2.5 MHz | |
| Switching Regulator | Yes | |
| Dimensions | 4.15 x 3.15 x 0.95mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Input Voltage | 1.8 V | |
| Height | 0.95mm | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Input Voltage | 5.5 V | |
| Length | 4.15mm | |
| Width | 3.15mm | |
| Välj alla | ||
|---|---|---|
Brand Texas Instruments | ||
Regulator Function Boost, Buck | ||
Maximum Output Current 2 (Boost) A, 3 (Step Down) A | ||
Regulator Type Buck Boost Switching | ||
Number of Outputs 1 | ||
Line Regulation 0.5 % | ||
Load Regulation 0.5 % | ||
Mounting Type Surface Mount | ||
Package Type VSON | ||
Pin Count 14 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 2.5 MHz | ||
Switching Regulator Yes | ||
Dimensions 4.15 x 3.15 x 0.95mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Input Voltage 1.8 V | ||
Height 0.95mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Input Voltage 5.5 V | ||
Length 4.15mm | ||
Width 3.15mm | ||
Step-Down/Step-Up DC/DC Converters (Integrated Switch), Texas Instruments
This highly efficient buck-boost converter uses a single inductor for DC to DC conversion. With automatic transmission between its Step Down and Step Up functions, buck-boost converters can be employed in battery powered products that use either a two-cell and three-cell alkaline battery, a NiCd or NiMH, or a single cell Lithium battery. This makes it ideal for use with cellular phones and similar hand-held devices.
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
