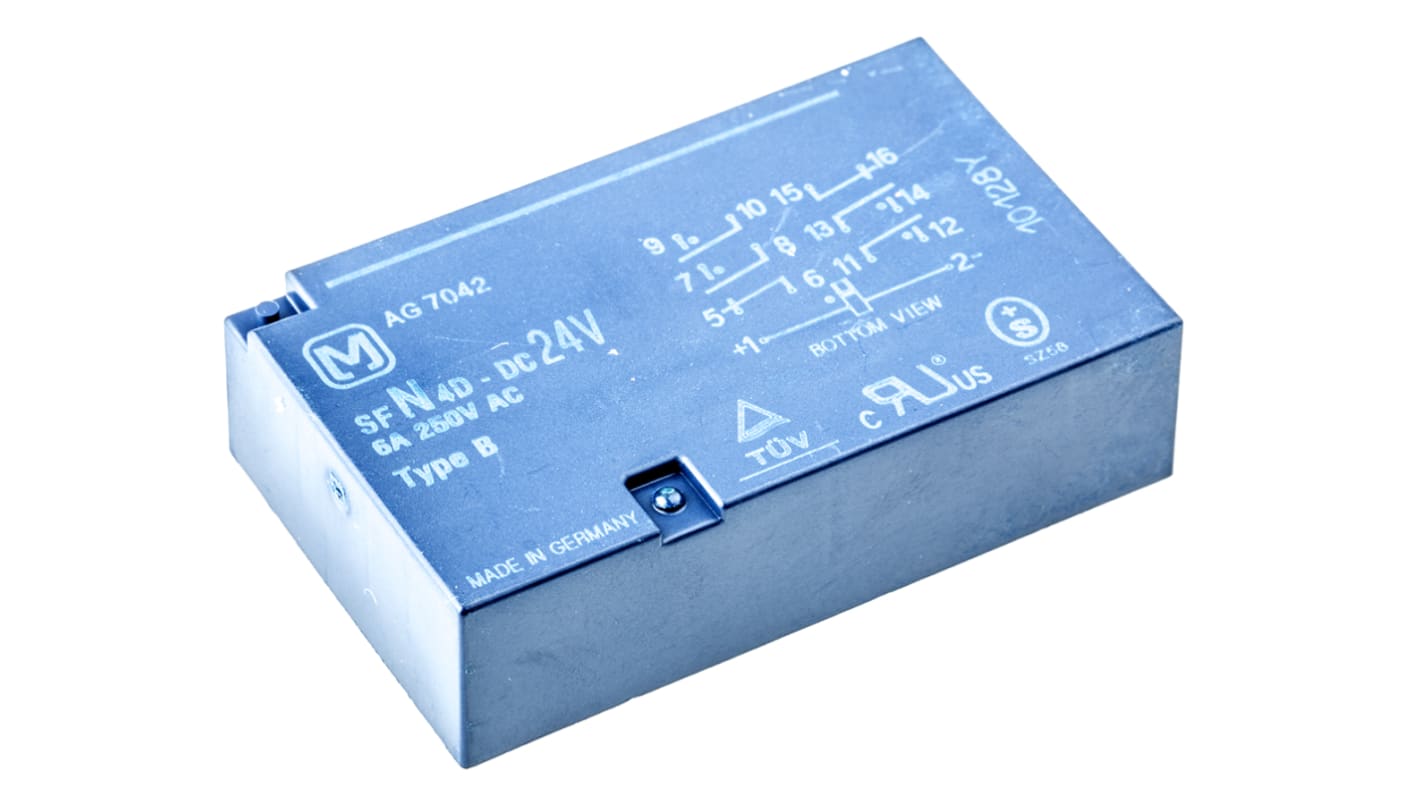

Panasonic PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 4PST, DPST

View all Force Guided Relays

Subtotal (1 box of 10 units)*

4 409,52 kr

(exc. VAT)

5 511,90 kr

(inc. VAT)

Add to Basket
Select or type quantity
I lager
  • Dessutom levereras 50 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Units
Per unit
Per Box*
10 +440,952 kr4 409,52 kr

*price indicative

RS Stock No.:
173-8962
Mfr. Part No.:
SFN4D-DC24V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Coil Voltage

24V dc

Mounting Type

PCB Mount

Contact Configuration

4PST, DPST

Number of Poles

6

Coil Resistance

1.477 kΩ

Switching Current

8A

Coil Power

420mW

Maximum Switching Current AC

8 A

Maximum Switching Current DC

8 A

Maximum Switching Voltage DC

500V

Maximum Switching Voltage AC

500V

Terminal Type

Through Hole

Standards Met

EN 61810-1

Minimum Operating Temperature

-25°C

Series

SFN4D

Life

10000000 (Electrical) cycles

Height

14.5mm

Length

53.3mm

Isolation Coil To Contact

5kV rms

Maximum Operating Temperature

+92°C

Depth

33mm

Contact Material

Gold Plated

COO (Country of Origin):
CZ

SFN Series


These low profile PCB mount safety relays have forcibly guided contacts and have extremely small power loss.

Maximum switching capacity 6A / 8A 250Vac
Maximum switching voltage 500Vac/dc
Nominal coil power consumption 390mW
Low profile, 14.5mm high
Reinforced insulation
Polarized magnet system with snap action function
Small total power loss

Standards

EN50205; EN50178
