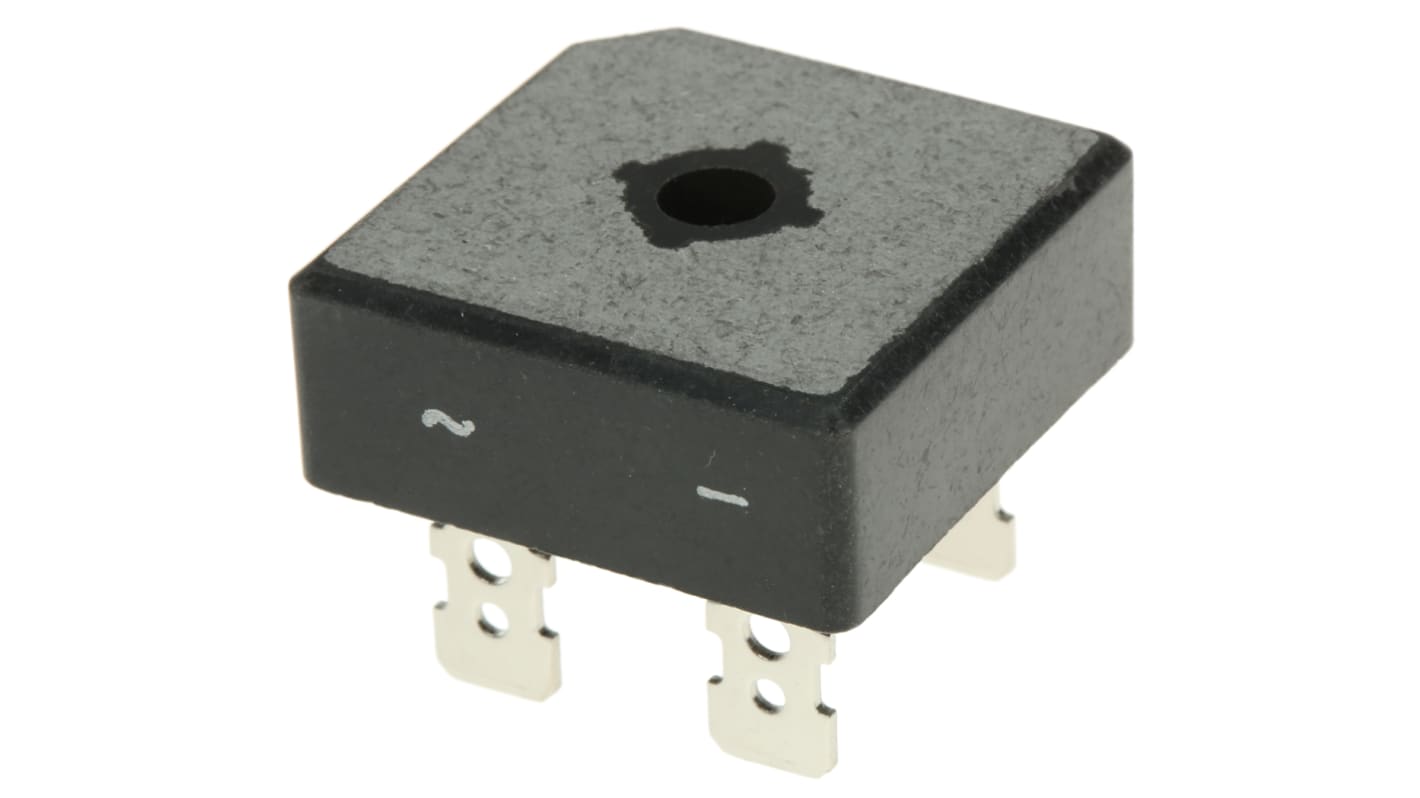

onsemi Bridge Rectifier, 1000 V 400 A, 4-Pin Single

Name: onsemi Bridge Rectifier, 1000 V 400 A, 4-Pin Single
Brand: onsemi
SKU: 803-1939
Price: 79.03 SEK
Availability: BackOrder

Bulk discount available

Subtotal (1 pack of 2 units)*

126,45 kr

(exc. VAT)

158,062 kr

(inc. VAT)

Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.

Tillfälligt slut

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Units	Per unit	Per Pack*
2 - 18	63,225 kr	126,45 kr
20 +	54,49 kr	108,98 kr

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Product Type	Bridge Rectifier
	Peak Reverse Repetitive Voltage Vrrm	1000V
	Mount Type	Screw
	Package Type	GBPC
	Number of Phases	1
	Pin Count	4
	Configuration	Single
	Maximum Operating Temperature	150°C
	Peak Non-Repetitive Forward Surge Current Ifsm	400A
	Minimum Operating Temperature	-55°C
	Forward Current If	35A
	Peak Forward Voltage Vf	1.1V
	Peak Reverse Current Ir	500μA
	Series	GBPC35
	Standards/Approvals	No
	Height	11.23mm
	Length	29mm
	Width	29 mm
	Automotive Standard	No

	Select all
	Brand onsemi
	Product Type Bridge Rectifier
	Peak Reverse Repetitive Voltage Vrrm 1000V
	Mount Type Screw
	Package Type GBPC
	Number of Phases 1
	Pin Count 4
	Configuration Single
	Maximum Operating Temperature 150°C
	Peak Non-Repetitive Forward Surge Current Ifsm 400A
	Minimum Operating Temperature -55°C
	Forward Current If 35A
	Peak Forward Voltage Vf 1.1V
	Peak Reverse Current Ir 500μA
	Series GBPC35
	Standards/Approvals No
	Height 11.23mm
	Length 29mm
	Width 29 mm
	Automotive Standard No

High Current 35 Amperes

Glass Passivated junction

Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation

Fast-on Terminals

UL E-258596
