Turck 1 Channel Galvanic Barrier, Isolating Amplifier, NAMUR Sensor, Switch Input, Relay Output, ATEX, IECEx
- RS-artikelnummer:
- 808-6516
- Tillv. art.nr:
- IM1-12EX-R
- Tillverkare / varumärke:
- Turck
39 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 127,83 kr
(exkl. moms)
2 659,79 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 127,83 kr |
- RS-artikelnummer:
- 808-6516
- Tillv. art.nr:
- IM1-12EX-R
- Tillverkare / varumärke:
- Turck
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

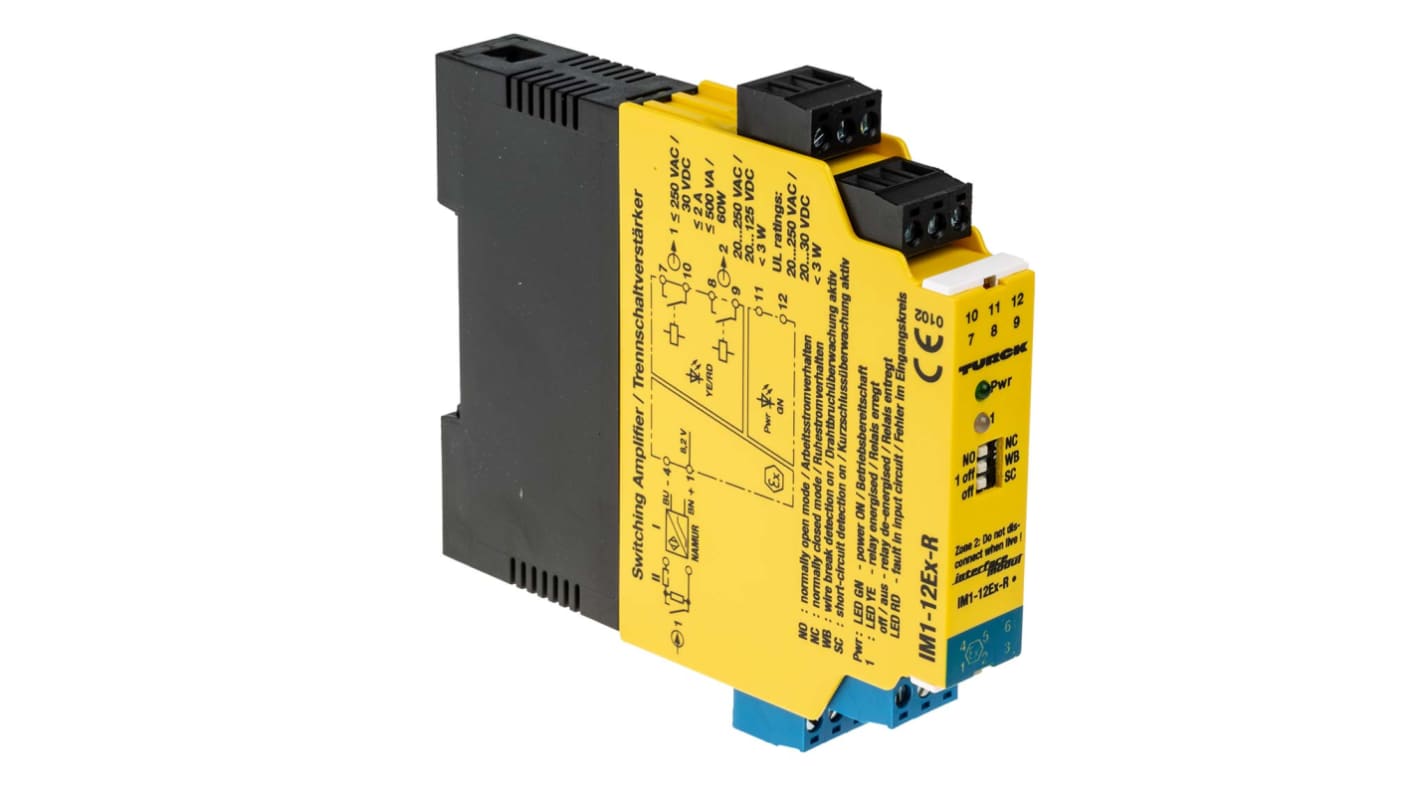

Turck Galvanic Barrier, 20 to 250V AC Operating Voltage Range, 1 Channel - IM1 Series - IM1-12EX-R
Close off electrical circuits between safe and hazardous areas using this galvanic barrier from Turck. It stops current from flowing between two connected systems and forming dangerous ground loops, helping to prevent damage and cut out the risk of electric shocks. LED indicators let you keep an eye on the unit's status to make troubleshooting a breeze. For snappy installation and maintenance, the terminal is removable. It's also coded to minimise the chance of interchange errors. A universal power supply range between 20 and 250V AC makes this barrier just the thing for standard industrial power supply networks.
Features & Benefits
• Flame-retardant for safety in the event of a fire
• Screw terminals for secure wiring without the need for complex tools
• IP20 rating means it's touch-proof and protected against objects larger than 12mm
• Screw terminals for secure wiring without the need for complex tools
• IP20 rating means it's touch-proof and protected against objects larger than 12mm
Applications
• Oil and gas industries
• Mining and minerals processing
• Chemical plants
• Mining and minerals processing
• Chemical plants
How do I mount this galvanic barrier?
This galvanic barrier is designed for mounting on either a DIN rail or a panel, so it's a versatile choice.
Turck Banner DIN Rail Mounting
Specifikationer
Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Module Type | Isolating Amplifier |
| Barrier Type | Galvanic Barrier |
| Output Signal Type | Relay |
| Maximum Voltage | 250V |
| Hazardous Area Certification | ATEX, IECEx |
| Input Signal Type | NAMUR Sensor, Switch |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Supply Voltage | 20 → 250V ac |
| Safety Current Maximum | 8mA |
| Safety Voltage Maximum | 250 V |
| Operating Temperature Range | -25 → +70°C |
