- RS-artikelnummer:
- 230-9437
- Tillv. art.nr:
- BXMT100E
- Tillverkare / varumärke:
- GEORGIN
1 I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) 1 låda med 1
4 868,30 kr
(exkl. moms)
6 085,38 kr
(inkl. moms)
Låda(or) | Per Box |
1 + | 4 868,30 kr |
- RS-artikelnummer:
- 230-9437
- Tillv. art.nr:
- BXMT100E
- Tillverkare / varumärke:
- GEORGIN
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer

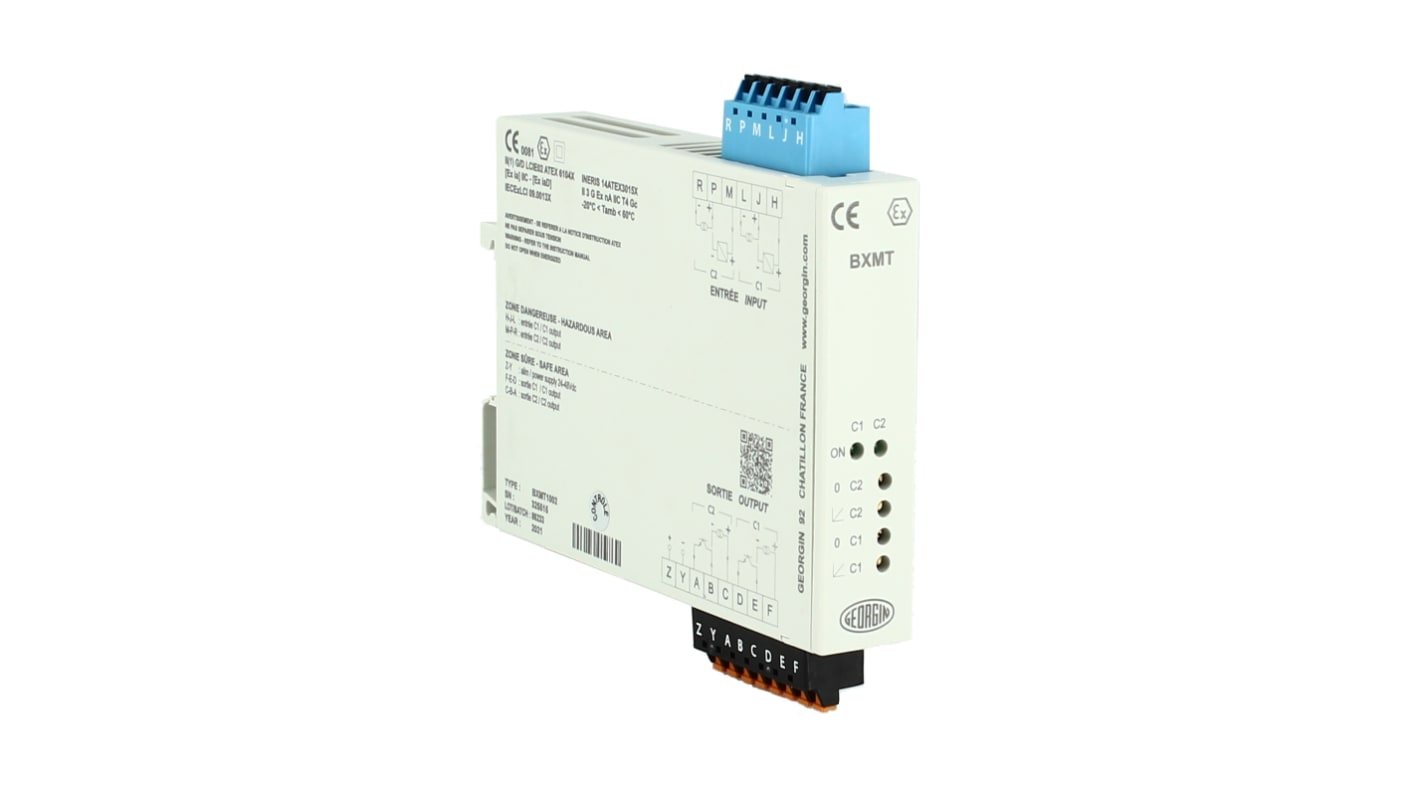

The galvanically insulated interface is an associated intrinsic safety item of equipment that is installed in a safe zone or in zone 2 in an IP 54 housing, thanks to the Ex nA protection mode. Its mission is to limit the level of energy that may appear in an electric circuit routed through a potentially explosive area, whatever the connection established upstream.
In addition to its energy-limiting function, its facilitates the use of signals in safe areas (e.g., relays), converts signals (e.g., 4/20 mA to 0-10V) or duplicates signals. Other functions are also available, such as the threshold relay or powering intrinsic safety.
Transmitter power supply
Input: 2 x 4/20mA
Output: 2 x 4/20mA
Option: without, clamp terminals
Power supply: 110/230 Vac
DIN rail mounting housing
Input: 2 x 4/20mA
Output: 2 x 4/20mA
Option: without, clamp terminals
Power supply: 110/230 Vac
DIN rail mounting housing
ATEX / IECEx informations:
EC type examination certificate LCIE 02 ATEX 6104X
IECEx LCI 09.0013X certificate
[Ex ia] IIC (-20 °C < Ta < 60 °C)
Group II (surface) - category (1) G/D
Installation in safe zone
Barrier for equipment installed in zone 0,1,2 et 20,21,22
See leaflet for a safe use
EC type examination certificate LCIE 02 ATEX 6104X
IECEx LCI 09.0013X certificate
[Ex ia] IIC (-20 °C < Ta < 60 °C)
Group II (surface) - category (1) G/D
Installation in safe zone
Barrier for equipment installed in zone 0,1,2 et 20,21,22
See leaflet for a safe use
Specifikationer
Attribute | Value |
---|---|
Number of Channels | 2 |
Barrier Type | Galvanic Barrier |
Maximum Voltage | 27,5V |
Hazardous Area Certification | ATEX |
Supply Voltage | 230V ac |
Maximum Current | 80,1mA |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -20°C |
Series | BXMT |
Operating Temperature Range | -20°C to 60°C |
