- RS-artikelnummer:
- 464-735
- Tillv. art.nr:
- NC4FDL1
- Tillverkare / varumärke:
- Neutrik
23 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
81,39 kr
(exkl. moms)
101,74 kr
(inkl. moms)
Enheter | Per unit |
1 - 14 | 81,39 kr |
15 - 49 | 76,91 kr |
50 - 99 | 74,39 kr |
100 + | 70,34 kr |
- RS-artikelnummer:
- 464-735
- Tillv. art.nr:
- NC4FDL1
- Tillverkare / varumärke:
- Neutrik
Lagstiftning och ursprungsland
- COO (Country of Origin):
- LI
Produktdetaljer

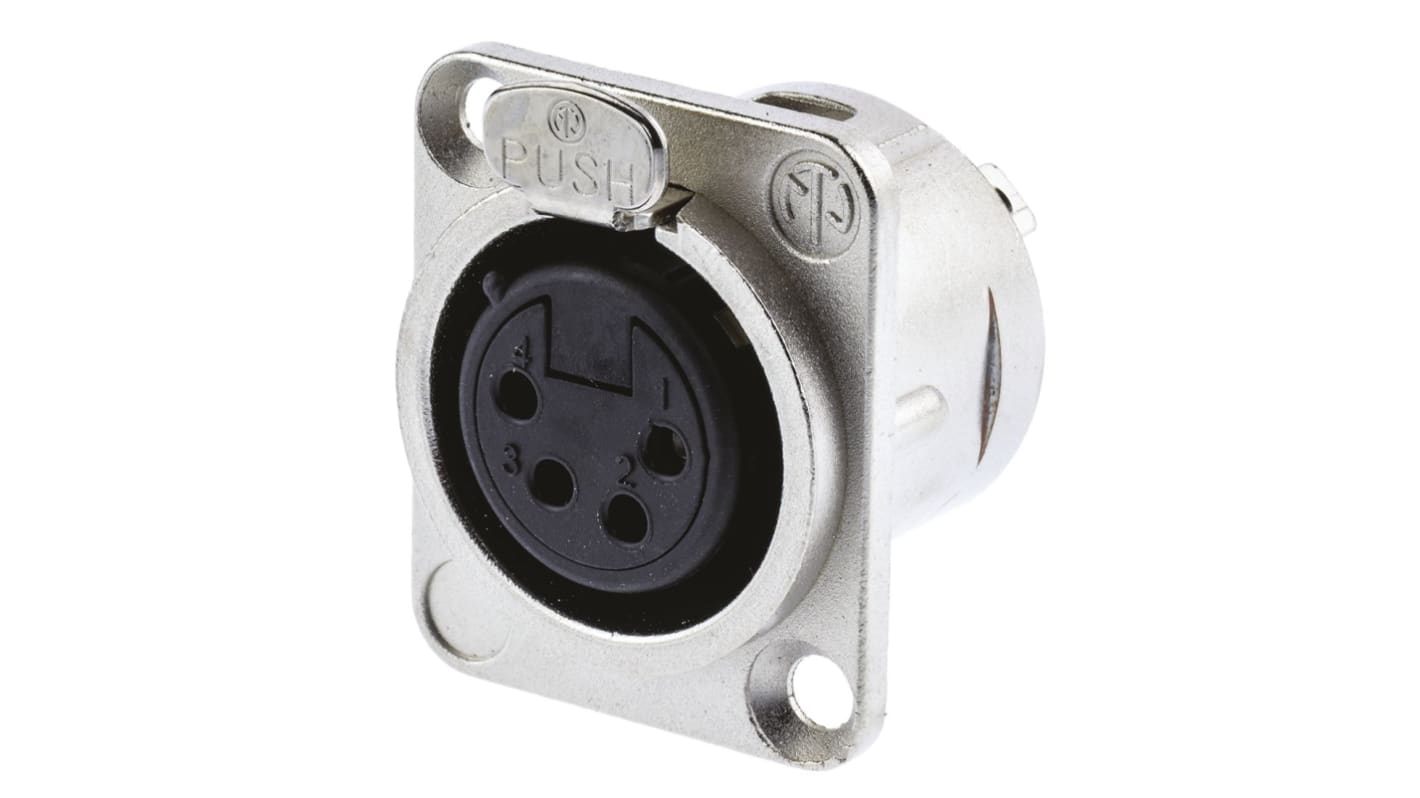

Neutrik XLR Connector
The Neutrik 4-contacts female XLR connector has a voltage rating of 50V and a current rating of 16A. This connector has a silver over nickel plating. This panel-mount XLR connector can be mounted in either the front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures reliable mating.
Features and Benefits
Delivers balanced microphone and line-level signals over long distances
Metal shell offers RF protection
Operating temperature ranges between -30°C and 80°C
Robust "D" metal shell
Solder cups for easy termination
Standardized D sized 24mm panel cut out
Metal shell offers RF protection
Operating temperature ranges between -30°C and 80°C
Robust "D" metal shell
Solder cups for easy termination
Standardized D sized 24mm panel cut out
Certifications
UL approved
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 4 |
Gender | Female |
Mounting Type | Panel Mount |
Body Orientation | Straight |
Contact Plating | Silver |
Housing Material | Zinc |
Termination Method | Solder |
Current Rating | 10A |
Voltage Rating | 50 V |
Contact Material | Brass |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
- RS-artikelnummer:
- 464-735
- Tillv. art.nr:
- NC4FDL1
- Tillverkare / varumärke:
- Neutrik
