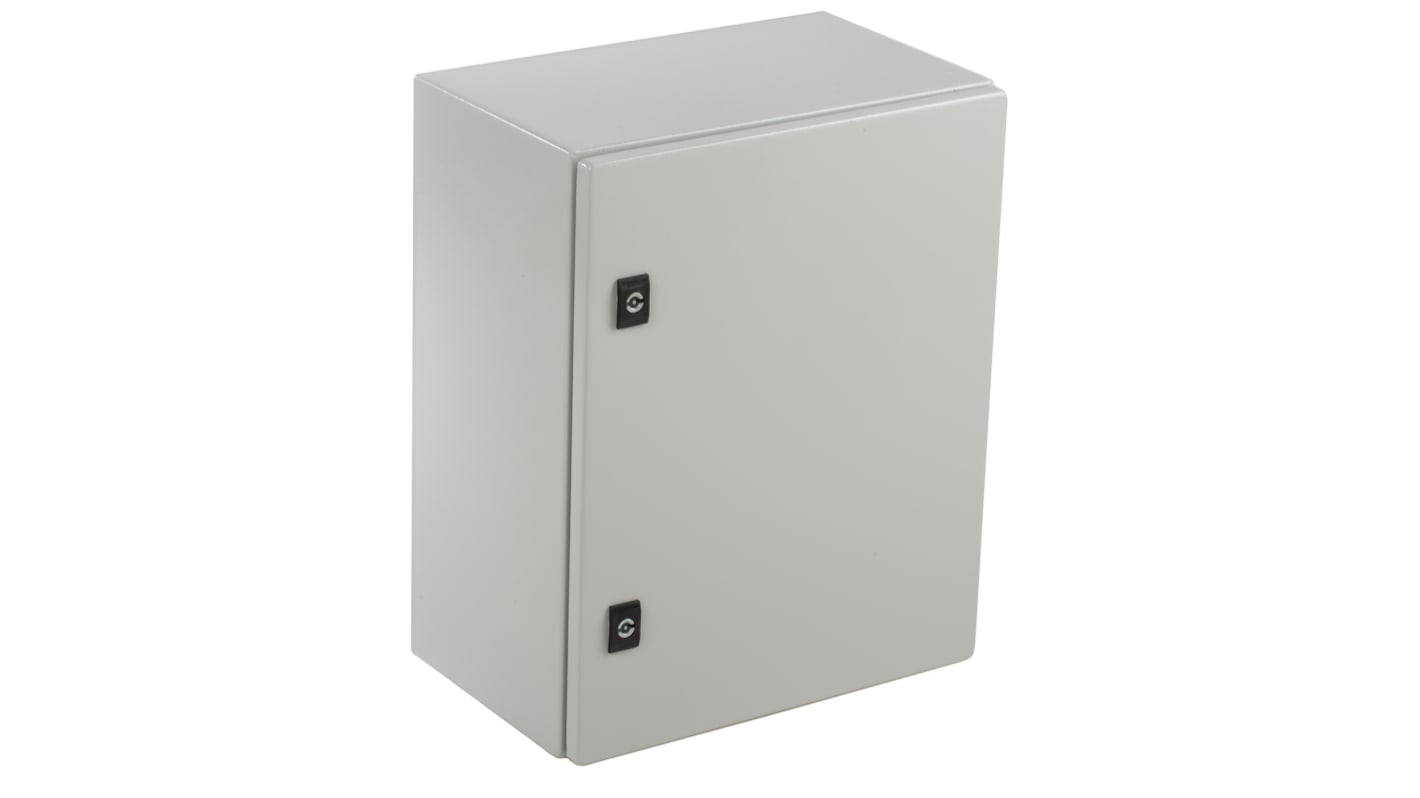

Schneider Electric Spacial CRN, Steel Wall Box, IP66, 250mm x 500 mm x 400 mm

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Schneider Electric Enclosures - IP66 Spacial CRN

The range of Spacial CRN enclosures from Schneider Electric have a steel monobloc construction with a punched steel door. The sides are made from a single folded section and the back is welded with a double profile to form a protected sealed area. The Spacial CRN enclosures are painted externally and internally with a textured light grey RAL 7035 epoxy-polyester resin.

Features & Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Easily reversible door, fixed with metal hinges allowing the door to open to 120°
• 4 wall fixing drill holes sealed with plastic plugs to ensure the degree of protection
• Welded earth studs on door and body Please Note - Wall brackets available seperately and
not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.

Applications

The Spacial CRN enclosures are designed for electrical distribution, industrial automation and industrial control.

NSYCRN54250 Wall Mounting Enclosure

What are the external dimensions?

NSYCRN54250 has external dimensions of 500 x 400 x 250 mm.

What is supplied?

The NSYCRN54250 enclosure is supplied with a 1 body, 1 plain door, 1 cable gland plate and 1 steel body.

Can the wall box be used outside?

The NSYCRN54250 has an Ingress Protection rating of IP66 so can be used inside or outside.

What type of lock does it have?

The enclosure has a 3 mm double-bar lock.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.

Specifikationer
Attribute Value
External Height 500 mm
External Width 400 mm
External Depth 250mm
Body Material Steel
Transparent Door No
IP Rating IP66
Chassis Plate No
Door Lock Type Double Bar
Gland Plate Yes
Colour Grey
RAL Code RAL 7035
Series Spacial CRN
Fixing Kit No
External Mounting Type Bracket
Internal Mounting Type Panel
44 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 263,55 kr
(exkl. moms)
1 579,44 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 263,55 kr
5 +
1 212,27 kr
