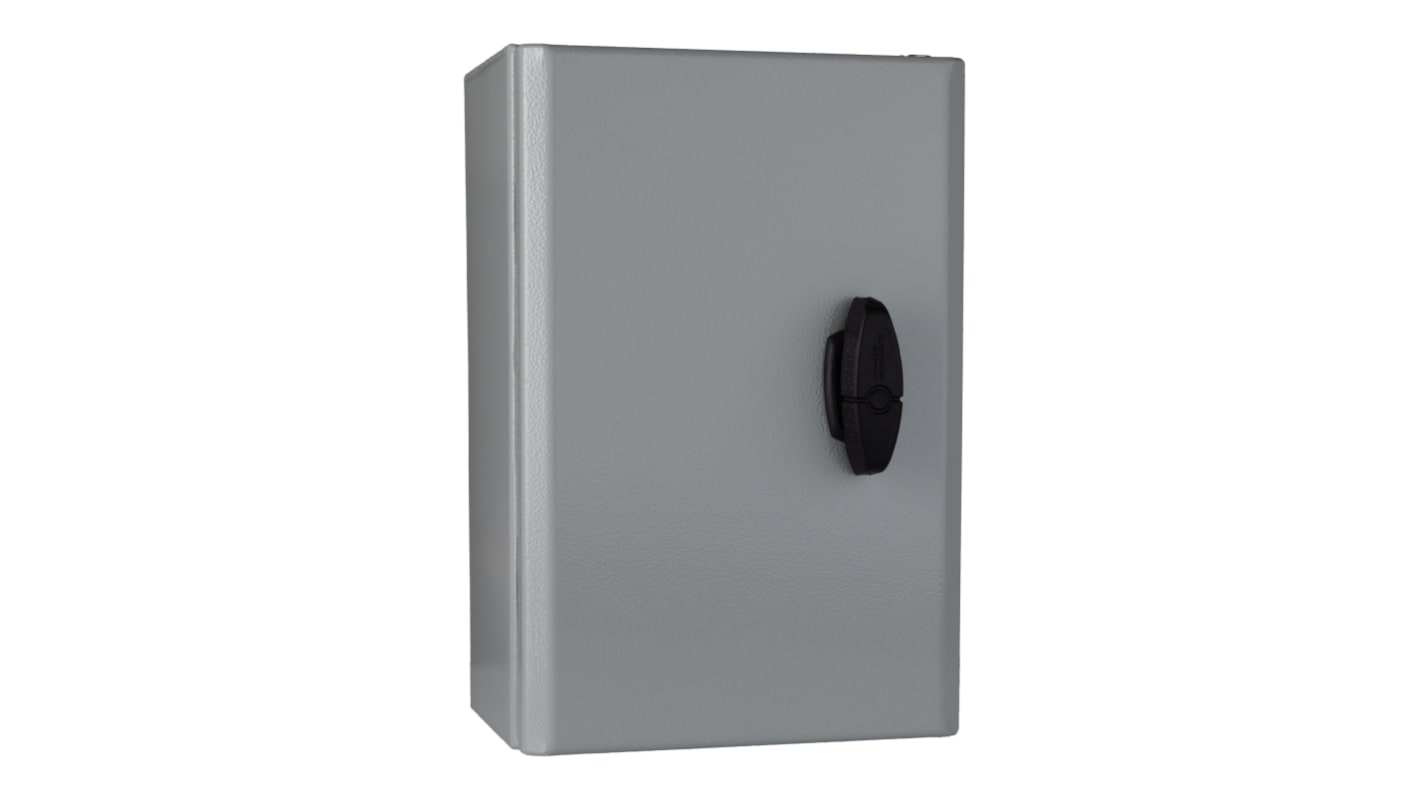

Schneider Electric Spacial S3D Series Steel Wall Box, IP66, ATEX, 300 mm x 200 mm x 150mm
- RS-artikelnummer:
- 701-8367
- Tillv. art.nr:
- NSYS3DEX3215
- Tillverkare / varumärke:
- Schneider Electric
6 I lager för avsändande samma dag
Pris (ex. moms) Varje
1 312,80 kr
(exkl. moms)
1 641,00 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 312,80 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 701-8367
- Tillv. art.nr:
- NSYS3DEX3215
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Spacial S3DEX ATEX Wall Box Enclosures.
From Schneider Electric this is the Spacial S3DEX steel wall mounting enclosures have a 1 piece folded and welded body with a double plate thickness gutter shaped front profile. The Wall box enclosures are certified for use in ATEX II2 or II3 classifications hazardous areas. This mean that the wall box enclosures can be wall mounted where rare explosion risks are probable.
Spacial S3DEX should be used with other ATEX certified electrical, pneumatic and hydraulic enclosure components. S3DEx wall box enclosures comply with explosion risks in environments charged with gas and dust plus designed for use in group II classified category 2.
What is ATEX?
- Two European directives, ATEX 99/92/CE and ATEX 94/9/CE, applicable to locations under potentially Explosive Atmospheres.
- Outside European Union, equivalent references are IEC standards 60079 and 61241.
- ATEX defines a potentially explosive atmosphere as a mix of flammable substances in the form of gas, vapour or dust (cloud deposit) which, in air under normal atmospheric conditions, can catch fire in the form of an explosion when exposed to an ignition source.
- Since July 1st, 2003, ATEX 94/9/CE makes compulsory certified equipment when intended for use in potentially explosive zones, gaseous or dusty atmospheres.
Features and Benefits.
- IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
- External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm
- ATEX certification means that the enclosures are suitable for using in a potentially explosive atmosphere
- Enclosures up to 600 mm high have one central lock with no locking bars
- Enclosures above 600 mm high have one central lock and a double locking bar, making three locking points in total
- Plain door with polyurethane seal
- External earthing by crimped blind nut (earth braid not supplied).
- A range of S3D Spacial wall box enclosures and sizes available.
- A range of Spacial SD3 enclosures accessories are available.
- The multi-purpose enclosures have a textured paint finish RAL 7035 light grey.
Spacial S3DEX Applications.
- Chemical and petrochemical.
- Offshore industry,
- Food industry.
- Flour mills.
- Grain drying areas.
- Petrol and gas stations.
- Wool and aluminium work environments.
Note
The lock is a quarter turn, cam with key.
Supplied with
4 shouldered M8x25 backstuds and 4 crimped blind nuts
NSYS3DEX3215 Spacial S3DEX Compact Wall Box Enclosure.
- Spacial S3DEX
- ATEX Certified.
- Compact.
- Without a mounting plate or gland plate.
- Wall mounting.
- For potential explosive atmospheres.
- Includes, door lock, and door, body with a clamped blind nut.
- Gutter shaped front rail double sheet thickness Single piece body
- 120° Reversible door opening.
- Double -bar lock.
- Grey (RAL 7035) colour with Epoxy -polyester powder finish.
- Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC.
- Protection IP66 enclosures with single door conforming to IEC 60529, IK10 conforming to IEC 62262.
Standards
EN 60079 -0: 2012, EN 60079 -7: 2007, EN 60079 -31: 2009.
Specifikationer
Attribute | Value |
---|---|
External Height | 300 mm |
External Width | 200 mm |
External Depth | 150mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | No |
Door Lock Type | Quarter Turn |
Gland Plate | Yes |
Colour | Grey |
Series | Spacial S3D |
RAL Code | RAL 7035 |
Hazardous Area Certification | ATEX |
External Mounting Type | Bracket |
Better World Verification | Green Premium |
Better World Product | Yes |
Special Features | 120° Door Opening |
Fixing Kit | Yes |
Internal Mounting Type | Panel |
IK Rating | IK10 |
