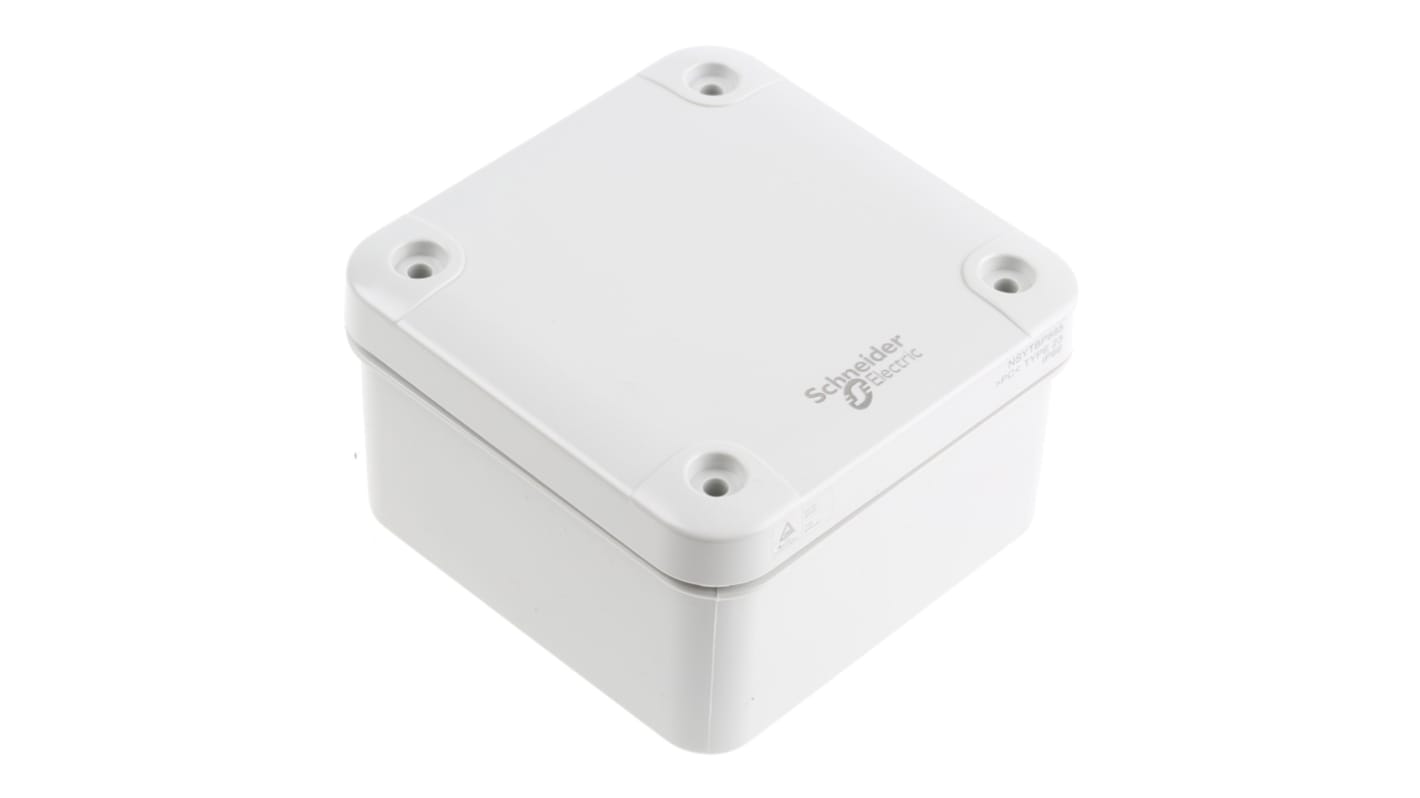

Schneider Electric Thalassa TBP Series Polycarbonate Wall Box, IP66, 89 mm x 89 mm x 54mm
- RS-artikelnummer:
- 689-9755
- Tillv. art.nr:
- NSYTBP885
- Tillverkare / varumärke:
- Schneider Electric
39 I lager för avsändande samma dag
100 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
116,47 kr
(exkl. moms)
145,59 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 116,47 kr |
| 5 + | 111,66 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 689-9755
- Tillv. art.nr:
- NSYTBP885
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer
Thalassa PC plastic industrial casing, IP66
The Thalassa TBP series from Schneider Electric is a range of multi-purpose polycarbonate wall mounting enclosures with an electrical insulation class II. The enclosures have a rounded design which helps increase the boxes robustness.
Features and Benefits
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps
Typical Applications
The range of Thalassa TBP enclosures are suitable for the protection of small size components that require little intervention or maintenance.
Standards
EN 50102, IEC 60695-2-11, IEC 536, IEC 60529, IEC 62208
NSYTBP885 Thalassa TBP Multi-Purpose Industrial Polycarbonate Wall Box Enclosure.
- Thalassa TBP industrial box enclosure.
- Wall mounted.
- One-piece moulded body.
- Low plain front cover.
- Fixing with Metal screws.
- Locked by Outside sealed area - flat screwdriver captive screw.
- Cover and captive screws are removeable.
- Made from Grey RAL 7035 Polycarbonate.
- Insulation class II.
- IP66 conforming to NEMA 4.4X.
- IK08 conforming to IEC 62262.
- Fire resistant to 960°.
Internal Dimensions.
- Height 80mm, Width 80 mm, Depth 65 mm.
What is included?
- 1 x Enclosure body, 1 x Enclosure Cover, 4 x Cover screws.
Standards.
IEC 62208, UL 508 A.
Certificate No.
DEMKO, SEMKO, TÜV, UL.
Specifikationer
Attribute | Value |
|---|---|
| External Height | 89 mm |
| External Width | 89 mm |
| External Depth | 54mm |
| Body Material | Polycarbonate |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Screw |
| Gland Plate | No |
| Colour | Grey |
| RAL Code | RAL 7035 |
| Series | Thalassa TBP |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| External Mounting Type | Knockouts |
| Special Features | Flame Resistant |
| Fixing Kit | No |
| Internal Mounting Type | Mounting Bosses |
| IK Rating | IK08 |
