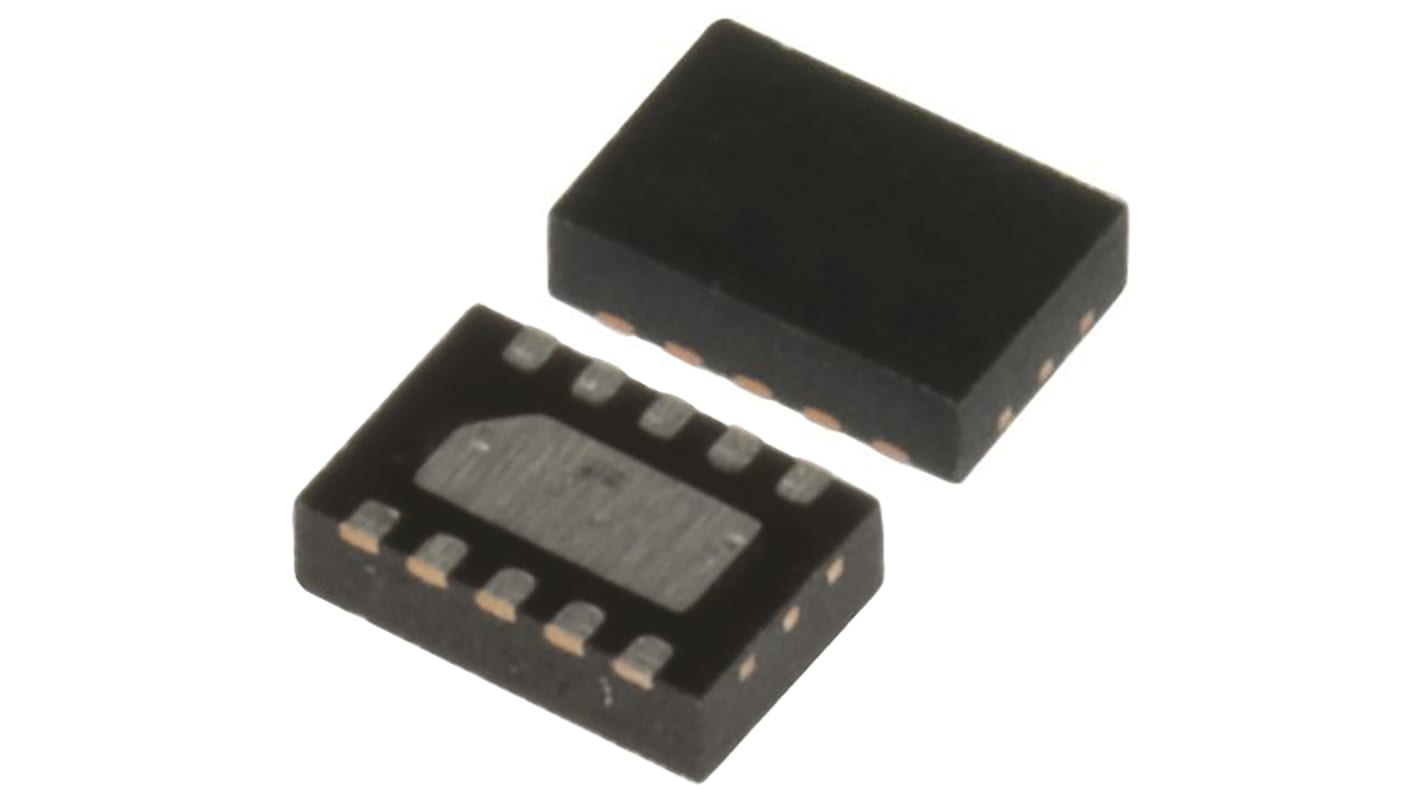

STMicroelectronics Voltage Supervisor 2.5V max. 12-Pin TDFN, STM6601CA2BDM6F
- RS-artikelnummer:
- 189-2049
- Tillv. art.nr:
- STM6601CA2BDM6F
- Tillverkare / varumärke:
- STMicroelectronics
2910 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
17,384 kr
(exkl. moms)
21,73 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 40 | 17,384 kr | 173,84 kr |
| 50 - 90 | 16,508 kr | 165,08 kr |
| 100 - 240 | 14,857 kr | 148,57 kr |
| 250 + | 14,769 kr | 147,69 kr |
- RS-artikelnummer:
- 189-2049
- Tillv. art.nr:
- STM6601CA2BDM6F
- Tillverkare / varumärke:
- STMicroelectronics
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Operating voltage 1.6 V to 5.5 V
Low standby current of 0.6 μA
Adjustable Smart Reset™ assertion delay time driven by external CSRD
Power-up duration determined primarily by push-button press (STM6600) or by fixed time period, tON_BLANK(STM6601)
Debounced Band SR inputs
PBand SRESD inputs withstand voltage up to ±15 kV (air discharge) ±8 kV (contact discharge)
Active high or active low enable output option (ENor EN) provides control of MOSFET, DC-DC converter, regulator, etc.
Secure startup, interrupt, Smart Reset™or power-down driven by push-button
Precise 1.5 V voltage reference with 1% accuracy
Industrial operating temperature –40 to +85 °C
Available in TDFN12 2 x 3 mm package
Low standby current of 0.6 μA
Adjustable Smart Reset™ assertion delay time driven by external CSRD
Power-up duration determined primarily by push-button press (STM6600) or by fixed time period, tON_BLANK(STM6601)
Debounced Band SR inputs
PBand SRESD inputs withstand voltage up to ±15 kV (air discharge) ±8 kV (contact discharge)
Active high or active low enable output option (ENor EN) provides control of MOSFET, DC-DC converter, regulator, etc.
Secure startup, interrupt, Smart Reset™or power-down driven by push-button
Precise 1.5 V voltage reference with 1% accuracy
Industrial operating temperature –40 to +85 °C
Available in TDFN12 2 x 3 mm package
Specifikationer
Attribute | Value |
|---|---|
| Number of Supervisors | 1 |
| Maximum Reset Threshold Voltage | 2.5V |
| Mounting Type | Surface Mount |
| Package Type | TDFN |
| Pin Count | 12 |
| Dimensions | 3 x 2 x 0.75mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 1.6 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
