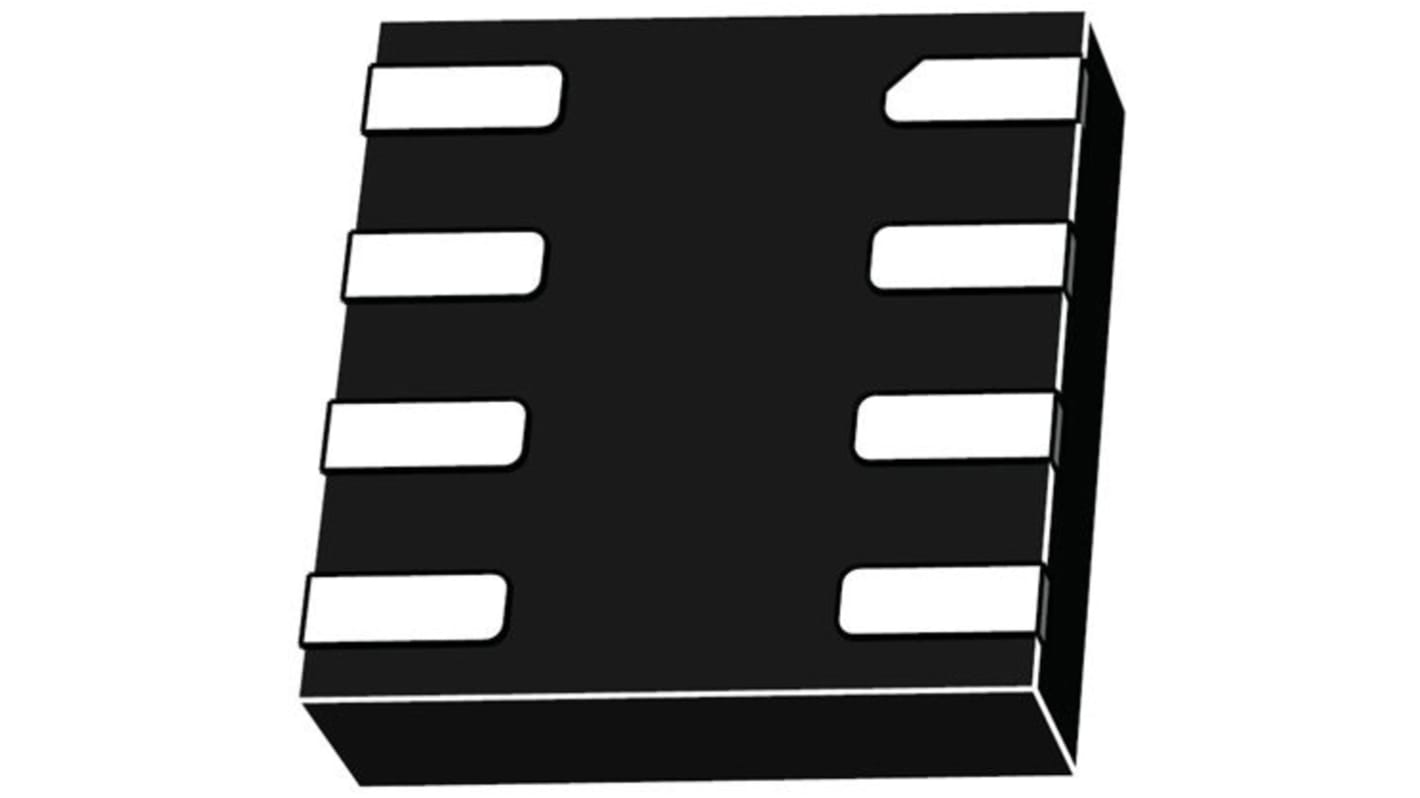

STMicroelectronics Reset Circuit 2.998V max. 8-Pin TDFN, STM6503SEAADG6F

  • RS-artikelnummer 165-5534
  • Tillv. art.nr STM6503SEAADG6F
  • Tillverkare / varumärke STMicroelectronics
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MY
Produktdetaljer

Smart Reset IC, STMicroelectronics

No need for a specific Reset button – an existing button or combination of buttons can be used
Customizable input delay time from 5 to 10 second, that ensures that inadvertent, short activation of the button(s) do not cause a system reset

Microprocessor Supply Voltage Supervisory & Reset Circuits

Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.

Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit

Specifikationer
Attribute Value
Voltage Supervisor Type Voltage Monitor
Number of Supervisors 1
Maximum Reset Threshold Voltage 2.998V
Minimum Reset Threshold Voltage 2.85V
Mounting Type Surface Mount
Package Type TDFN
Pin Count 8
Dimensions 2.1 x 2.1 x 0.75mm
Maximum Monitored Voltage 4.63V
Maximum Operating Supply Voltage 5.5 V
Minimum Monitored Voltage 1.58V
Minimum Operating Supply Voltage 1 V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Tillfälligt slut i lager – restorder för leverans 2021-01-25
Pris (ex. moms) Each (On a Reel of 3000)
2,984 kr
(exkl. moms)
3,73 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
3000 - 6000
2,984 kr
8 952,00 kr
9000 +
2,91 kr
8 730,00 kr
