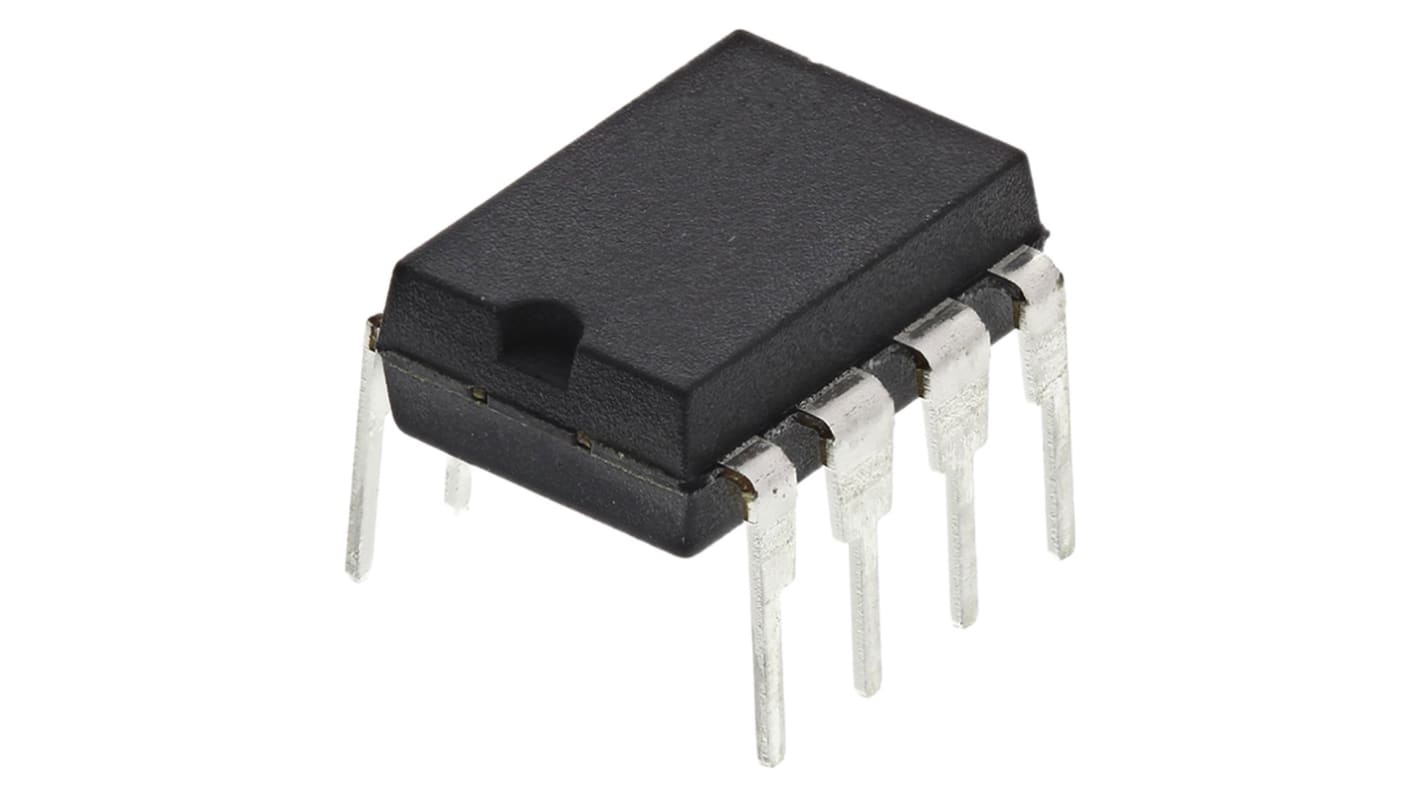

Texas Instruments TL7705AIP, Voltage Supervisor 4.6V max. 8-Pin, PDIP

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

MPU Supervisory & Reset Circuits, Texas Instruments, 3.0V to 13.5V

A range of microprocessor supply voltage supervisory and reset Circuits from Texas Instruments with fixed threshold voltage levels.

Microprocessor Supply Voltage Supervisory & Reset Circuits

Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.

Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit

Specifikationer
Attribute Value
Voltage Supervisor Type Supply
Number of Supervisors 1
Maximum Reset Threshold Voltage 4.6V
Minimum Reset Threshold Voltage 4.5V
Mounting Type Through Hole
Package Type PDIP
Pin Count 8
Dimensions 9.81 x 6.35 x 4.57mm
Height 4.57mm
Length 9.81mm
Maximum Monitored Voltage 10V
Maximum Operating Supply Voltage 18 V
Maximum Operating Temperature +85 °C
Minimum Monitored Voltage 0V
Minimum Operating Temperature -40 °C
Minimum Operating Supply Voltage 3.5 V
Width 6.35mm
1000 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tube of 50)
5,737 kr
(exkl. moms)
7,171 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
50 - 200
5,737 kr
286,85 kr
250 - 950
3,671 kr
183,55 kr
1000 - 2450
2,949 kr
147,45 kr
2500 +
2,725 kr
136,25 kr
