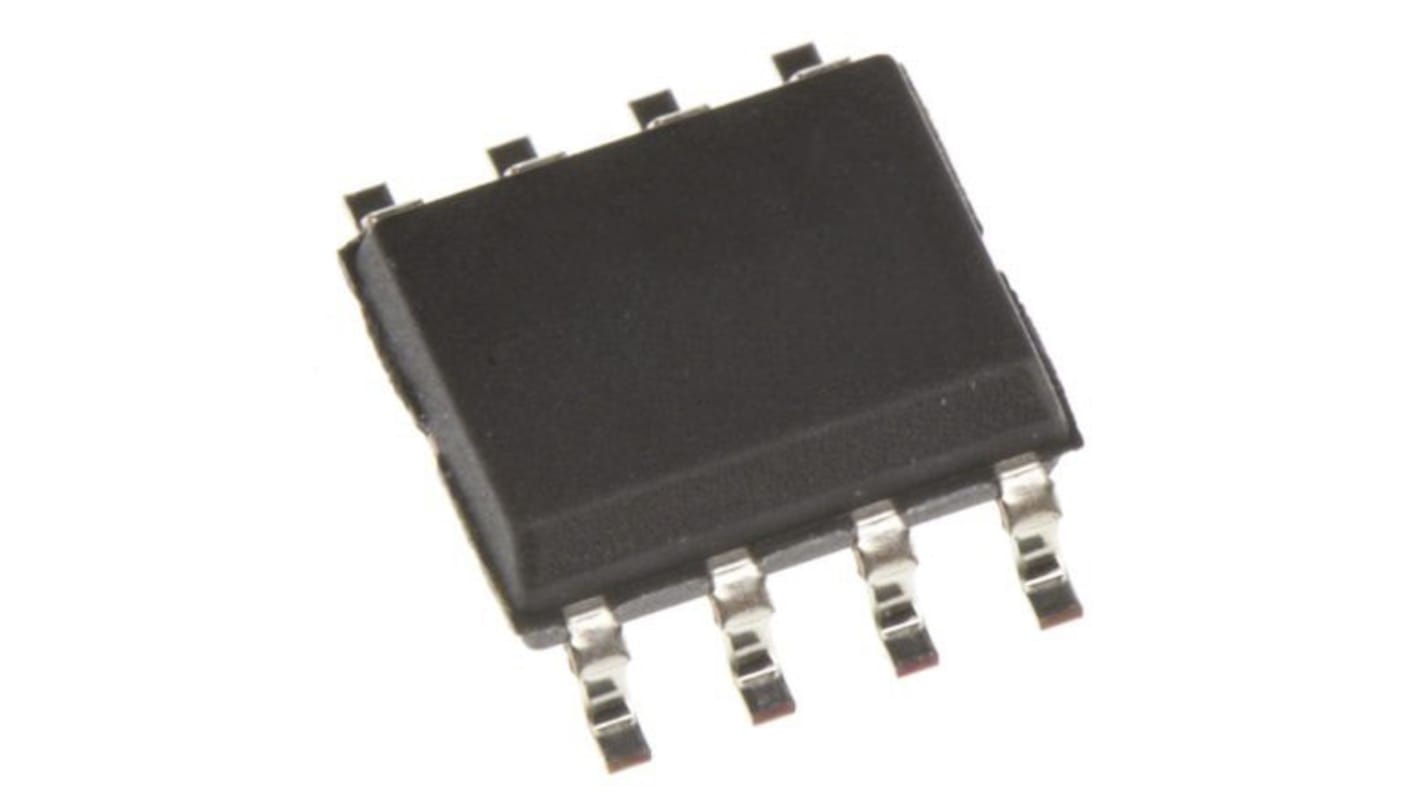

Maxim Integrated MAX664ESA+, 1 Linear Voltage, Voltage Regulator 40mA, 5 V, 1.3 → 16 V 8-Pin, SO

RS-artikelnummer:: 191-3404P
Tillv. art.nr:: MAX664ESA+
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated MAX664ESA+, 1 Linear Voltage, Voltage Regulator 40mA, 5 V, 1.3 → 16 V 8-Pin, SO

202 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje (levereras i ett rör)

62,435 kr

(exkl. moms)

78,044 kr

(inkl. moms)

Enheter	Per unit
10 - 24	62,435 kr
26 - 98	59,11 kr
100 - 248	48,52 kr
250 +	43,475 kr

RS-artikelnummer:: 191-3404P
Tillv. art.nr:: MAX664ESA+
Tillverkare / varumärke:: Maxim Integrated

Datablad

MAX664ESA+ - Datasheet

Lagstiftning och ursprungsland

Produktdetaljer

Dual Mode Operation: Fixed +5V or Adjustable from +1.3V to +16V
Low Power CMOS: 12uA Max Quiescent Current
40mA Output Current, with Current Limiting
Pin-Compatible Upgrade of ICL7663 and ICL7664
+2V to +16.5V Operating Range
Low Battery Detector (MAX666)
No Output Over-Shoot on Power Up
Applications
Handheld Instruments
LCD Display Systems Pagers
Remote Data Acquisition and Telemetry
Radio Controlled Devices
Long-life Battery Powered Systems

Specifikationer

Attribute	Value
Maximum Output Current	40mA
Regulator Type	Linear Voltage
Number of Outputs	1
Output Voltage	5 V, 1.3 → 16 V
Line Regulation	0.35 %/V
Load Regulation	7 Ω
Mounting Type	Surface Mount
Package Type	SO
Quiescent Current	20µA
Pin Count	8
Output Type	Adjustable, Fixed
Dimensions	5 x 4 x 1.5mm
Minimum Operating Temperature	-40 °C
Minimum Input Voltage	2.2 V
Height	1.5mm
Maximum Input Voltage	16.5 V
Maximum Operating Temperature	+85 °C
Length	5mm
Width	4mm

RS-artikelnummer:: 191-3404P
Tillv. art.nr:: MAX664ESA+
Tillverkare / varumärke:: Maxim Integrated

MAX664ESA+ - Datasheet
