- RS-artikelnummer:
- 144-7546
- Tillv. art.nr:
- 173950378
- Tillverkare / varumärke:
- Wurth Elektronik
42 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 42)
53,692 kr
(exkl. moms)
67,115 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
42 - 42 | 53,692 kr | 2 255,064 kr |
84 - 168 | 51,543 kr | 2 164,806 kr |
210 + | 49,933 kr | 2 097,186 kr |
- RS-artikelnummer:
- 144-7546
- Tillv. art.nr:
- 173950378
- Tillverkare / varumärke:
- Wurth Elektronik
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

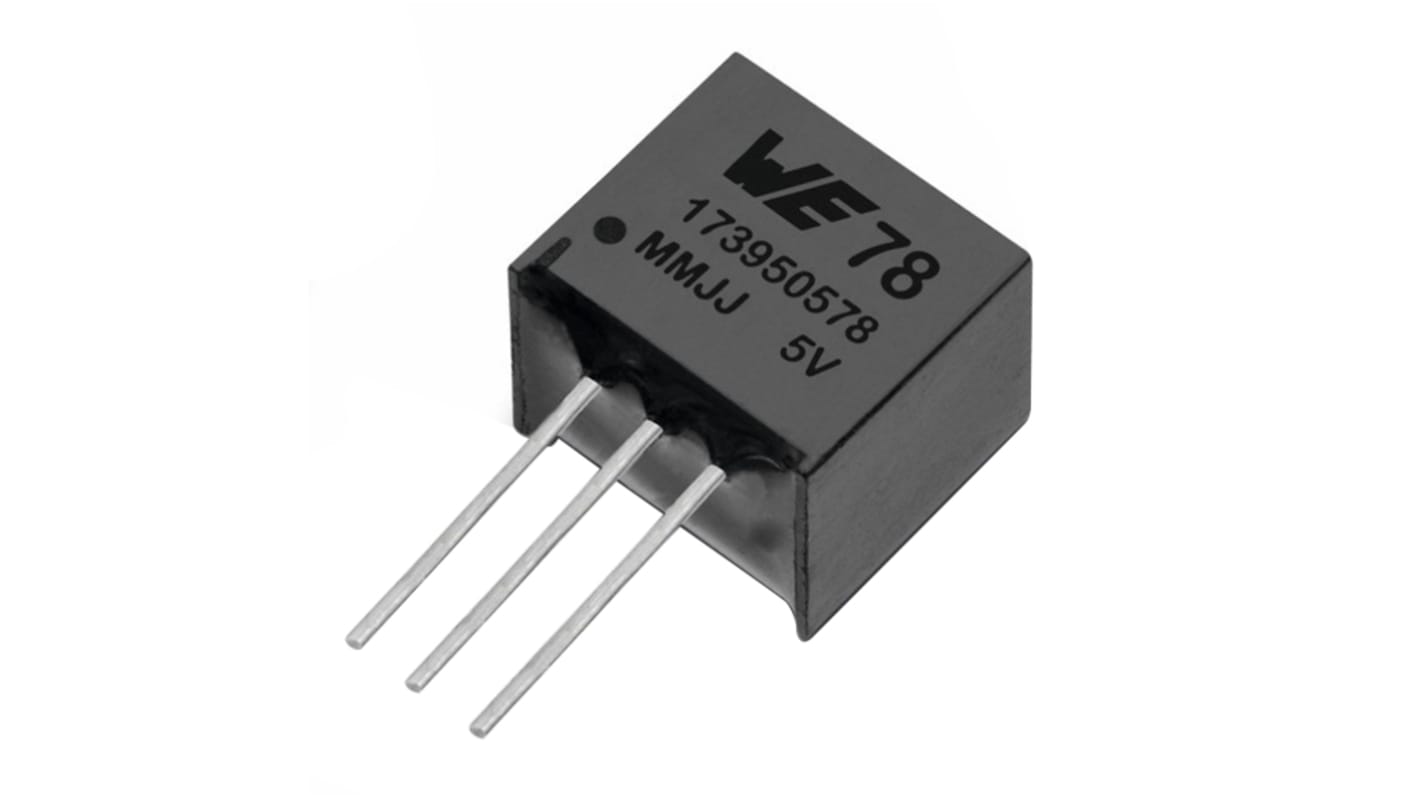

The FDSM series of the MagI3C power module family is a fixed output voltage, fully integrated dc/dc power supply. The module integrates the switching power stage, control circuitry and inductor all in one package. The module requires no external components for operation. Input and output capacitors are integrated. Design effort and complexity is reduced to a minimum.The FDSM ensures fast time to market and low development costs. It is pin compatible with the common 78xx linear regulator series. The high efficiency reduces the power dissipation and in many cases heatsinks and assembly parts are no longer necessary.
Peak efficiency up to 95%
6V to 28V input voltage range
3.3V or 5V fixed output voltage
500mA output current
Low output voltage ripple (typ. 10mV)
6V to 28V input voltage range
3.3V or 5V fixed output voltage
500mA output current
Low output voltage ripple (typ. 10mV)
Specifikationer
Attribute | Value |
---|---|
Maximum Output Current | 500mA |
Regulator Type | Linear Voltage |
Number of Outputs | 1 |
Output Voltage | 3.3 V |
Line Regulation | 0.5 % |
Accuracy | ±2% |
Load Regulation | 1 % |
Mounting Type | Through Hole |
Polarity | Positive |
Package Type | SIP |
Quiescent Current | 1.5mA |
Pin Count | 3 |
Reference Voltage | 0.8V |
Output Type | Fixed |
Power Rating | 5W |
Dimensions | 11.6 x 8.5 x 10.5mm |
Height | 10.5mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Minimum Input Voltage | 6 V |
Maximum Input Voltage | 28 V |
Length | 11.6mm |
Width | 8.5mm |
