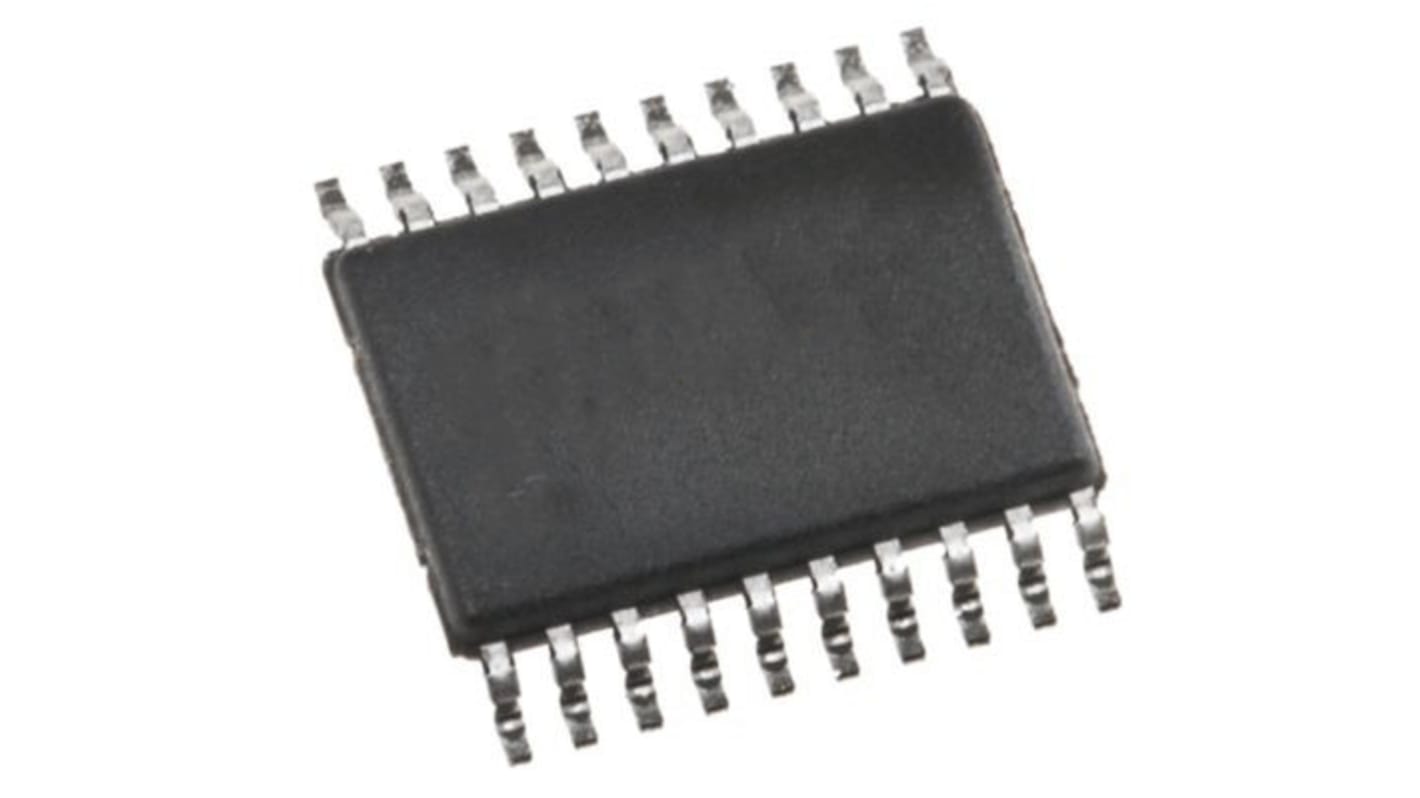

Maxim Integrated MAX6921AWI+ VFD Display Seria I/F 3 → 5.5 (Logic) V, 8 → 76 (Tube) V

RS-artikelnummer:: 191-4927
Tillv. art.nr:: MAX6921AWI+
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated MAX6921AWI+ VFD Display Seria I/F 3 → 5.5 (Logic) V, 8 → 76 (Tube) V

64 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 2)

86,555 kr

(exkl. moms)

108,194 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
2 - 8	86,555 kr	173,11 kr
10 - 24	78,295 kr	156,59 kr
26 - 98	74,58 kr	149,16 kr
100 - 248	61,715 kr	123,43 kr
250 +	60,605 kr	121,21 kr

RS-artikelnummer:: 191-4927
Tillv. art.nr:: MAX6921AWI+
Tillverkare / varumärke:: Maxim Integrated

Datablad

MAX6921AWI+ - Datasheet

Lagstiftning och ursprungsland

Produktdetaljer

5MHz Industry-Standard 4-Wire Serial Interface
3V to 5.5V Logic Supply Range
8V to 76V Grid/Anode Supply Range
-11V to 0V Filament Bias Supply (MAX6931 Only)
Push-Pull CMOS High-Voltage Outputs
Outputs can Source 40mA, Sink 4mA Continuously
Outputs can Source 75mA Repetitive Pulses
Outputs can be Paralleled for Higher Current Drive
Any Output can be Used as a Grid or an Anode Driver
Blank Input Simplifies PWM Intensity Control
Small 28-Pin TSSOP Package
-40°C to +125°C Temperature Range
Applications
Automotive
Avionics
Gaming Machines
Industrial Control
Industrial Weighing
Instrumentation
Security
Telecom
VFD Modules
White Goods

Specifikationer

Attribute	Value
Interface Type	Seria
External Dimensions	18.1 x 7.6 x 2.35mm
External Depth	7.6mm
External Height	2.4mm
External Width	18.1mm
Supply Current	1000 (Logic) μA, 6.9 (Tube) mA
Supply Voltage Range	3 → 5.5 (Logic) V, 8 → 76 (Tube) V
Minimum Supply Voltage	3 (Logic) V, 8 (Tube) V
Maximum Supply Voltage	5.5 (Logic) V, 76 (Tube) V
Power Dissipation	1000mW
