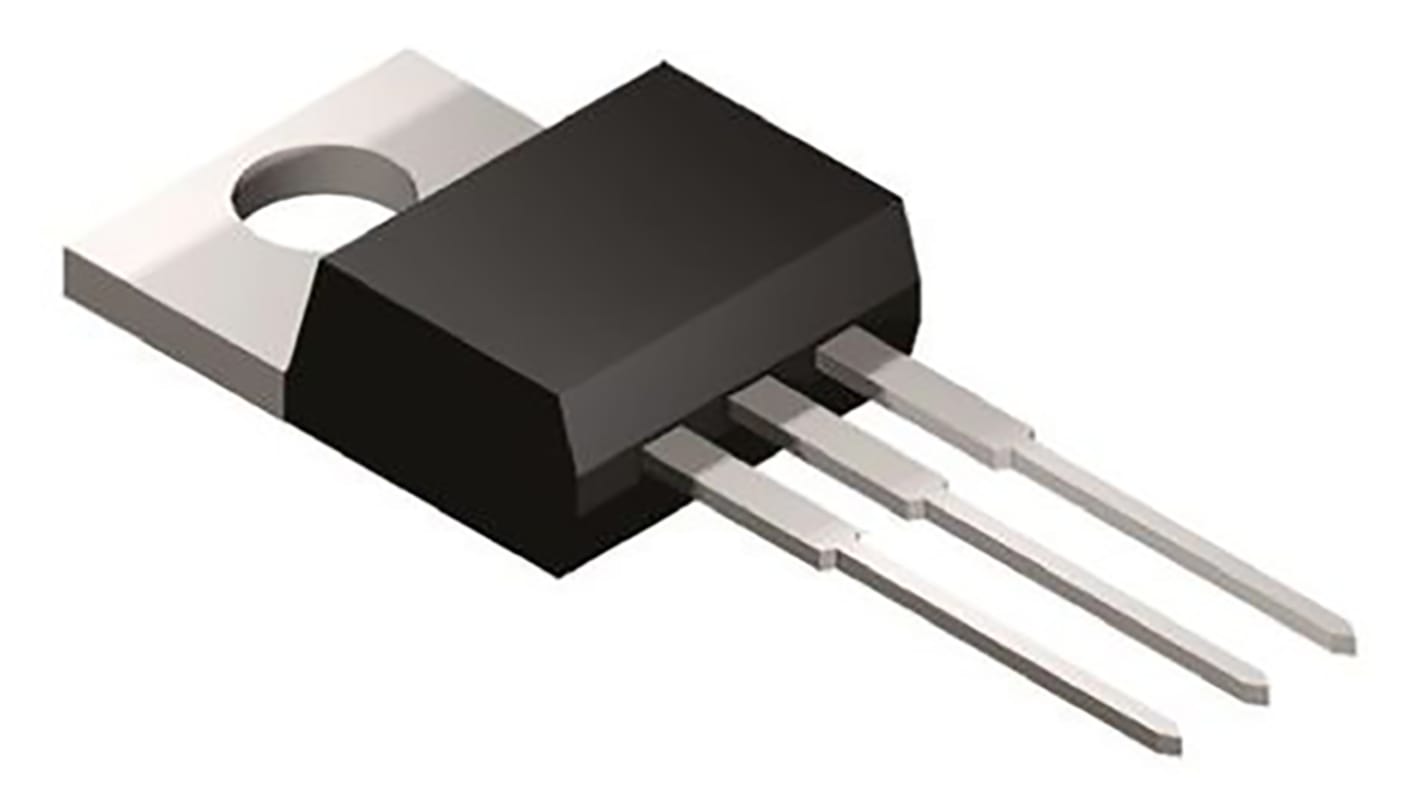

STMicroelectronics Through Hole, 3-pin, TRIAC, 800V, Gate Trigger 1.3V 600V
- RS-artikelnummer:
- 714-2586
- Tillv. art.nr:
- BTA12-600SWRG
- Tillverkare / varumärke:
- STMicroelectronics
10 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
17,636 kr
(exkl. moms)
22,045 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 17,636 kr | 88,18 kr |
| 25 - 45 | 16,564 kr | 82,82 kr |
| 50 - 120 | 15,644 kr | 78,22 kr |
| 125 - 245 | 14,812 kr | 74,06 kr |
| 250 + | 14,09 kr | 70,45 kr |
- RS-artikelnummer:
- 714-2586
- Tillv. art.nr:
- BTA12-600SWRG
- Tillverkare / varumärke:
- STMicroelectronics
Lagstiftning och ursprungsland
Produktdetaljer
TRIAC, 8A to 12A, STMicroelectronics
TRIACs, STMicroelectronics
Specifikationer
Attribute | Value |
|---|---|
| Rated Average On-State Current | 12A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 126A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 15mA |
| Dimensions | 10.4 x 4.6 x 15.9mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 15.9mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.55V |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 5mA |
