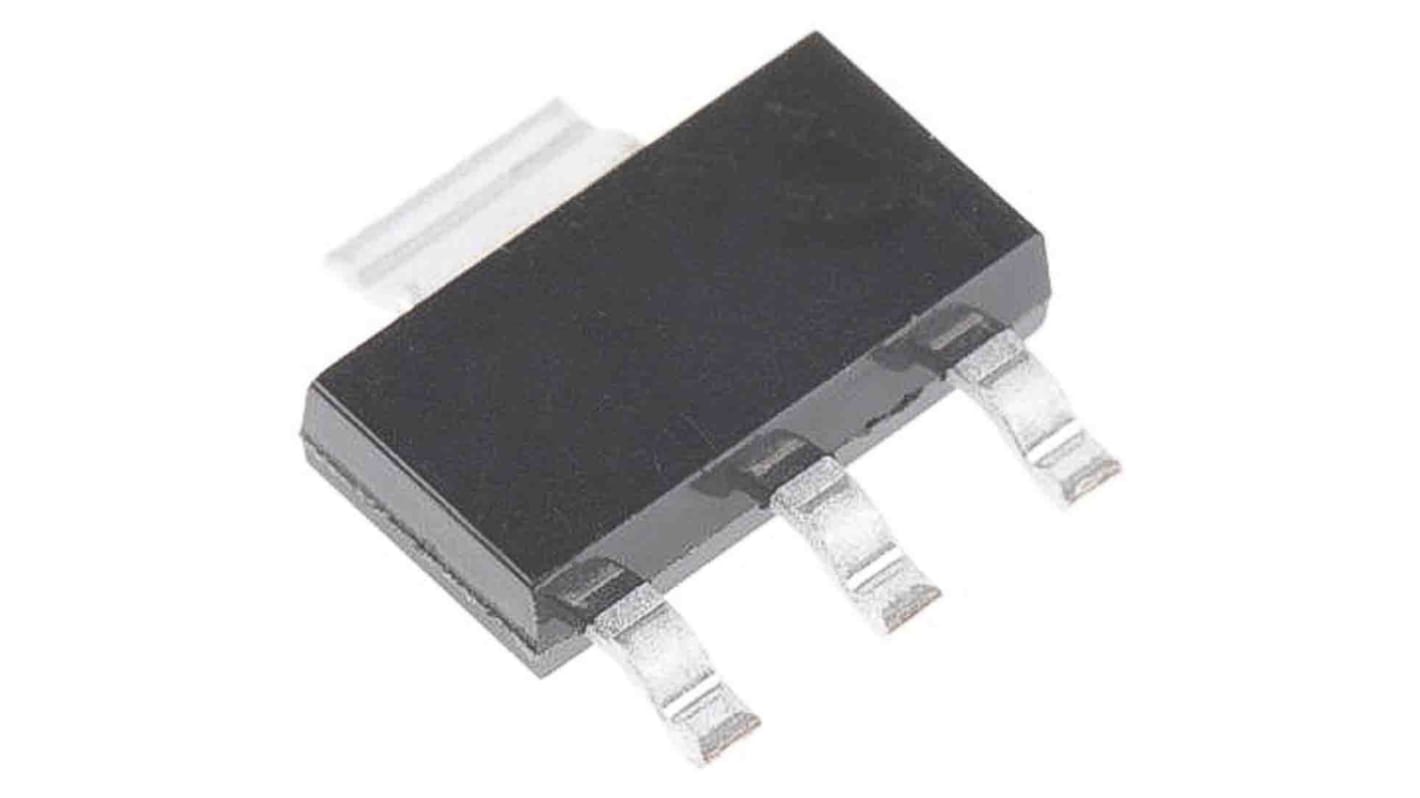

STMicroelectronics Surface Mount, 4-pin, TRIAC, 800V
- RS-artikelnummer:
- 188-8307
- Tillv. art.nr:
- Z0103NN5AA4
- Tillverkare / varumärke:
- STMicroelectronics
2000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1000)
2,084 kr
(exkl. moms)
2,605 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 1000 - 1000 | 2,084 kr | 2 084,00 kr |
| 2000 - 4000 | 1,949 kr | 1 949,00 kr |
| 5000 - 9000 | 1,755 kr | 1 755,00 kr |
| 10000 + | 1,688 kr | 1 688,00 kr |
- RS-artikelnummer:
- 188-8307
- Tillv. art.nr:
- Z0103NN5AA4
- Tillverkare / varumärke:
- STMicroelectronics
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Z01 series is suitable for general purpose AC switching applications. These devices are typically used in applications such as home appliances (electrovalve, pump, door lock, small lamp control), fan speed controllers,..
Different gate current sensitivities are available, allowing optimized performance when driven directly through microcontroller.
Different gate current sensitivities are available, allowing optimized performance when driven directly through microcontroller.
On-state rms current, IT(RMS) 1 A
Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V
Triggering gate current, IGT (Q1) 3 to 25 mA
Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V
Triggering gate current, IGT (Q1) 3 to 25 mA
Specifikationer
Attribute | Value |
|---|---|
| Rated Average On-State Current | 1A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 25mA |
| Surge Current Rating | 8.5A |
| Pin Count | 4 |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Holding Current | 7mA |
| Dimensions | 6.7 x 3.7 x 1.8mm |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.8mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
