Vishay Through Hole, 6-pin, TRIAC, 6V, Gate Trigger 22V 600V
- RS-artikelnummer:
- 180-7056
- Tillv. art.nr:
- VO3062
- Tillverkare / varumärke:
- Vishay
Tillfälligt slut i lager – restorder för leverans 2025-12-31
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
9,455 kr
(exkl. moms)
11,819 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 50 | 9,455 kr | 472,75 kr |
| 100 - 200 | 8,038 kr | 401,90 kr |
| 250 + | 7,563 kr | 378,15 kr |
- RS-artikelnummer:
- 180-7056
- Tillv. art.nr:
- VO3062
- Tillverkare / varumärke:
- Vishay
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
The VO3062 and VO3063 triac driver family consists of a GaAs infrared LED optically coupled to a monolithic photosensitive zero crossing triac detector chip. The 600 V blocking voltage permits control of off-line voltages up to 240 VAC, with a safety factor of more than two, and is sufficient for as much as 380V.
1500 V/μs dV/dt minimum
600 V blocking voltage
100 mA on-state current
600 V blocking voltage
100 mA on-state current
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |

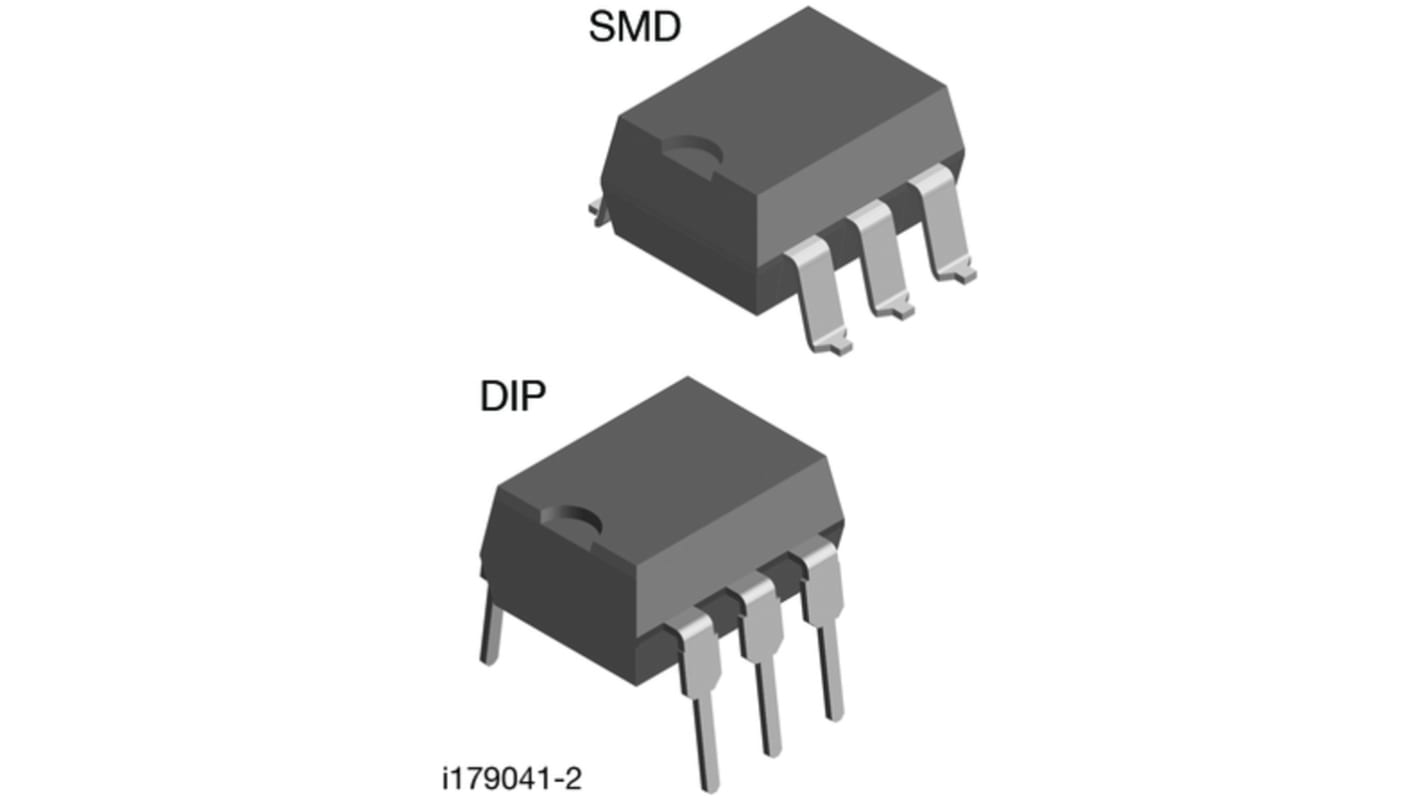

| Package Type | DIP |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 6V |
| Surge Current Rating | 1 (Non-Reptitive)A |
| Pin Count | 6 |
| Maximum Gate Trigger Voltage | 22V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Dimensions | 9 x 6.4 x 3.5mm |
| Length | 9mm |
| Width | 6.4mm |
| Height | 3.5mm |
| Repetitive Peak Off-State Current | 500nA |
| Peak On-State Voltage | 3V |
| Maximum Operating Temperature | +100 °C |
| Minimum Operating Temperature | -55 °C |
