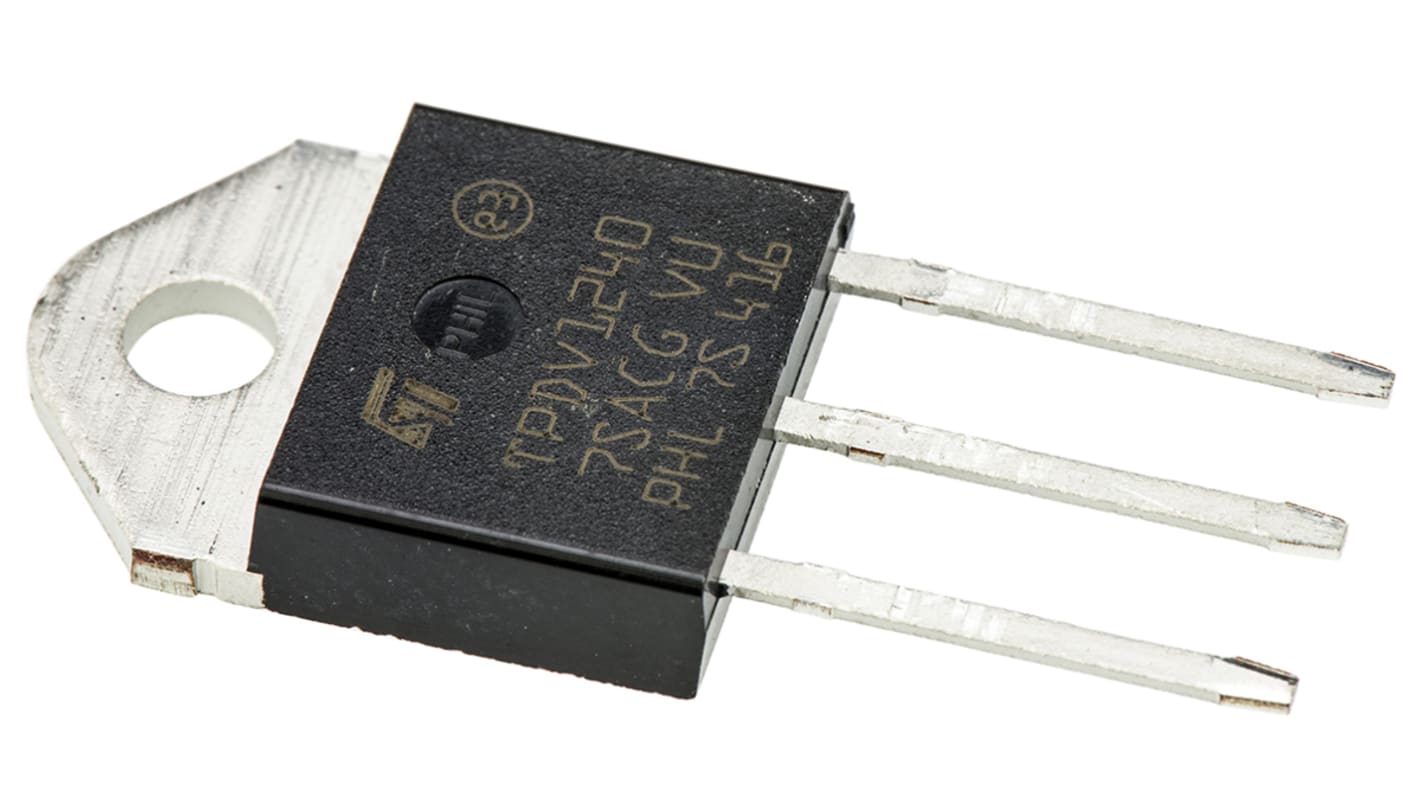

STMicroelectronics Through Hole, 3-pin, TRIAC, 1200V, Gate Trigger 1.5V 1200V
- RS-artikelnummer:
- 168-6659
- Tillv. art.nr:
- TPDV1240RG
- Tillverkare / varumärke:
- STMicroelectronics
450 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 30)
132,235 kr
(exkl. moms)
165,294 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 30 + | 132,235 kr | 3 967,05 kr |
- RS-artikelnummer:
- 168-6659
- Tillv. art.nr:
- TPDV1240RG
- Tillverkare / varumärke:
- STMicroelectronics
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
TRIAC, 25A to 40A, STMicroelectronics
TRIACs, STMicroelectronics
Specifikationer
Attribute | Value |
|---|---|
| Rated Average On-State Current | 40A |
| Mounting Type | Through Hole |
| Package Type | TOP3 |
| Maximum Gate Trigger Current | 200mA |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 590A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Dimensions | 15.5 x 4.6 x 12.85mm |
| Length | 15.5mm |
| Width | 4.6mm |
| Height | 12.85mm |
| Repetitive Peak Off-State Current | 0.02mA |
| Peak On-State Voltage | 1.8V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
