STMicroelectronics Surface Mount, 3-pin, TRIAC, 800V, Gate Trigger 1V 800V
- RS-artikelnummer:
- 165-5565
- Tillv. art.nr:
- ACST410-8BTR
- Tillverkare / varumärke:
- STMicroelectronics
Tillfälligt slut i lager – restorder för leverans 2025-04-04
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 2500)
3,743 kr
(exkl. moms)
4,679 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 2500 + | 3,743 kr | 9 357,50 kr |
- RS-artikelnummer:
- 165-5565
- Tillv. art.nr:
- ACST410-8BTR
- Tillverkare / varumärke:
- STMicroelectronics
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

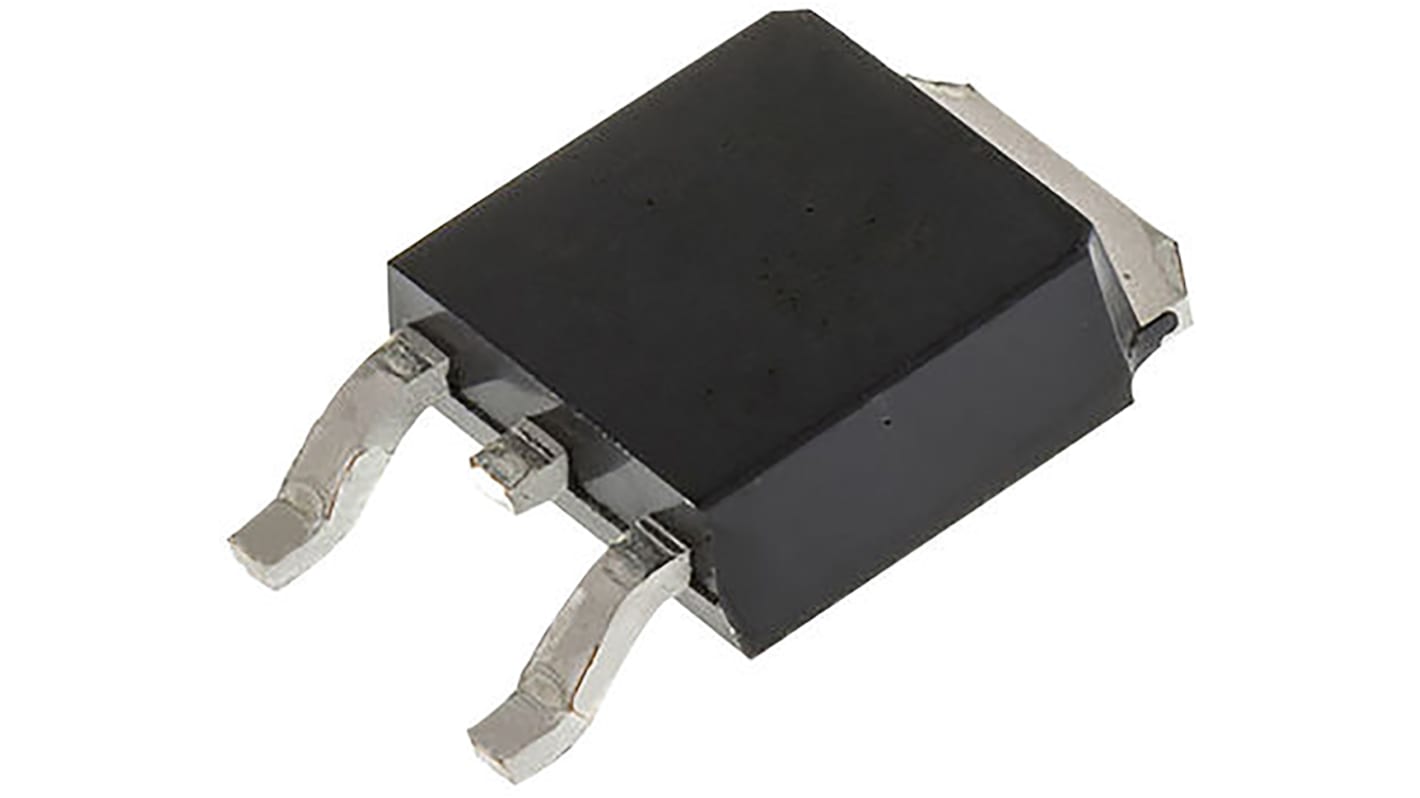

Over-Voltage Protected AC Switch TRIAC, ACST Series, STMicroelectronics
The ACST Series are static-switch semiconductors for Alternating Current (AC). They are simple-to-drive, sensitive-gate devices with highly inductive load switch-off capability. They embed a Triac structure with a high voltage clamping device to absorb the inductive turn off energy and withstand line transients.
TRIACs, STMicroelectronics
Specifikationer
Attribute | Value |
|---|---|
| Rated Average On-State Current | 4A |
| Mounting Type | Surface Mount |
| Package Type | DPAK (TO-252) |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 32A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1V |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Holding Current | 20mA |
| Dimensions | 6.73 x 6.22 x 2.4mm |
| Length | 6.73mm |
| Width | 6.22mm |
| Height | 2.4mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.7V |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 0.5mA |
