Renesas Electronics Through Hole, 3-pin, TRIAC, Gate Trigger 1.5V 600V
- RS-artikelnummer:
- 124-3663
- Tillv. art.nr:
- BCR8PM-12LG1A8#B00
- Tillverkare / varumärke:
- Renesas Electronics
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
9,646 kr
(exkl. moms)
12,058 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 5 | 9,646 kr | 48,23 kr |
| 10 - 20 | 8,672 kr | 43,36 kr |
| 25 - 120 | 7,878 kr | 39,39 kr |
| 125 - 245 | 7,222 kr | 36,11 kr |
| 250 + | 6,688 kr | 33,44 kr |
- RS-artikelnummer:
- 124-3663
- Tillv. art.nr:
- BCR8PM-12LG1A8#B00
- Tillverkare / varumärke:
- Renesas Electronics
Lagstiftning och ursprungsland
Produktdetaljer

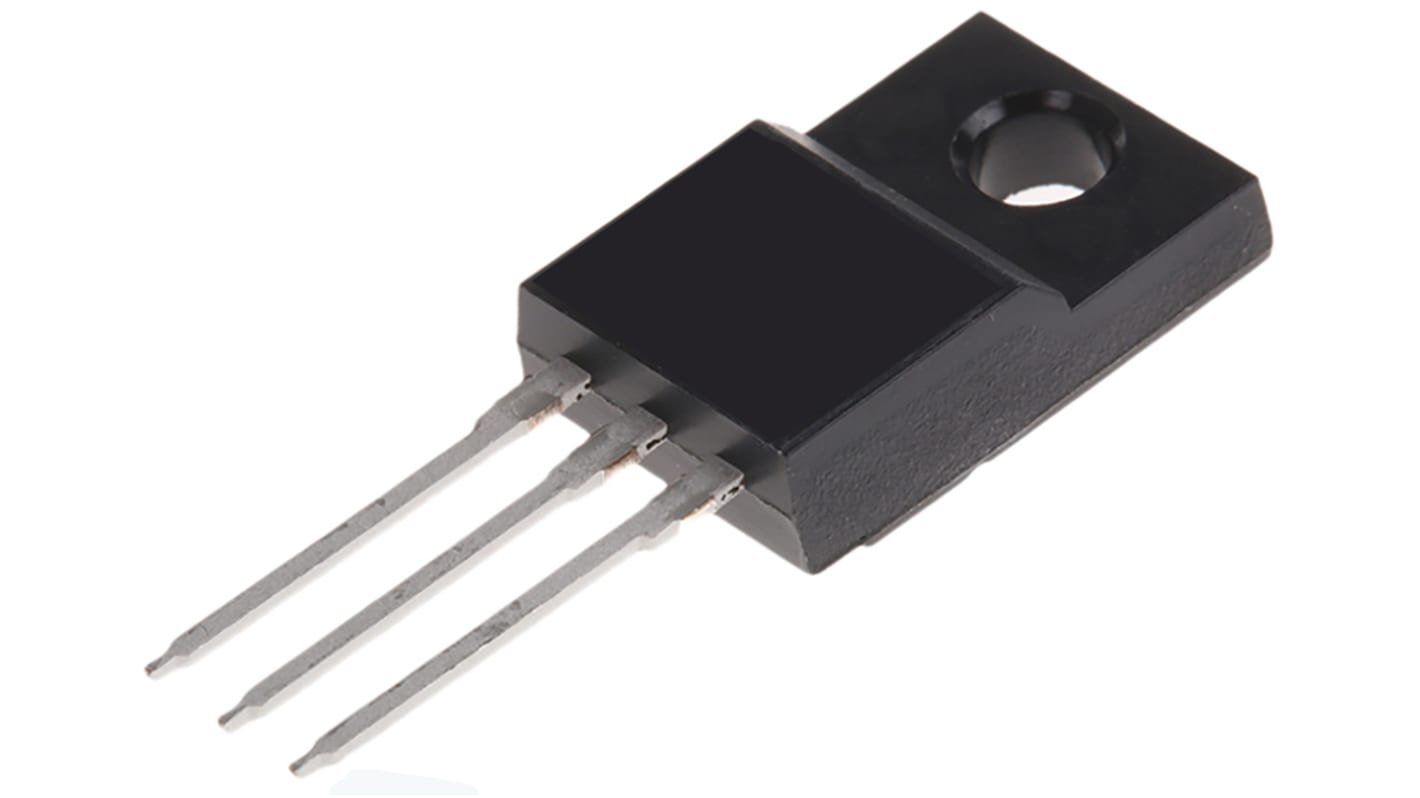

TRIAC, Renesas Electronics
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
Specifikationer
Attribute | Value |
|---|---|
| Rated Average On-State Current | 8A |
| Mounting Type | Through Hole |
| Package Type | TO-220F |
| Maximum Gate Trigger Current | 30mA |
| Surge Current Rating | 80A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Dimensions | 10.5 x 4.5 x 17mm |
| Length | 10.5mm |
| Width | 4.5mm |
| Height | 17mm |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 2mA |
| Peak On-State Voltage | 1.5V |
| Maximum Operating Temperature | +150 °C |
