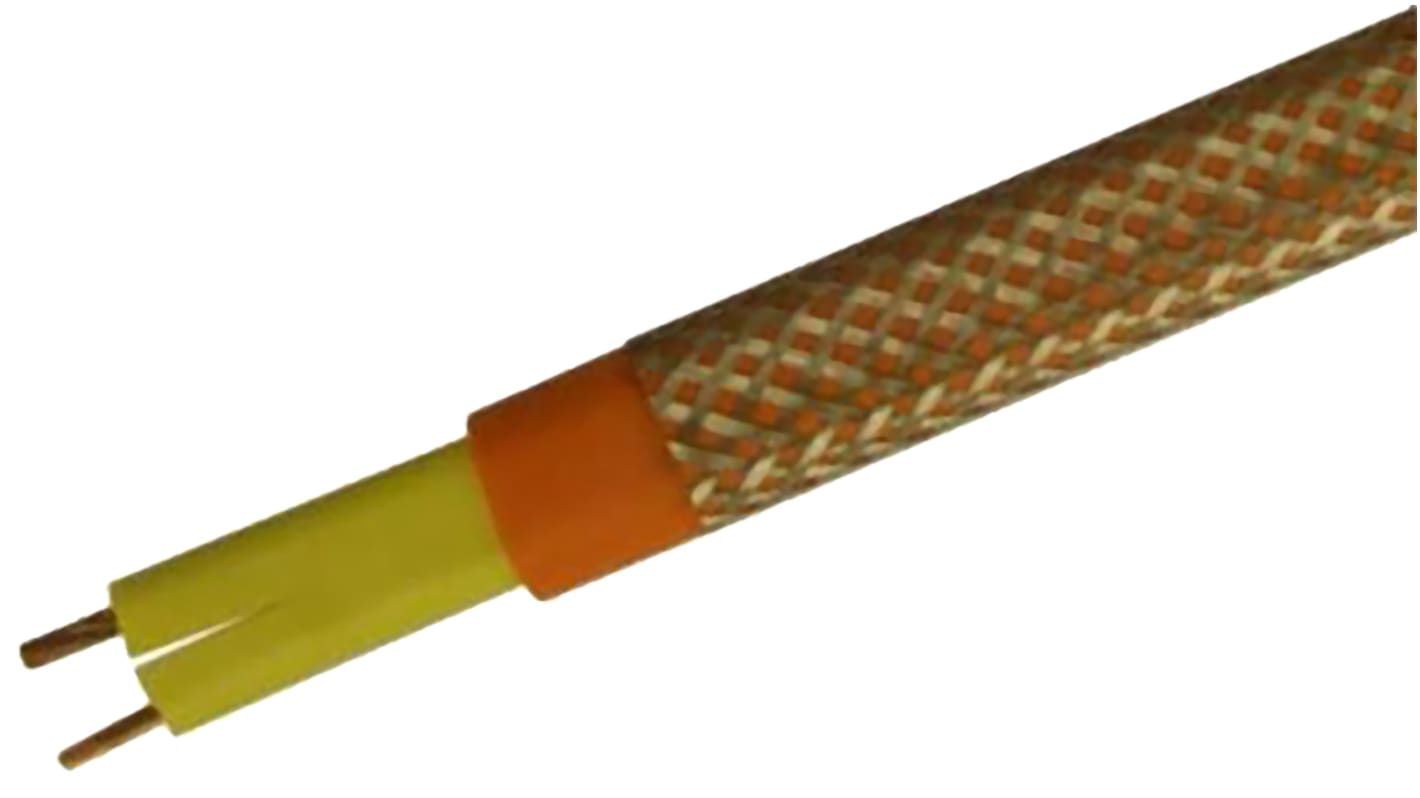

RS PRO Constant Wattage Trace Heating Cable, 12W/m, 240V ac, -60 → +200 °C, 20m

RS-artikelnummer:: 665-7491
Tillverkare / varumärke:: RS PRO

RS PRO Constant Wattage Trace Heating Cable, 12W/m, 240V ac, -60 → +200 °C, 20m

1 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) 1 rulle med 20 meter

5 136,11 kr

(exkl. moms)

6 420,14 kr

(inkl. moms)

Rulle(ar)	Per Reel	Per Metre*
1 +	5 136,11 kr	256,806 kr

RS-artikelnummer:: 665-7491
Tillverkare / varumärke:: RS PRO

Datablad

Lagstiftning och ursprungsland

RoHS-status: Undantagen

COO (Country of Origin):: GB

Produktdetaljer

RS PRO Trace Heating Cable - Constant Wattage

RS PRO is proud to offer a range of trace heating cables. These cables are of the highest quality and are designed to be cut from reel lengths and site terminated to suit pipe work. The constant wattage tape consists of several short heating zones, each connected across a pair of continuous bus-wire conductors. Each complete heating zone will give its full-rated design output with circuit voltage applied to the bus-wire conductors.

Features and Benefits

Cable measurements available are 20 m or 100 m

Designed to be cut from reel lengths

Parallel circuit - constant watt for hazardous areas

Short heating zones

Specification

Cable Type: Constant Wattage

Sheath Material: Silicone Rubber

Voltage Rating: 110 V or 240 V

Operating Temperature Range -60 to +200 °C

Hazardous Area Certification: ATEX

BS EN 60079-0:2009, BS EN 60079-30-1:2007

RS PRO 110V ac Trace Heating Cable Variants – Available Separately

L.20 m, 12W, 110 V ac, RS stock no: 703-3158

L.20 m, 30W, 110 V ac, RS stock no: 703-3170

RS PRO 240V ac Trace Heating Cable Variants – Available Separately

L.20 m, 12W, 240 V ac, RS stock no: 665-7491

L.20 m, 20W, 240 V ac, RS stock no: 665-7508

L.100 m, 30W, 240 V ac, RS stock no: 665-7526

Specifikationer

Attribute	Value
Cable Type	Constant Wattage
Output per Metre	12W
Self Regulating	No
Voltage Rating	240V ac
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+200°C
Operating Temperature Range	-60 → +200 °C
Length	20m
Sheath Material	Silicone Rubber
Hazardous Area Certification	ATEX
Standards Met	BS EN 60079-0:2009, BS EN 60079-30-1:2007
