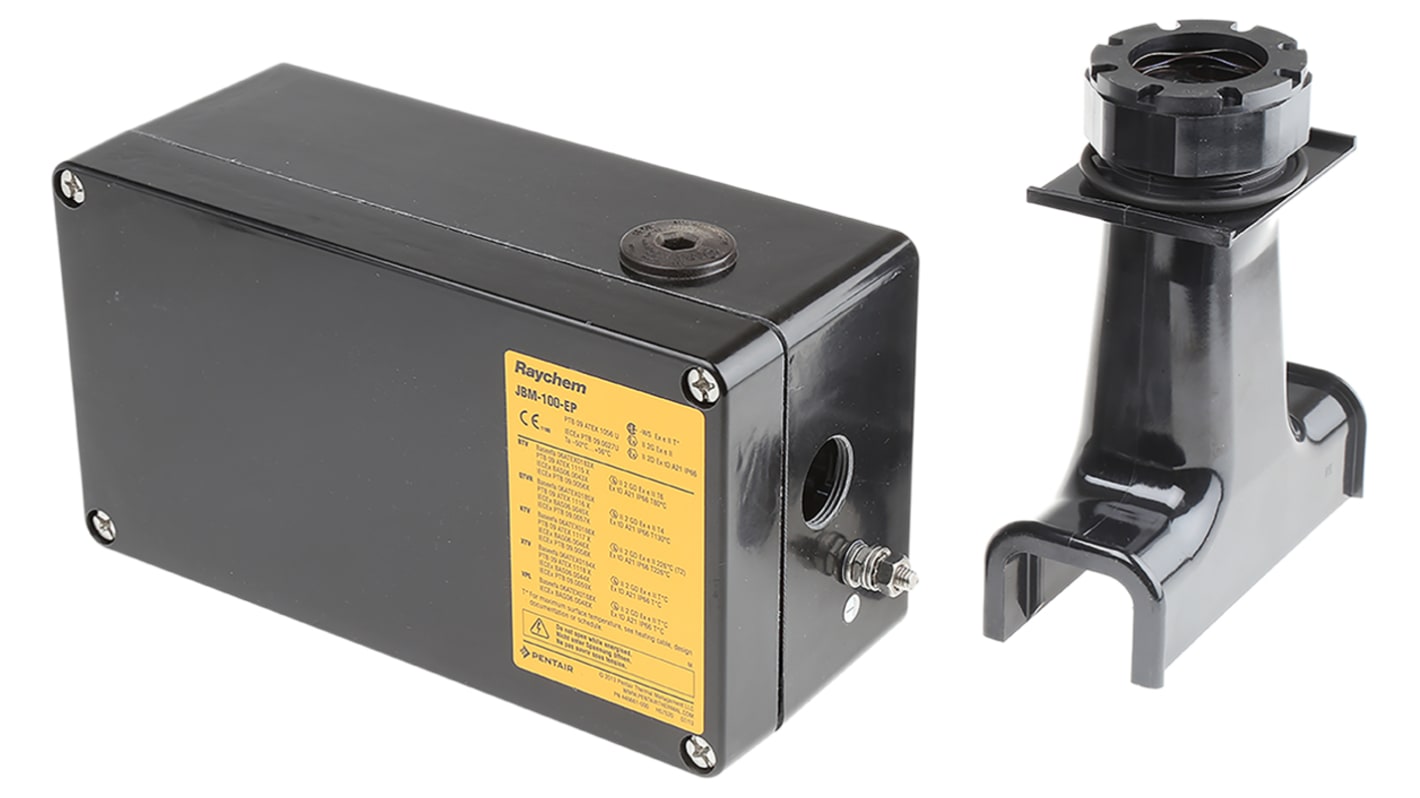

Raychem Trace Heating Junction Box 120mm x 220mm x 90mm, -50 → +40 °C

RS-artikelnummer:: 380-9759
Tillv. art.nr:: JBM-100
Tillverkare / varumärke:: Raychem

Raychem Trace Heating Junction Box 120mm x 220mm x 90mm, -50 → +40 °C

13 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) 1 sats

3 080,59 kr

(exkl. moms)

3 850,74 kr

(inkl. moms)

Sats(er)	Per Kit
1 +	3 080,59 kr

RS-artikelnummer:: 380-9759
Tillv. art.nr:: JBM-100
Tillverkare / varumärke:: Raychem

Datablad

Lagstiftning och ursprungsland

RoHS-status: Inte relevant

Produktdetaljer

Raychem® Single-Entry Power Connection with Junction Box

Suitable for BTV/XTV heating cables in hazardous/non-hazardous areas
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)

Certificate No.

PTB 98 ATEX 1021 U

Group and Category

II 2 G EEx e II

Approvals

II 2G EEx e II

Standards

EN 50014; EN 50019

Supplied with

7777

Power Connection

Specifikationer

Attribute	Value
Dimensions	220 x 120 x 90mm
Minimum Operating Temperature	-50°C
Maximum Operating Temperature	+40°C
Height	120mm
Length	220mm
Width	90mm
Hazardous Area Certification	ATEX
