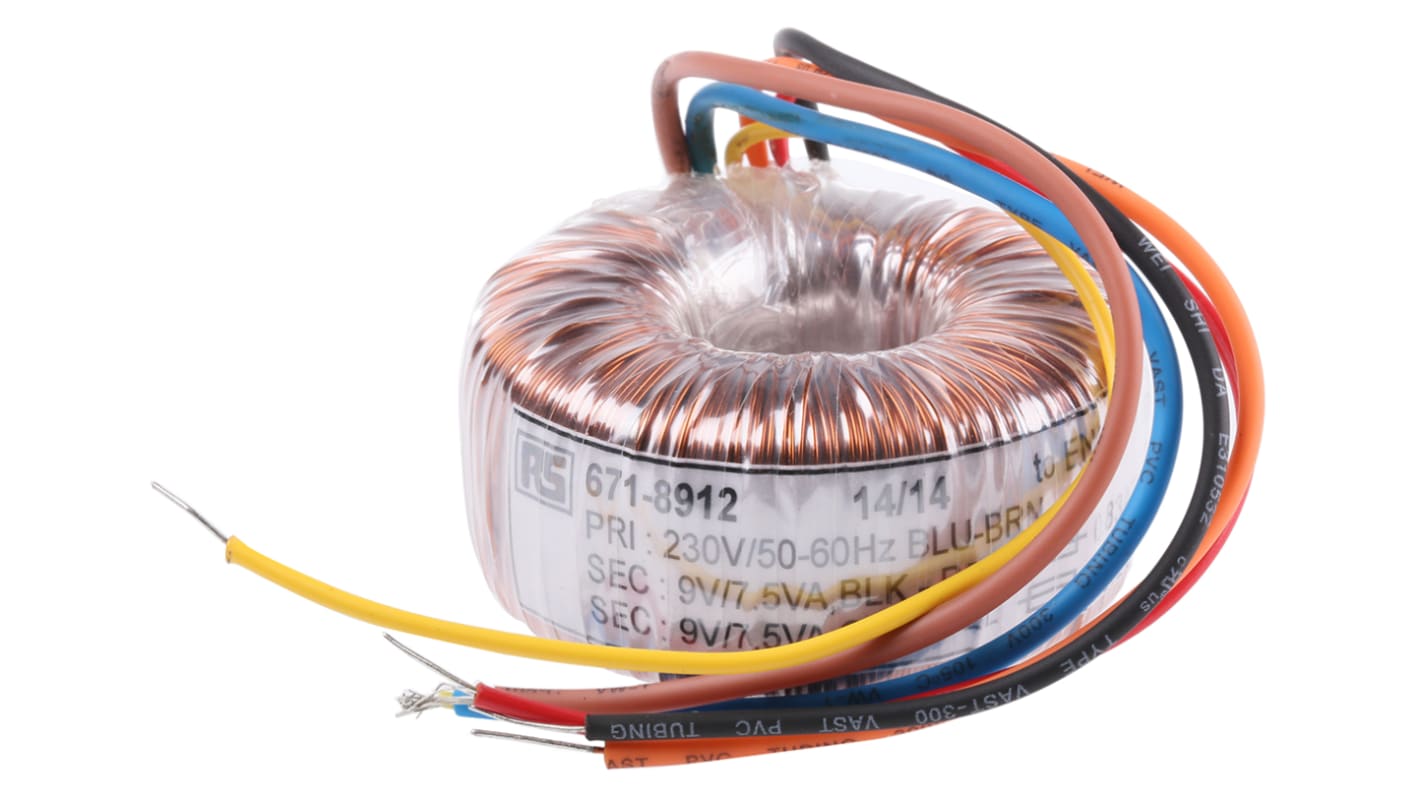

2 Output Toroidal Transformer, 15VA, 2 x 9V ac

  • RS-artikelnummer 671-8912
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

Toroid open wound 230V primary

High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads

Note

Mounting hardware is not supplied, available seperately

Approvals

UL506, EN61558

//media.rs-online.com/t_line/L223845-01.gif

Toroidal 230Vac Primary 15VA to 1000VA

Warning

  • Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Specifikationer
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 2 x 9V ac
Power Rating 15VA
Number of Outputs 2
Secondary Current 833mA
Height 31mm
Weight 365g
Diameter 60mm
Dimensions 60 (Dia.) x 31mm
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
Termination Type Copper Conductor Termination Wire
Fixing Hole Diameter 6mm
47 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
122,22 kr
(exkl. moms)
152,78 kr
(inkl. moms)
Enheter
Per unit
1 - 9
122,22 kr
10 - 24
100,30 kr
25 - 49
91,83 kr
50 - 99
85,64 kr
100 +
82,60 kr
