2 Output Toroidal Transformer, 15VA, 2 x 18V ac

  • RS-artikelnummer 223-9351
  • Tillv. art.nr 70054K
  • Tillverkare / varumärke Nuvotem Talema
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

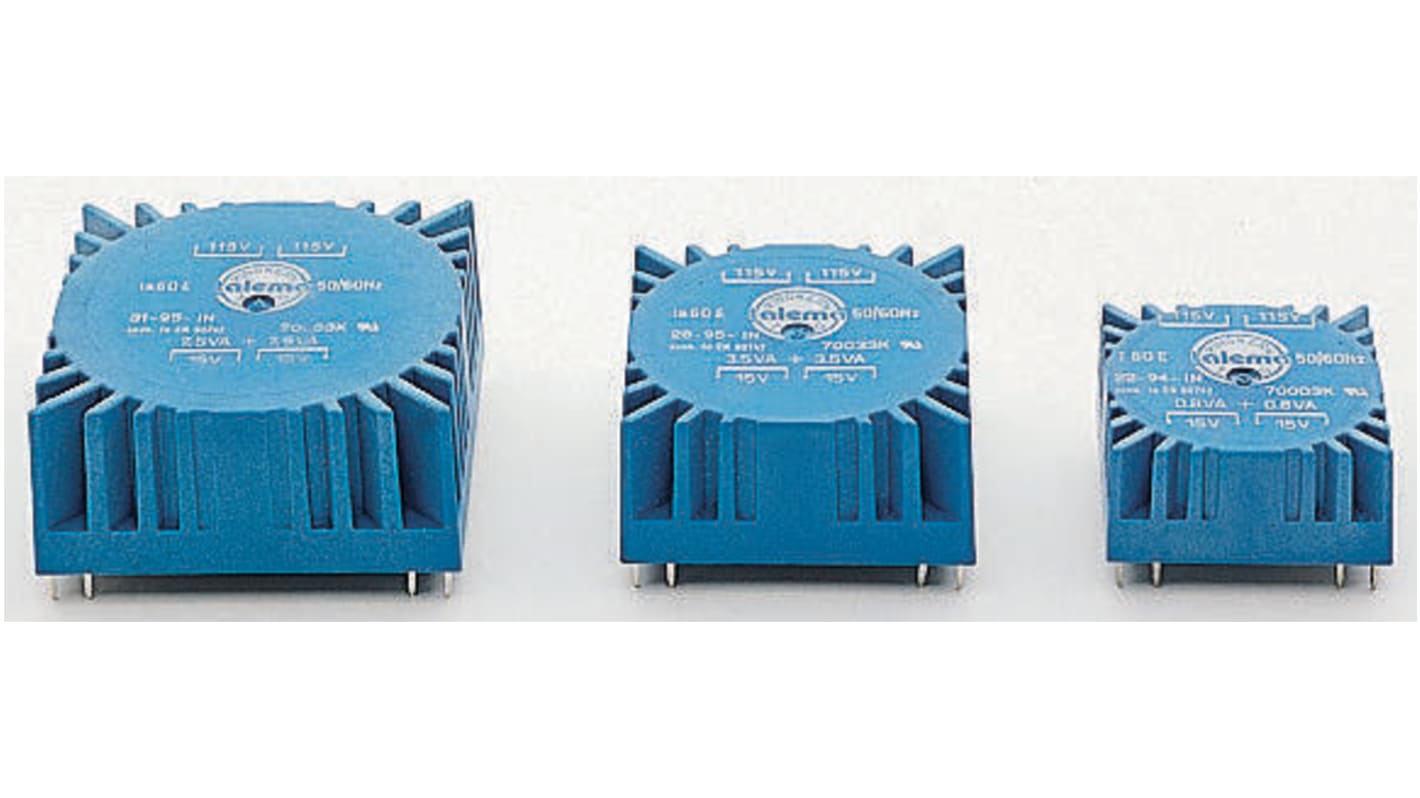

Miniature Encapsulated PCB Mount 115/230Vac Primary Transformers

This series of fully encapsulated PCB mounting toroidal transformers feature twin 115 V ac 50/60Hz primary windings that can be connected in series to a 230 V supply or in parallel for 115 V supplies. With a low weight and compact size, these toroidal transformers are ideal where space is at a premium, offering low magnetic interference, low noise and high efficiency. An M4 central bush allows for easy mounting

Low profile compact design
Fully encapsulated to UL94-V0
Extremely low level of radiated magnetic field
Extremely low level of hum and noise
High efficiency and low temperature rise
Ease of mounting
100% electrical and flash tested

Standards

EN60950, VDE0805, UL506, UL1950, UL6500

Approvals

UL recognised, VDE

//media.rs-online.com/t_line/L223898-01.gif

Approvals

EN60950; VDE 0805 (VDE 5803UG); UL 506 (E215495); UL 1950 (E218027; UL 6500 (E218027)

Encapsulated – Toroidal

Note

Fixing screws not provided

Specifikationer
Attribute Value
Primary Voltage Rating 115V ac, 230V ac
Secondary Voltage Rating 2 x 18V ac
Power Rating 15VA
Number of Outputs 2
Secondary Current 417mA
Weight 304g
Dimensions 60 x 60 x 26.3mm
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
Mounting Type PCB
Termination Type Pin
Fixing Hole Diameter M4
Maximum Temperature +60°C
27 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
187,36 kr
(exkl. moms)
234,20 kr
(inkl. moms)
Enheter
Per unit
1 - 9
187,36 kr
10 - 24
168,54 kr
25 - 49
159,34 kr
50 - 99
149,93 kr
100 +
140,52 kr
