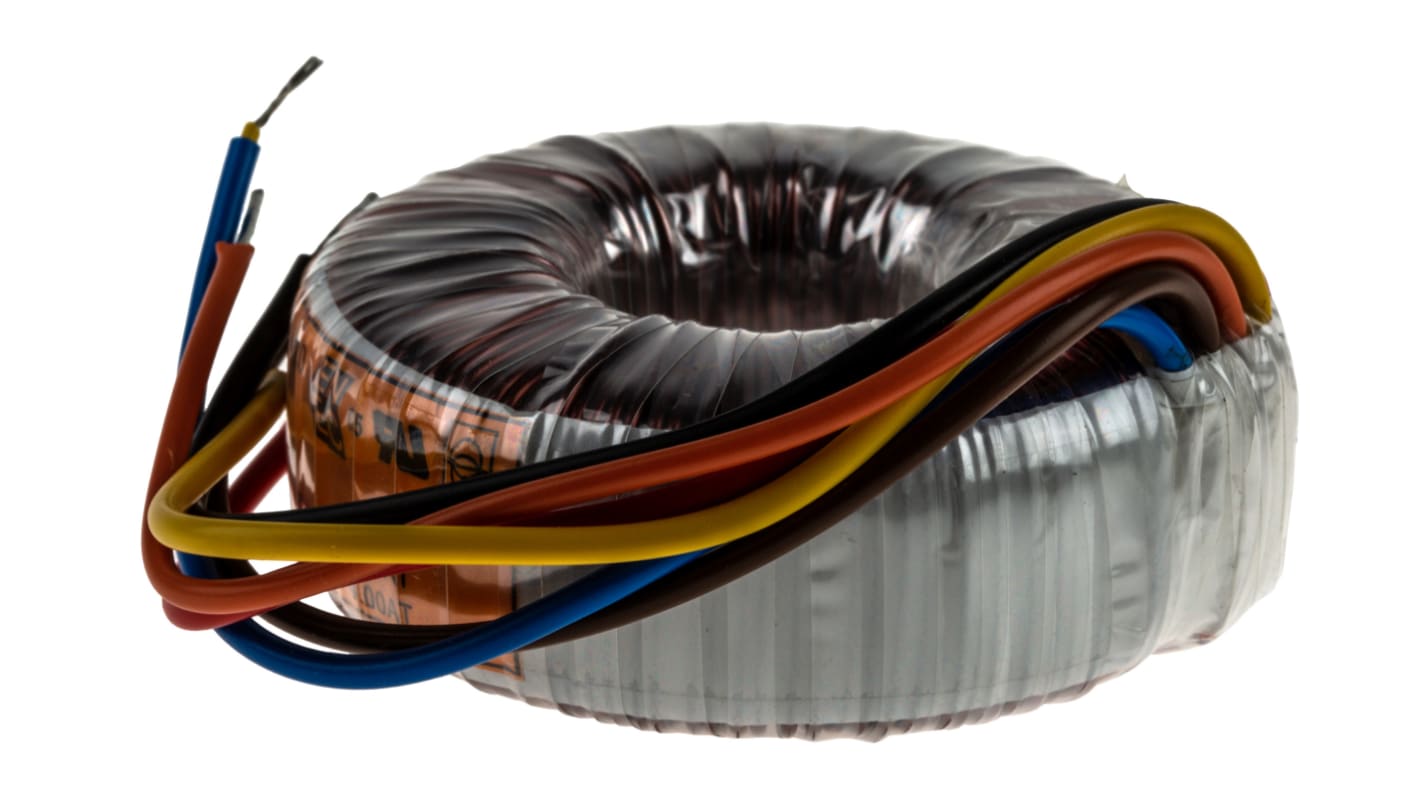

2 Output Toroidal Transformer, 15VA, 2 x 18V ac

  • RS-artikelnummer 223-7793
  • Tillv. art.nr 0015P1-2-018
  • Tillverkare / varumärke Nuvotem Talema
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CZ
Produktdetaljer

Open Style with Leads, 15VA to 1000VA

High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High-quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415

Standards

UL 506; EN 61558

Supplied with

Full mounting kit

//media.rs-online.com/t_line/L223845-01.gif
//media.rs-online.com/t_line/LF223775-10.gif

Approvals

UL 506; EN 61558

Standards

EN61558; EN60950; EN60065; VDE 0551; VDE 0550; BS415

Toroidal 230Vac Primary 15VA to 1000VA

Warning

  • Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Specifikationer
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 2 x 18V ac
Power Rating 15VA
Number of Outputs 2
Secondary Current 420mA
Height 31mm
Weight 300g
Diameter 60mm
Dimensions 60 (Dia.) x 31mm
Maximum Operating Frequency 450Hz
Termination Type Copper Conductor Termination Wire
Isolation Voltage 4.5kV ac
Minimum Temperature 0°C
Maximum Temperature +120°C
43 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
169,16 kr
(exkl. moms)
211,45 kr
(inkl. moms)
Enheter
Per unit
1 - 9
169,16 kr
10 - 24
152,31 kr
25 - 49
143,83 kr
50 - 99
135,35 kr
100 +
126,98 kr
