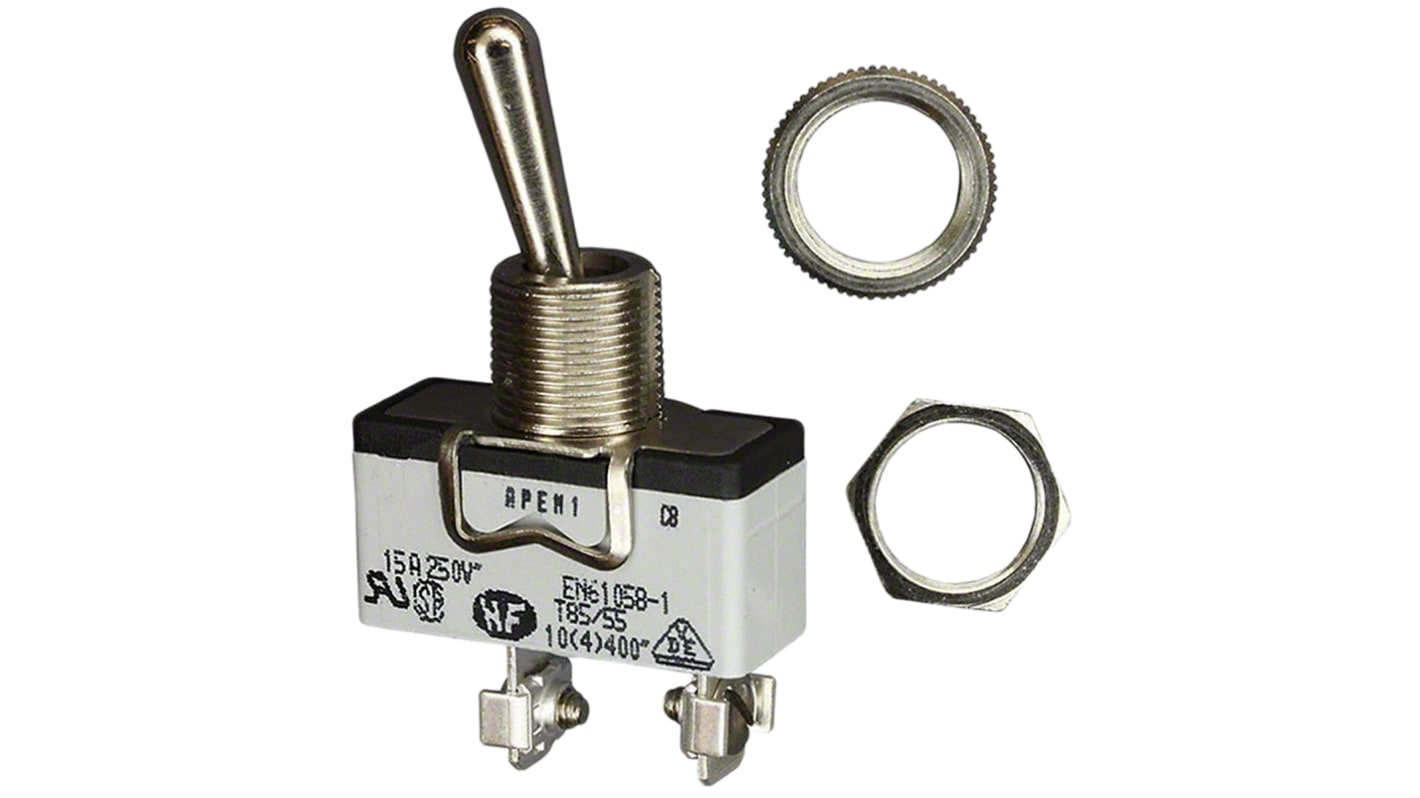

APEM Toggle Switch, Panel Mount, On-(On), SPDT, Screw Terminal, 400V ac

RS-artikelnummer:: 910-8061
Tillv. art.nr:: 635H
Tillverkare / varumärke:: APEM

APEM Toggle Switch, Panel Mount, On-(On), SPDT, Screw Terminal, 400V ac

285 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

106,23 kr

(exkl. moms)

132,79 kr

(inkl. moms)

Enheter	Per unit
1 - 24	106,23 kr
25 - 49	87,19 kr
50 - 99	79,64 kr
100 - 249	74,28 kr
250 +	67,94 kr

RS-artikelnummer:: 910-8061
Tillv. art.nr:: 635H
Tillverkare / varumärke:: APEM

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: FR

Produktdetaljer

Toggle Switches, Std, 15A Metal Lever

Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts

Note

For biased switches (on) refers to momentary (on) position

Specifikationer

Attribute	Value
Contact Configuration	SPDT
Switch Operation	On-(On)
Contact Current Rating	10 A
Mounting Type	Panel Mount
Terminal Type	Screw
Illuminated	No
Panel Cut Out Diameter	12.2mm
Actuator Length	17.5mm
Actuator Material	Nickel Plated Brass
Voltage Rating	400V ac
Panel Cut Out Size	12.2 (Dia.)mm
Contact Resistance	10mΩ
Contact Material	Nickel Alloy, Silver
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-20°C
Standards Met	CSA, NF-VDE, UL, UL Recognized
Operating Temperature Range	-20 → +55°C
Mechanical Life	10000 (Electrical)Cycles
