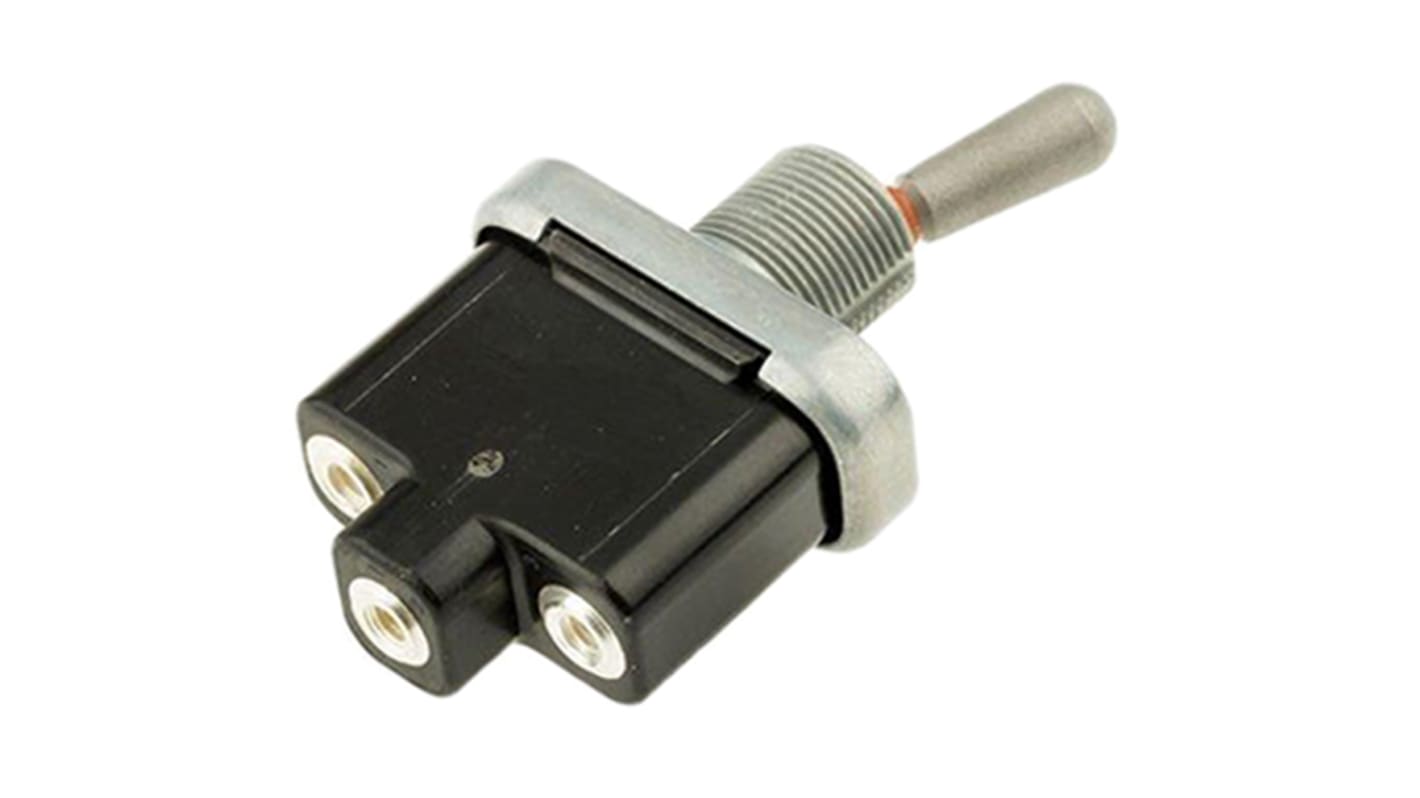

Otto Toggle Switch, Panel Mount, (On)-Off, DPST, Screw Terminal, 28 V dc, 115V ac
- RS-artikelnummer:
- 883-7664
- Tillv. art.nr:
- T9-CS2-28
- Tillverkare / varumärke:
- Otto
Tillfälligt slut i lager – restorder för leverans 2024-06-28
Lagt till varukorgen
Pris (ex. moms) Varje
447,45 kr
(exkl. moms)
559,31 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 447,45 kr |
| 10 - 19 | 430,38 kr |
| 20 - 49 | 414,30 kr |
| 50 - 99 | 399,53 kr |
| 100 + | 385,64 kr |
- RS-artikelnummer:
- 883-7664
- Tillv. art.nr:
- T9-CS2-28
- Tillverkare / varumärke:
- Otto
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
16A Sealed Switches (Screw terminal)
Built to MIL-DTL-3950
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac
Specifikationer
Attribute | Value |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | (On)-Off |
| Contact Current Rating | 11 A @ 115 V ac, 18 A @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| IP Rating | IP68S |
| Panel Cut Out Diameter | 0.67mm |
| Actuator Length | 0.69in |
| Actuator Material | Stainless Steel |
| Voltage Rating | 28 V dc, 115V ac |
| Contact Material | Silver |
| Panel Cut Out Size | 0.67 (Dia.)mm |
| Minimum Operating Temperature | -65°C |
| Operating Temperature Range | -65 → +71°C |
| Mechanical Life | 40000Cycles |
| Maximum Operating Temperature | +71°C |
| Standards Met | CSA, Reach, RoHS, UL, WEEE |
