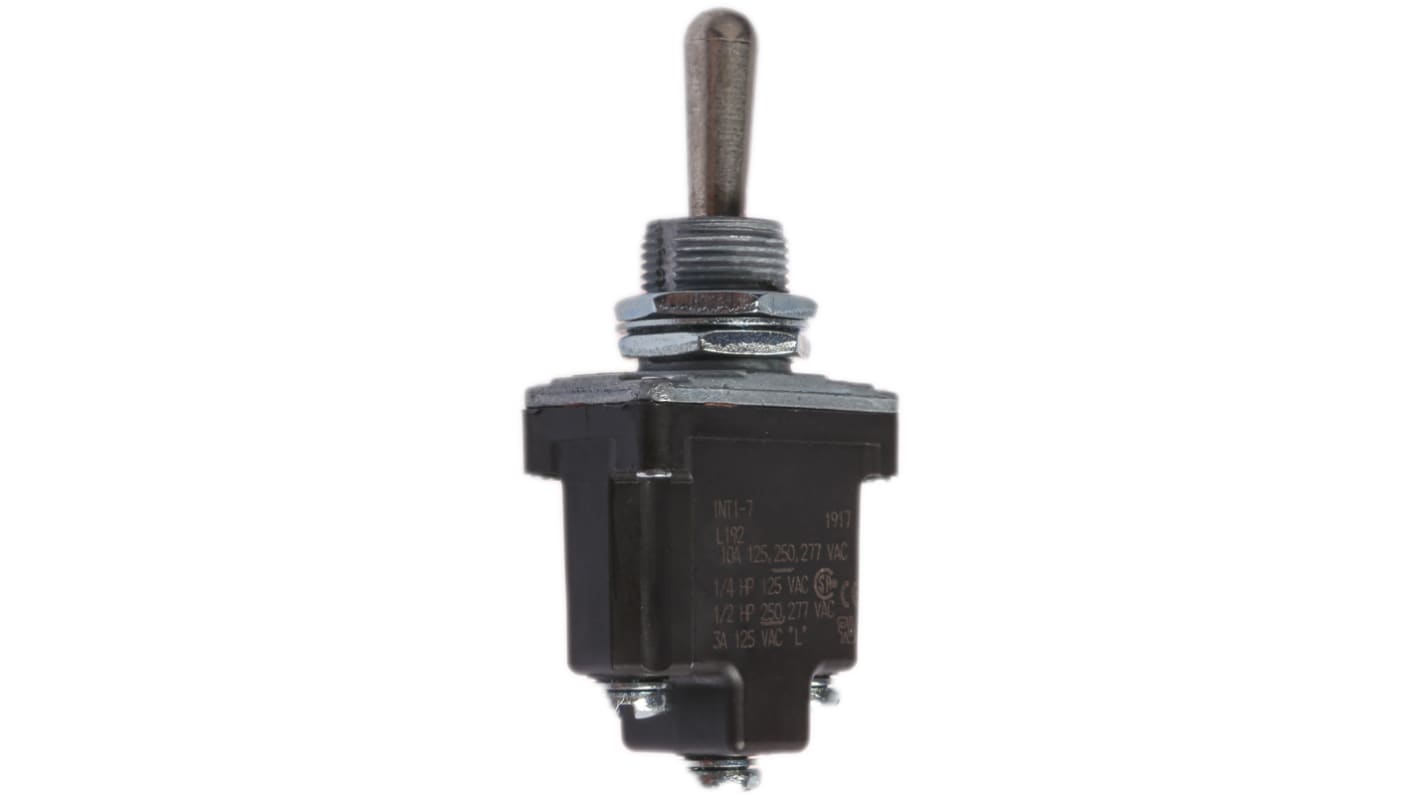

Honeywell Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), IP67, IP68, Panel Mount

  • RS-artikelnummer 812-6573
  • Tillv. art.nr 1NT1-7
  • Tillverkare / varumärke Honeywell
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

Honeywell NT Series Toggle Switches

These sealed commercial grade toggle switches are designed for demanding outdoor enviroments, where the panels are subjected to vibration, temperature extremes, dust and water.

Tactile feedback of toggle for gloved operation
NEMA 3, 3R, 4, 13 and IP67/68 sealing

Approvals

UL, CSA, CE

Specifikationer
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation (On)-Off-(On)
Contact Current Rating 6 A @ 230 V ac, 15 A @ 115 V ac, 15 A @ 28 V dc
Mounting Type Panel Mount
Terminal Type Screw
IP Rating IP67, IP68
Panel Cut Out Diameter 12.4mm
Actuator Length 17mm
Actuator Material Metal, Plastic
Maximum Operating Temperature +71°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +71°C
Contact Material Gold Plated Silver Alloy
Panel Cut Out Size 12.4 (Dia.)mm
1476 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
177,62 kr
(exkl. moms)
222,02 kr
(inkl. moms)
Enheter
Per unit
1 - 9
177,62 kr
10 - 24
156,31 kr
25 - 49
133,22 kr
50 +
120,78 kr
