Reliance Cast Gun Metal Heatguard TMV3, 15mm BSP

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

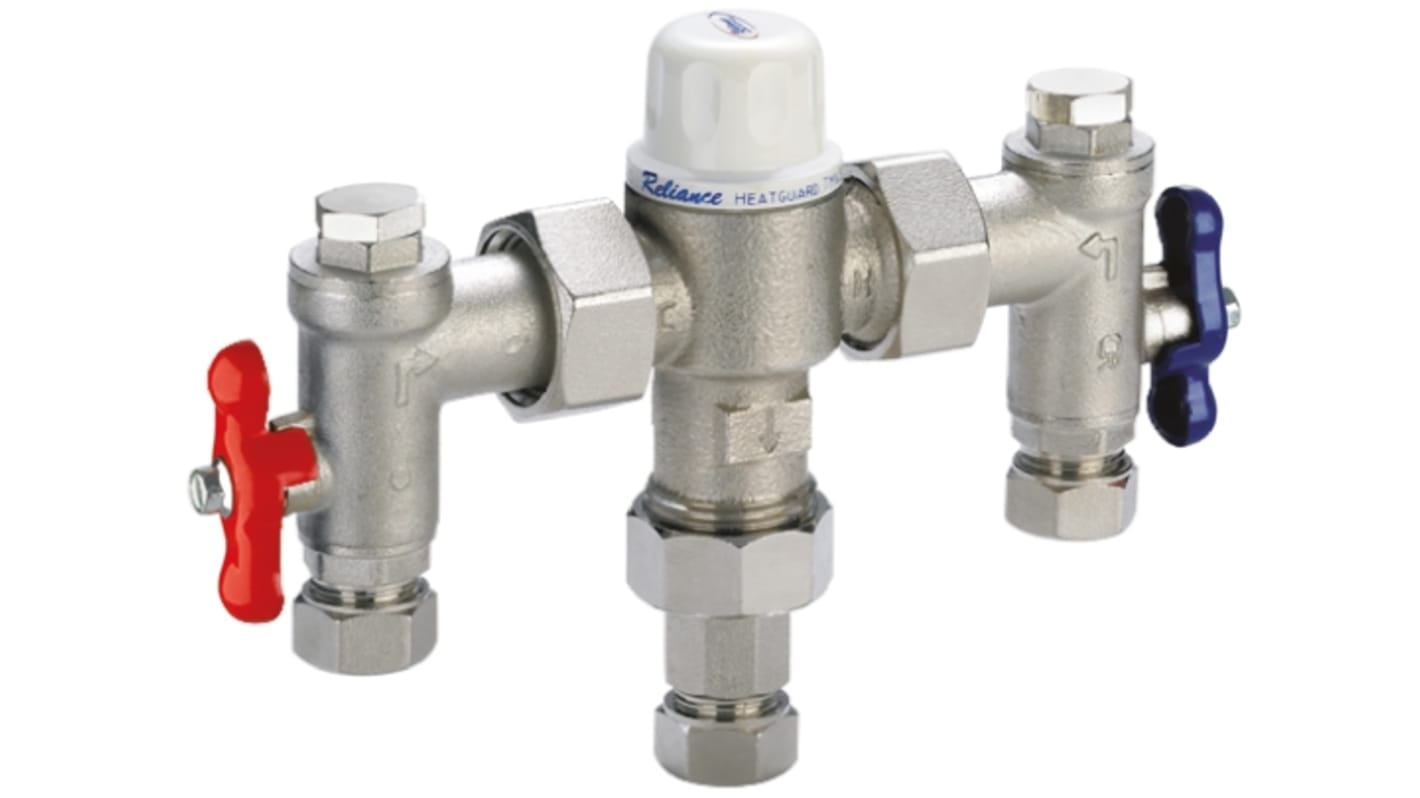

Heatguard® TMV3-8

A highly advanced TMV3 approved thermostatic mixing valve for use in basin, shower, bidet and high pressure bathfill applications (above 1 bar). The valve is designed to control the mixed water outlet temperature to within +/- 2゚C regardless of fluctuations in the temperature and pressure of the hot and cold water supplies, and to shut the mixed water outlet instantly in case of hot or cold water failure*

Fully approved by the WRAS under the TMV3 scheme to the DO8 specification for basin, shower, bidet, and high pressure bathfill applications
Rapid thermostatic failsafe on either cold or hot supply failure protects the user from extreme temperature dangers
Unique, purpose built temperature adjuster tool prevents unauthorised tampering
Provides extreme mixed water temperature stability under changing supply conditions

Note

*Supply conditions must remain within limits stated

Approvals

WRAS
TMV3

Basin, Bath & Shower Valves

A range of thermostatically controlled mixer valves all capable of operating with a hot/cold or cold/hot pressure ratio imbalance of up to 10:1,All units incorporate check valves to prevent cross-flow between supplies, and strainers to reduce damage due to contamination.,Connections are via the compression fixings using either 15 or 22mm pipe.

Specifikationer
Attribute Value
Connection 1 in BSP
Body Material Cast Gun Metal
Maximum Working Pressure 16 bar
Connection Size 15mm
Maximum Set Temperature +46°C
Minimum Set Temperature +46°C
Thread Standard or Connection Type BSP
Temperature Setting Range +38 → +46 °C
1 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 823,21 kr
(exkl. moms)
2 279,01 kr
(inkl. moms)
Enheter
Per unit
1 +
1 823,21 kr
