Reliance Bronze Thermostatic Washroom Valve, 15 mm, 22 mm Compression

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

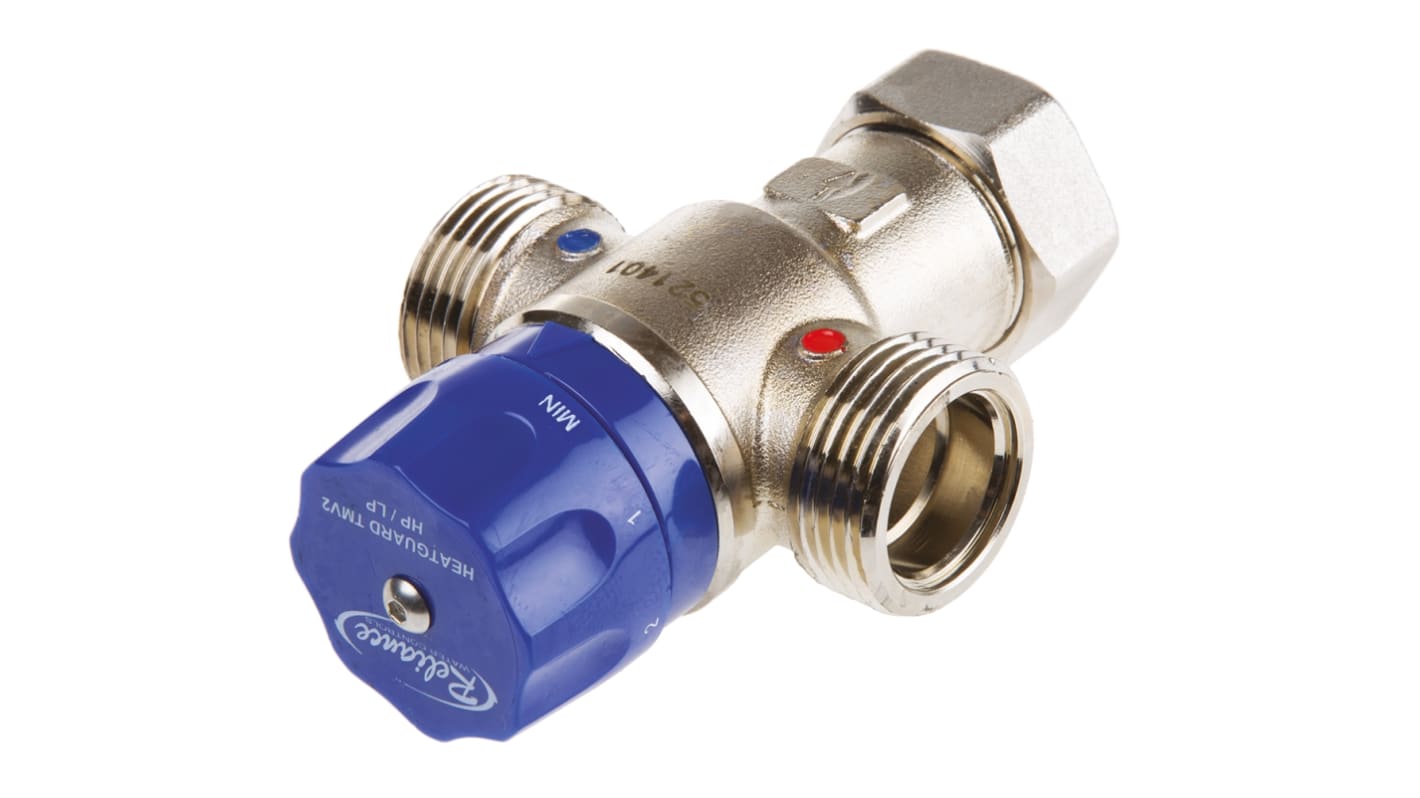

Reliance Water Controls Highflow Mixing Valve

The Reliance Water Controls 15mm compression thermostatically controlled high-flow mixer valve is capable of operating with a hot/cold or cold/hot pressure ratio imbalance of up to 10:1. This valve is made from the bronze material with a nickel-plated finish and an internal PTFE coating. Connections are via the compression fixings using either a 15mm or 22mm pipe. All units incorporate check valves to prevent cross-flow between supplies and strainers to reduce damage due to contamination.

Features and Benefits

Maximum working pressure is 6bar
Temperature setting ranges between 35°C and 60°C

Specifikationer
Attribute Value
Connection 15 mm Compression
Body Material Bronze
Maximum Working Pressure 6 bar
Connection Size 15 mm, 22 mm
Maximum Set Temperature +60°C
Minimum Set Temperature +35°C
Thread Standard or Connection Type Compression
Temperature Setting Range +35 → +60 °C
53 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 074,88 kr
(exkl. moms)
1 343,60 kr
(inkl. moms)
Enheter
Per unit
1 +
1 074,88 kr
