Thermocouple & Extension Wire Type K, -40 +200 °C 2 Core Silicone Rubber Sheath 25m

  • RS-artikelnummer 827-5906
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

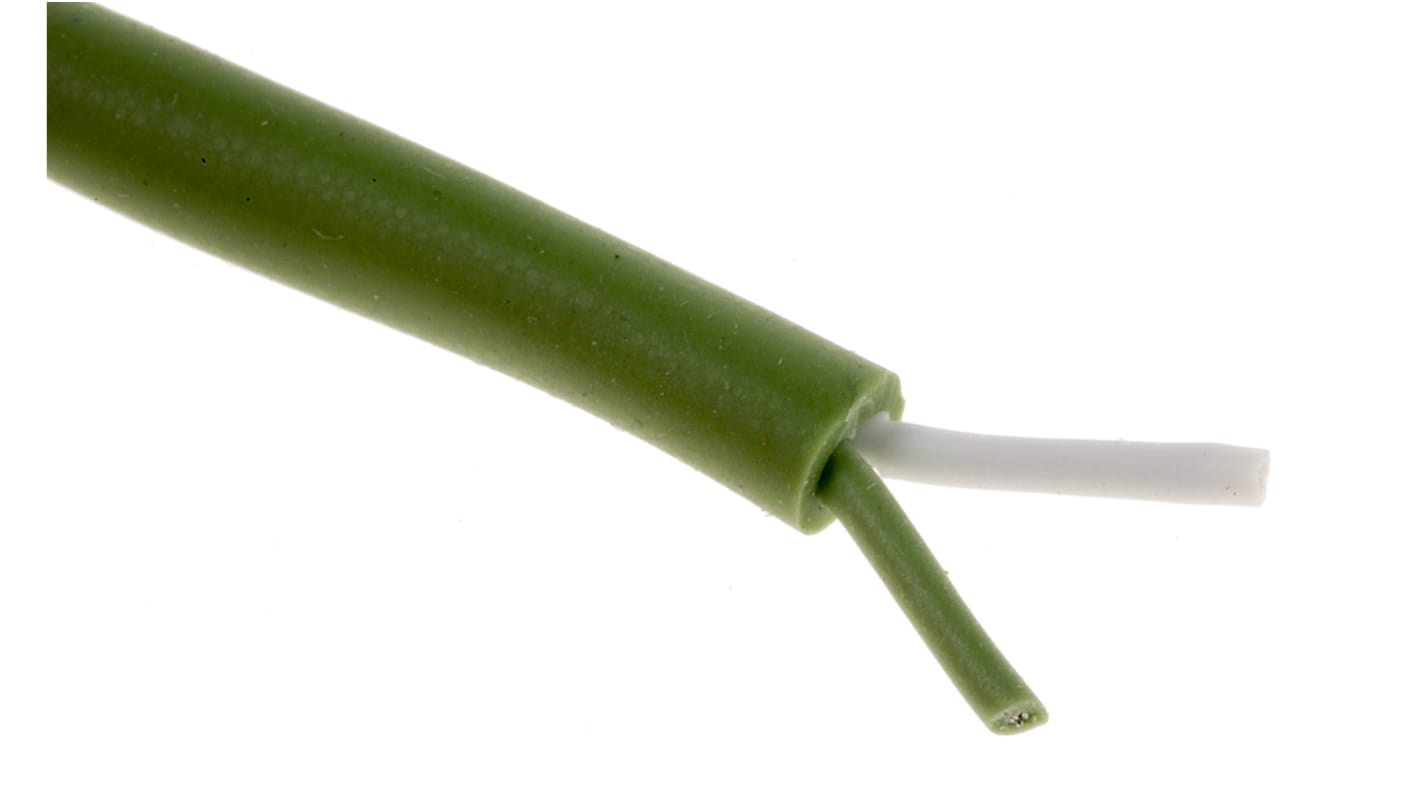

Silicone Rubber Insulated Thermocouple Cables

Silicone rubber insulated 7/0.2mm conductors, twisted together with silicone rubber outer jacket, excellent electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200゚C, however not suitable for direct use in high pressure steam.

Supplied in 25 or 50 metre reel lengths
Tolerance Class 2 to IEC-584
Insulation rating -40゚C to 200゚C
Colour code (cores & jacket) to IEC-584-3

Specifikationer
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 25m
Minimum Operating Temperature -40°C
Maximum Operating Temperature +200°C
Core Strands 7/0.2 mm
Insulation Material Silicone Rubber
Cable Shape Twisted
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC 584-3, RoHS Compliant
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
Tidigare 876,63 kr
763,82 kr
(exkl. moms)
954,78 kr
(inkl. moms)
Enheter
Per unit
1 - 9
763,82 kr
10 - 19
740,89 kr
20 +
710,35 kr
