Thermocouple & Extension Wire Type K, -75 → +260 °C 2 Core PFA Teflon Sheath 50m

  • RS-artikelnummer 814-0049
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

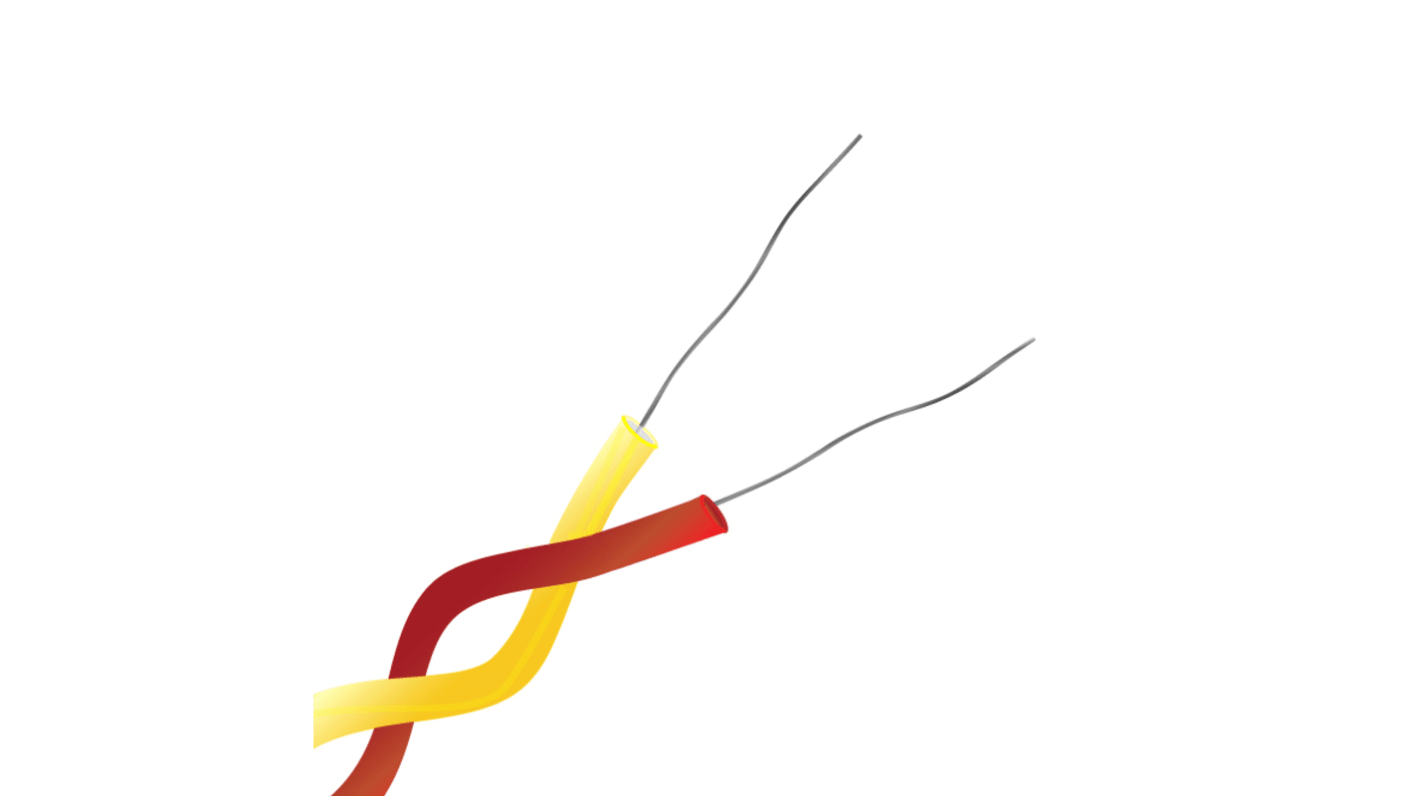

PFA Twin Twisted Pair Thermocouple Cables

These PFA Teflon twin twisted pair thermocouple cables are suitable for extending or assembling basic thermocouples. These strong, highly flexible thermocouples are resistant to acids, oils and other harmful substances.
Available in types K, J, T & N.

Specifikationer
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 50m
Minimum Operating Temperature -75°C
Maximum Operating Temperature 260°C
Core Strands 1/0.2 mm
Insulation Material PFA Teflon
Cable Shape Twisted
Number of Strands 1
Size of Strands 0.2 mm
Standards Met ANSI MC96.1, RoHS Compliant
41 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
217,35 kr
(exkl. moms)
271,69 kr
(inkl. moms)
Enheter
Per unit
1 - 9
217,35 kr
10 - 19
210,83 kr
20 +
202,14 kr
