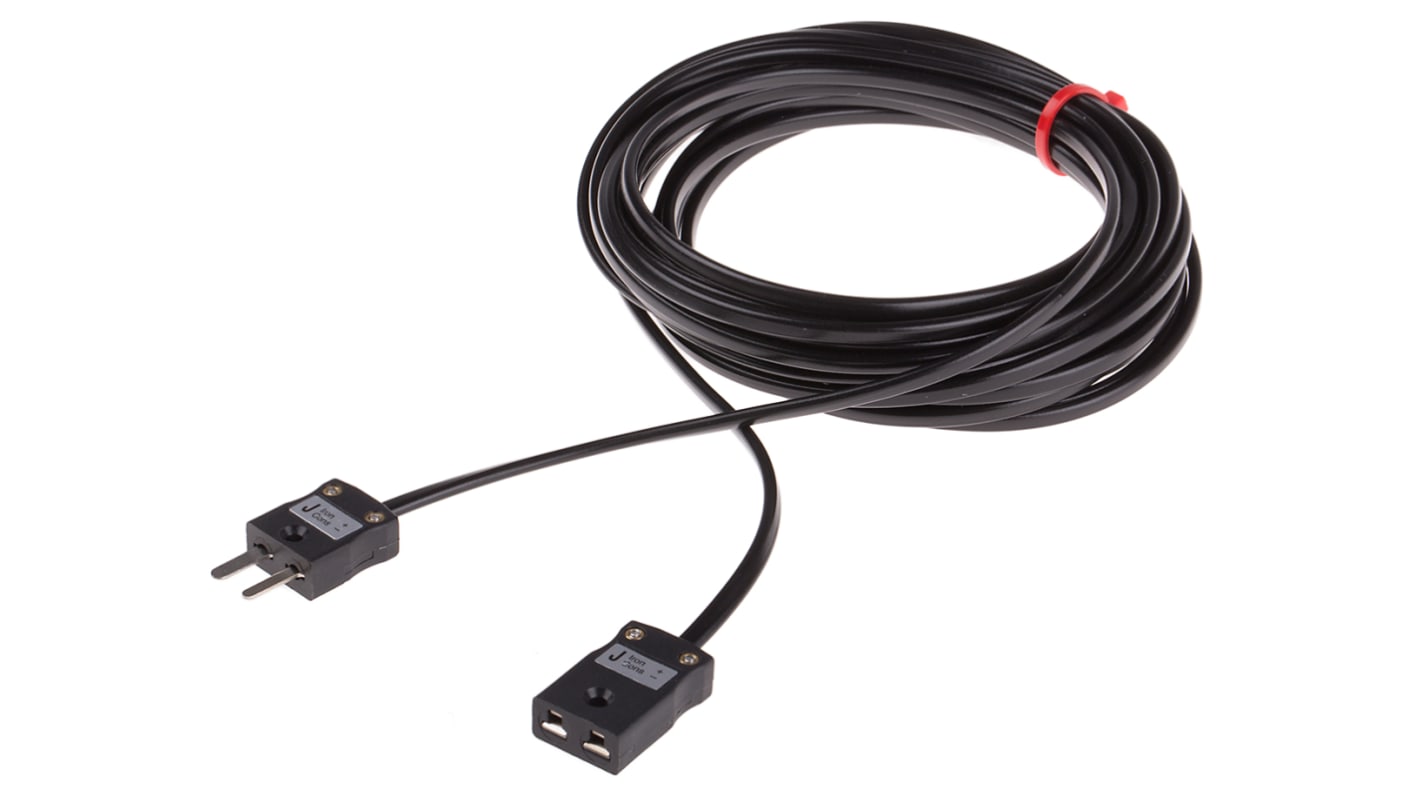

RS PRO Type J Extension Cable, 5m, PVC Insulation, +220°C Max, 7/0.2mm
- RS-artikelnummer:
- 768-6591
- Tillverkare / varumärke:
- RS PRO
25 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
321,31 kr
(exkl. moms)
401,64 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 321,31 kr |
| 5 - 9 | 305,55 kr |
| 10 + | 289,25 kr |
- RS-artikelnummer:
- 768-6591
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
Produktdetaljer
Thermocouple Extensions Leads
A range of thermocouple extension leads in types K, J, T and N available with either a miniature or standard IEC connector. The thermocouple extension leads are available in 2 m, 5 m and 10 m lengths.
Cable Construction:
PVC insulated cable
IEC colour coded
Laid flat, side by side & PVC sheathed
Insulation rating -10 → 105 °C
IEC colour coded
Laid flat, side by side & PVC sheathed
Insulation rating -10 → 105 °C
Miniature connector (flat plug pins) or standard connector (solid, round plug pins) versions available
Contacts are polarised to prevent incorrect connection
Contacts are polarised to prevent incorrect connection
Specifikationer
Attribute | Value |
|---|---|
| Insulation Material | PVC |
| Length | 5m |
| Thermocouple Type | J |
| Maximum Operating Temperature | +220°C |
| Core Strands | 7/0.2mm |
| Cable Shape | Multicore |
| Number of Strands | 2 |
| Standards Met | IEC, RoHS Compliant |
