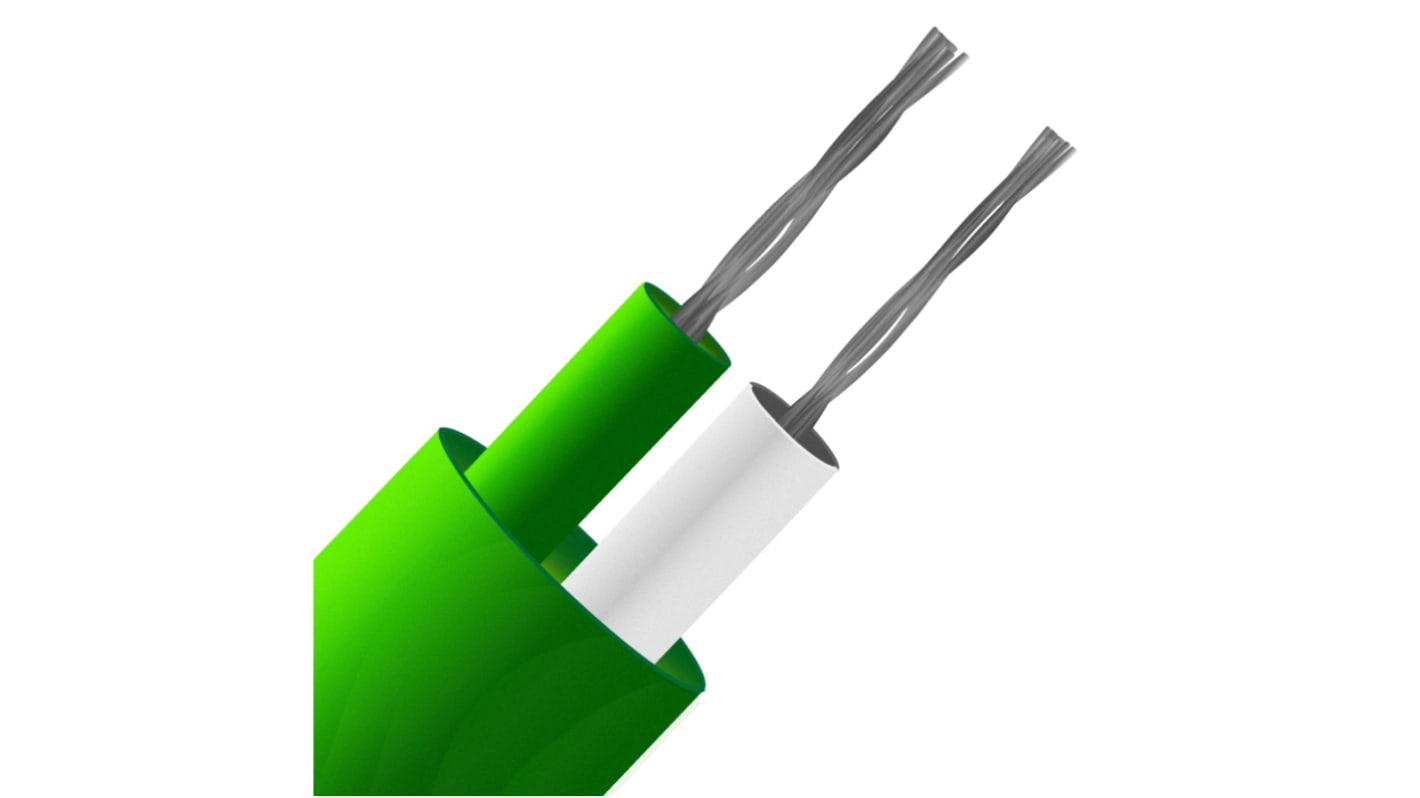

Thermocouple Wire Type K, -10 → +105 °C 2 Core Unscreened PVC Sheath 25m

  • RS-artikelnummer 219-4551
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

PVC Insulated Compensating Cable

Features and Benefits

PVC insulated flat pair construction
Conductors laid flat PVC insulated with overall PVC sheath
All round general purpose cable, both waterproof and very flexible
Thermocouple extension types for K, J, T & N
Compensating types VX (KCB) & U (RCA) for types K & R/S Thermocouples respectively
Stranded conductors available, either 7/0.2mm or 13 /0.2mm
Tolerance Class 2
Insulation rating -10 → 105 °C
Colour code (cores & jacket) to IEC-584-3

Standards

BS4937 Part 30 1993 which conforms to IEC 584-3

Standards

BS 4937 Part 30 1993

Specifikationer
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 25m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +105°C
Screened/Unscreened Unscreened
Core Strands 7/0.2 mm
Insulation Material PVC
Cable Shape Multicore
Number of Strands 7
Size of Strands 0.2 mm
Standards Met BS 1843, RoHS Compliant
158 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) 1 Reel of 25 Metre(s)
213,00 kr
(exkl. moms)
266,25 kr
(inkl. moms)
Rulle(ar)
Per Reel
Per Metre*
1 - 4
213,00 kr
8,52 kr
5 - 14
206,62 kr
8,265 kr
15 +
198,09 kr
7,924 kr
