RS PRO Type K Thermocouple Wire, 25m, PVC Insulation, +105°C Max, 23/0.2mm
- RS-artikelnummer:
- 185-3004
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-08-02
Lagt till varukorgen
Pris (ex. moms) Varje
1 432,70 kr
(exkl. moms)
1 790,88 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 432,70 kr |
- RS-artikelnummer:
- 185-3004
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

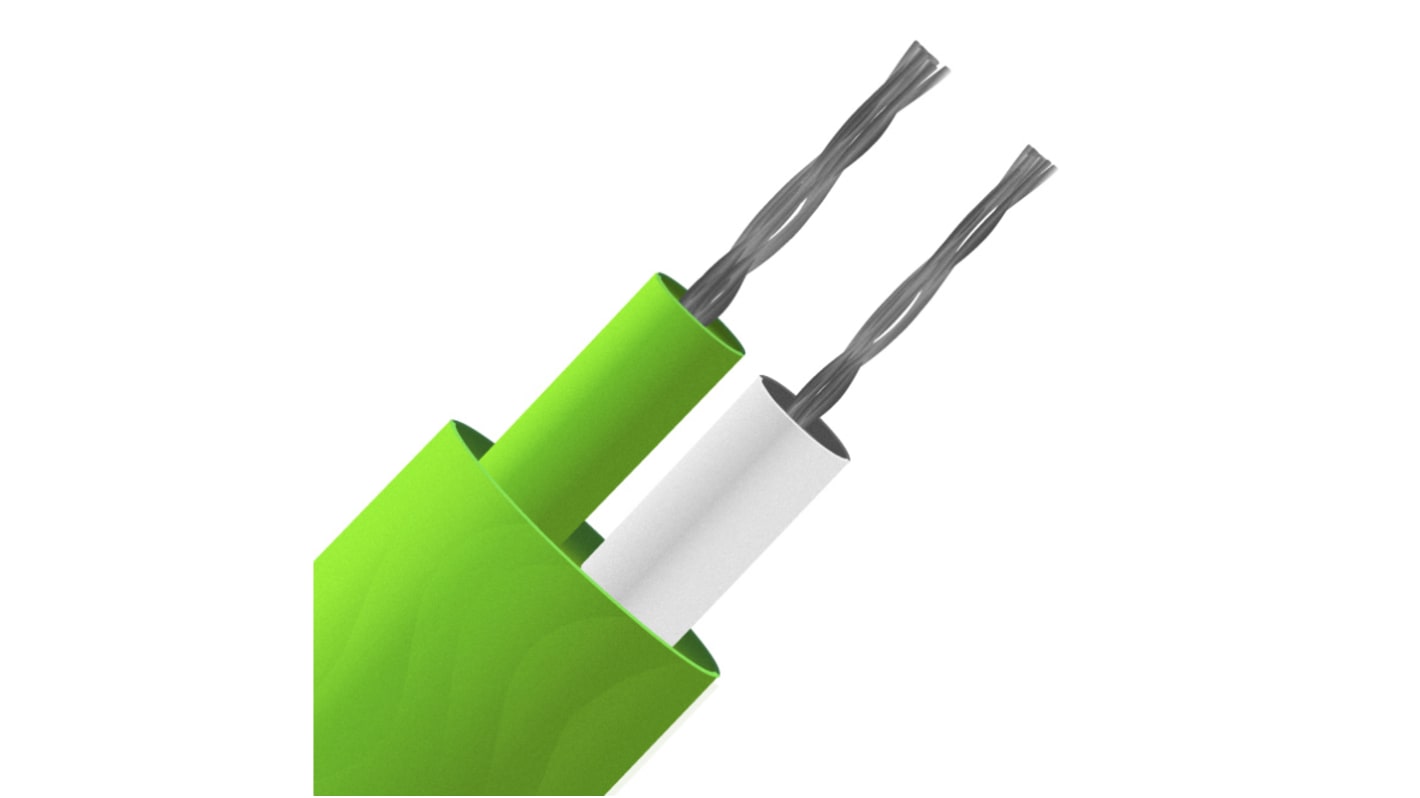

RS PRO Flat Pair Thermocouple Extension Cable
The RS PRO K type flat pair thermocouple extension and compensating cable has a single 25m pair of PFA insulated conductors twisted together. It has a green/white coloured core and green coloured jacket. The cable has 0.2mm conductor and this general purpose cable is waterproof and flexible. It is made from low-cost materials, thus cost savings can be achieved on plant installations compared with running true thermocouple extension cable.
Features and Benefits
• Tolerance Class 2
• Insulation rating -10°C to 105°C
• Number of strands: 23
• Colour coded (cores & jacket) to IEC-584-3
• Insulation rating -10°C to 105°C
• Number of strands: 23
• Colour coded (cores & jacket) to IEC-584-3
Specifikationer
Attribute | Value |
|---|---|
| Length | 25m |
| Insulation Material | PVC |
| Maximum Operating Temperature | +105°C |
| Thermocouple Type | K |
| Core Strands | 23/0.2mm |
| Cable Shape | Flat Pair |
| Number of Strands | 2 |
| Standards Met | IEC |
- RS-artikelnummer:
- 185-3004
- Tillverkare / varumärke:
- RS PRO
