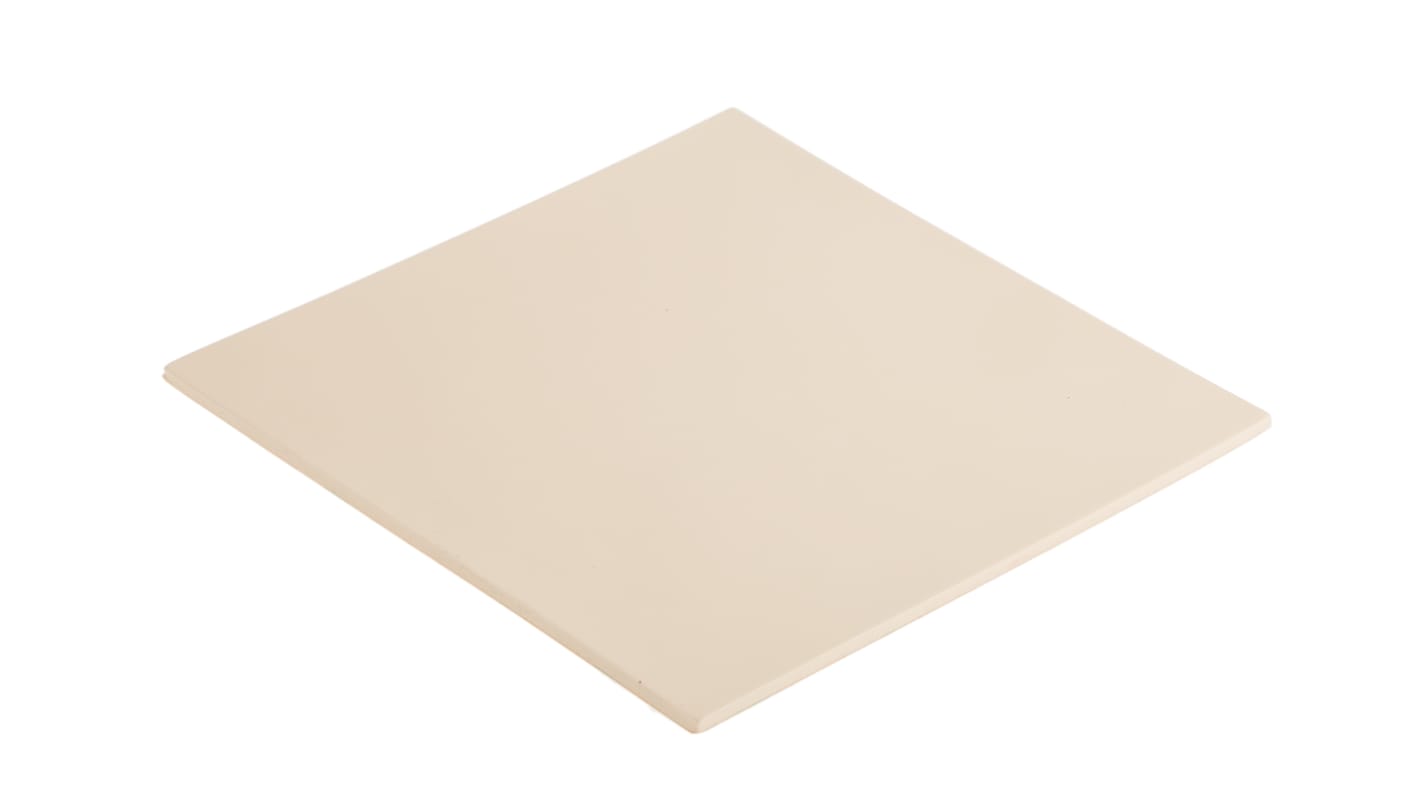

Thermal Interface Sheet, 1.95W/m·K, 150 x 150mm 3mm, Self-Adhesive

  • RS-artikelnummer 707-4641
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Gap Filler Material, 1.95 W/m•K - RS Series

Good thermal conductivity
Ultra soft and high compressibility
Natural tack
Easy to assemble
Very good insulator

Specifikationer
Attribute Value
Dimensions 150 x 150mm
Thickness 3mm
Length 150mm
Width 150mm
Thermal Conductivity 1.95W/m·K
Self-Adhesive Yes
Minimum Operating Temperature -40°C
Maximum Operating Temperature +200°C
Hardness Shore A 5
Operating Temperature Range -40 → +200 °C
Colour Yellow
42 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
396,95 kr
(exkl. moms)
496,19 kr
(inkl. moms)
Enheter
Per unit
1 - 24
396,95 kr
25 - 99
371,97 kr
100 +
335,08 kr
