- RS-artikelnummer:
- 498-0326
- Tillv. art.nr:
- SP900S-0.009-00-1212
- Tillverkare / varumärke:
- Bergquist
13 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
972,56 kr
(exkl. moms)
1 215,70 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 972,56 kr |
5 - 14 | 942,45 kr |
15 - 24 | 913,23 kr |
25 - 49 | 887,01 kr |
50 + | 861,68 kr |
- RS-artikelnummer:
- 498-0326
- Tillv. art.nr:
- SP900S-0.009-00-1212
- Tillverkare / varumärke:
- Bergquist
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer

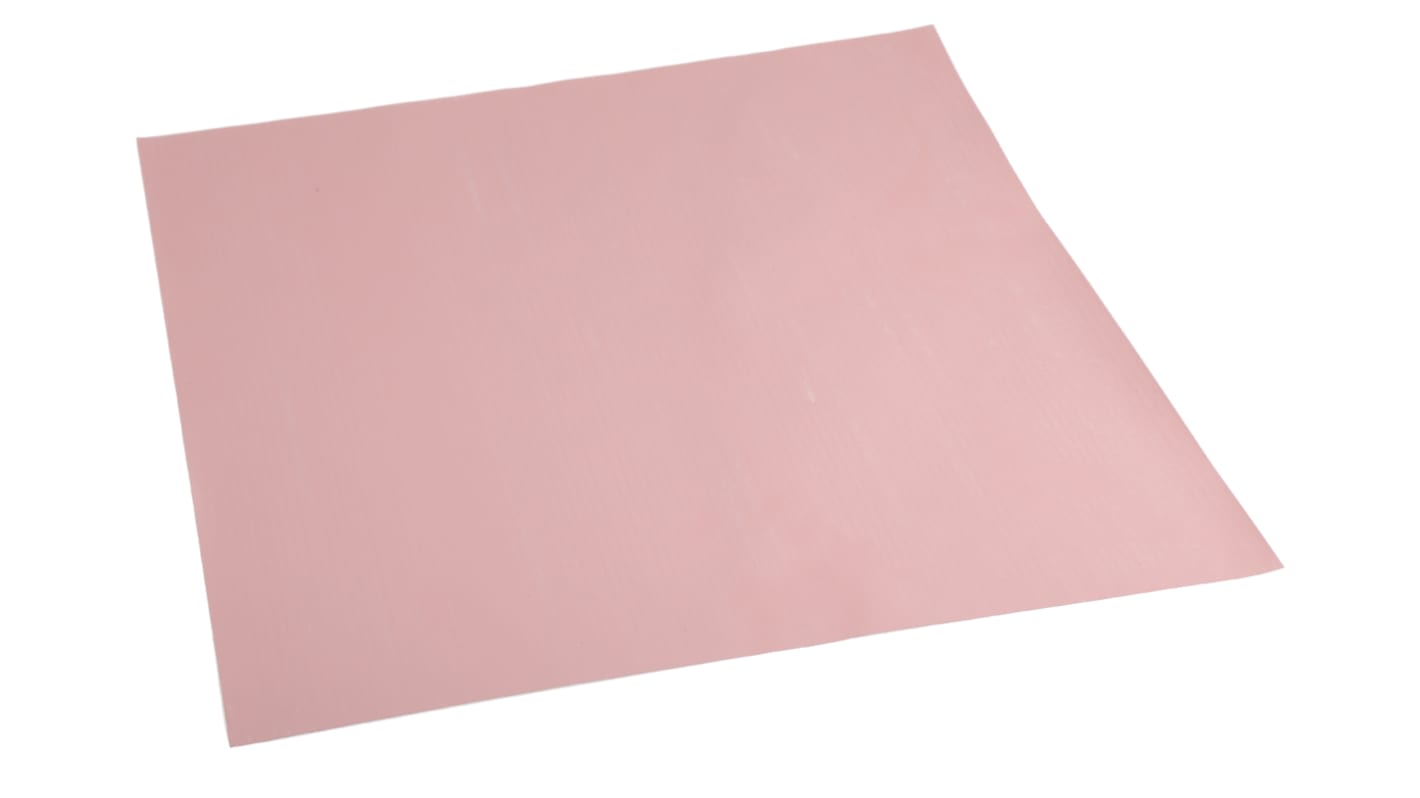

SIL-Pad 900-S insulators
Insulator sheets on which heat-emitting power semi-conductors can be mounted directly with complete safety.
This material is specially reserved for applications in which pressure between the transistor and the radiator is low.
Available in dry or self-adhesive models (SIL-Pad 900-S AC).
This material is specially reserved for applications in which pressure between the transistor and the radiator is low.
Available in dry or self-adhesive models (SIL-Pad 900-S AC).
Specifikationer
Attribute | Value |
---|---|
Maximum Operating Temperature | +180°C |
Form | Sheet |
Length | 304.8mm |
Width | 304.8mm |
Thickness | 0.23mm |
Flame Retardant | Yes |
Thermal Shock Resistant | Yes |
Thermal Conductivity | 1.6W/mK |
