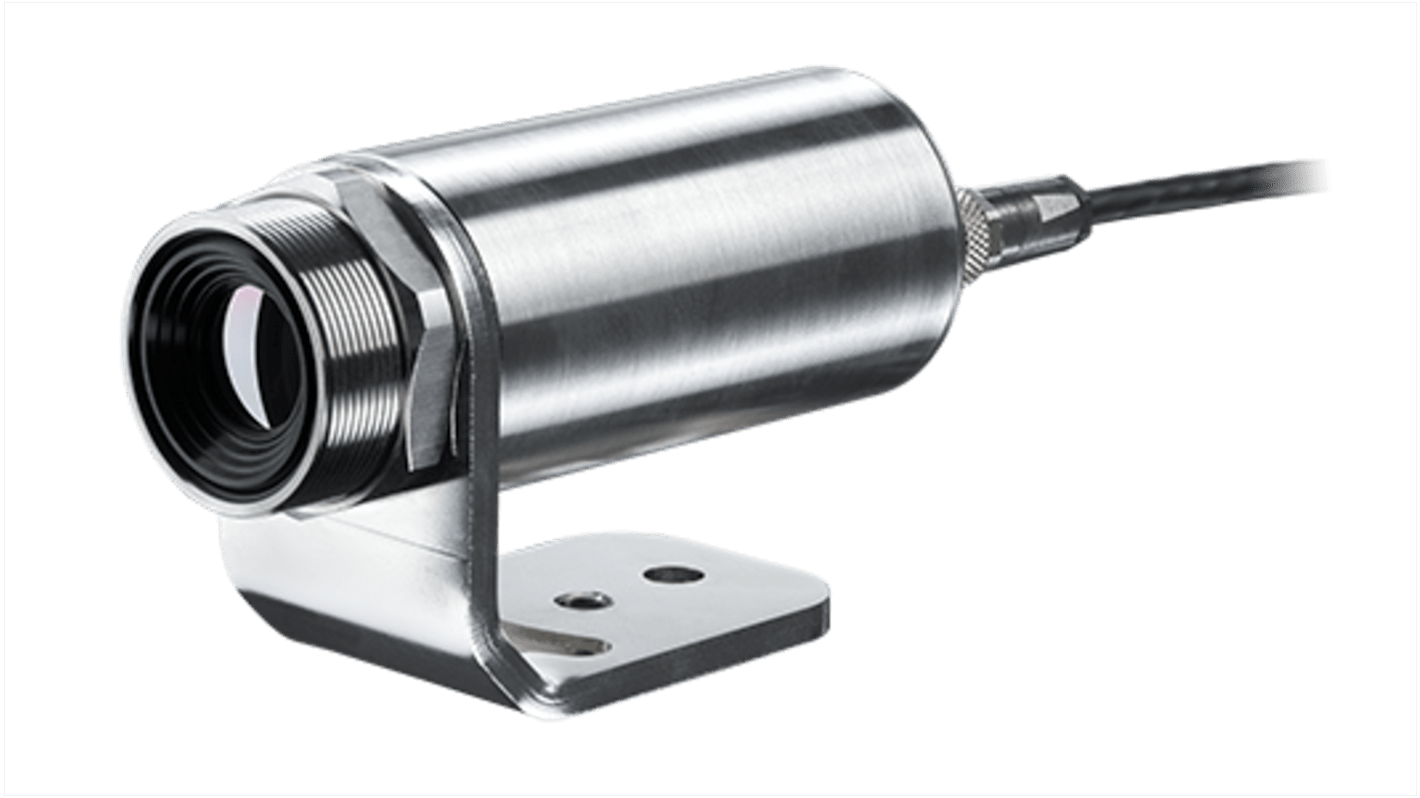

Optris CATXI40LTF13T090C USB Thermal Imaging Camera Kit, -20 → +900 °C, 382 x 288pixel Detector Resolution
- RS-artikelnummer:
- 241-0179
- Tillv. art.nr:
- CATXI40LTF13T090C
- Tillverkare / varumärke:
- Optris
1 I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
25 917,41 kr
(exkl. moms)
32 396,76 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 25 917,41 kr |
Kalibrerade alternativ:
- Typ av kalibrering:
- undefined
- RS-artikelnummer
- 241-0265
Pris (ex. moms) Varje
27 356,41 kr
(exkl. moms)
34 195,51 kr
(inkl. moms)
- RS-artikelnummer:
- 241-0179
- Tillv. art.nr:
- CATXI40LTF13T090C
- Tillverkare / varumärke:
- Optris
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Compact IR camera Kit
The Xi400 is a fusion of a rugged, compact pyrometer and a modern IR camera. Thanks to analog and digital outputs as well as the option to process definable measuring areas using an external process interface, the Xi camera is perfectly suited for autimisation process monitoring.
The silicon bolometer offers a resolution of 382x288 px. For easy and precice sighting a mot focus is integrated and can be adjusted easily via the free of charge software PIX connect or even by your Android smartphone and the free Android App IR mobile.
The silicon bolometer offers a resolution of 382x288 px. For easy and precice sighting a mot focus is integrated and can be adjusted easily via the free of charge software PIX connect or even by your Android smartphone and the free Android App IR mobile.
Small sized rugged IR camera with motor focus
Temperature Range -20 to 900 °C and Frame Rate up to 80 Hz
Direct In- and Output (0-10V) and digital Input (max. 24 V)
Free (Android/Windows) software for download
Radiometric recording
Temperature Range -20 to 900 °C and Frame Rate up to 80 Hz
Direct In- and Output (0-10V) and digital Input (max. 24 V)
Free (Android/Windows) software for download
Radiometric recording
Scope of Delivery
Xi 400 camera
1m USB cable
process interface (Xi 400 - 1m cable)
IR App Connector Xi 400 (USB-C)
Mounting bracket and nut
Software package PIX Connect
Quick start guide
1m USB cable
process interface (Xi 400 - 1m cable)
IR App Connector Xi 400 (USB-C)
Mounting bracket and nut
Software package PIX Connect
Quick start guide
Accessories:
CATACPIUSB5PCB5
Specifikationer
Attribute | Value |
|---|---|
| Temperature Measurement Range | -20 → +900 °C |
| Detector Resolution | 382 x 288pixel |
| Model Number | CATXI40LTF13T090C |
| Thermal Sensitivity | 80mK |
| Best Temperature Measurement Accuracy | +/- 2°C |
| Focus Type | Manual, Motor |
| Refresh Rate | 80Hz |
| Minimum Focus Distance | 100mm |
| Weight | 200g |
| Spatial Resolution IFOV | 0.15mm |
| Accuracy | ±2°C or ±2% |
| Visual Camera | No |
| Dimensions L x W x D | ø36mm x 100mm |
| Interface Type | USB |
| Emissivity | adjustable |
| Maximum Temperature Measurement | 900°C |
| Field of View | 29° x 22° |
| Model Number p | CATXI40LTF13T090C |
| Application | Thermal Imaging |
| Minimum Focus | 100 mm |
