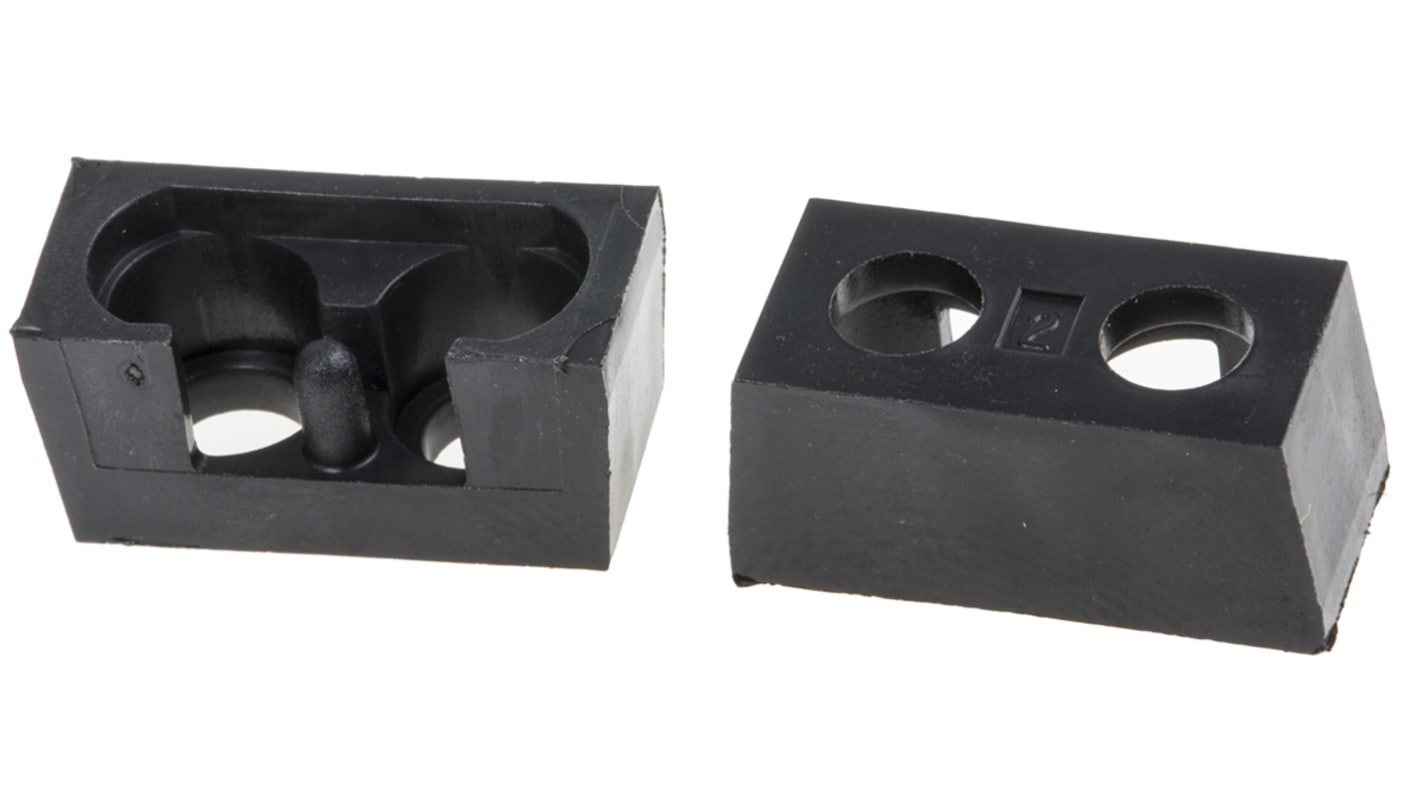

P44, End Fix for use with Modular Terminal Strip

  • RS-artikelnummer 794-8619
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Modular Barrier Strip

With these new concept terminal strips you can mix and match terminations with snap-together modules to provide permanent configurations. By mixing and matching the modular terminal strips you will make up what you want, when you want it, avoiding dead stock.

Flame-retardant polypropylene rated at 15A//750Vdc
Fixing should be made at every 16th hole of the connector
Snap-fit assembly, easily modified to increase the number of ways
4 BA nickel-plated brass terminals
Interchangeable with standard 15 A series
Jointing segment and an end fix are also available
Temperature range -55 → +100°C
F.C. 28.5mm (2-way), 38.1mm (3-way)

Specifikationer
Attribute Value
Accessory Type End Fix
For Use With Modular Terminal Strip
Series P44
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Pris (ex. moms) 1 Pack of 10
37,01 kr
(exkl. moms)
46,26 kr
(inkl. moms)
Förpackning(ar)
Per Pack
Per unit*
1 +
37,01 kr
3,701 kr
