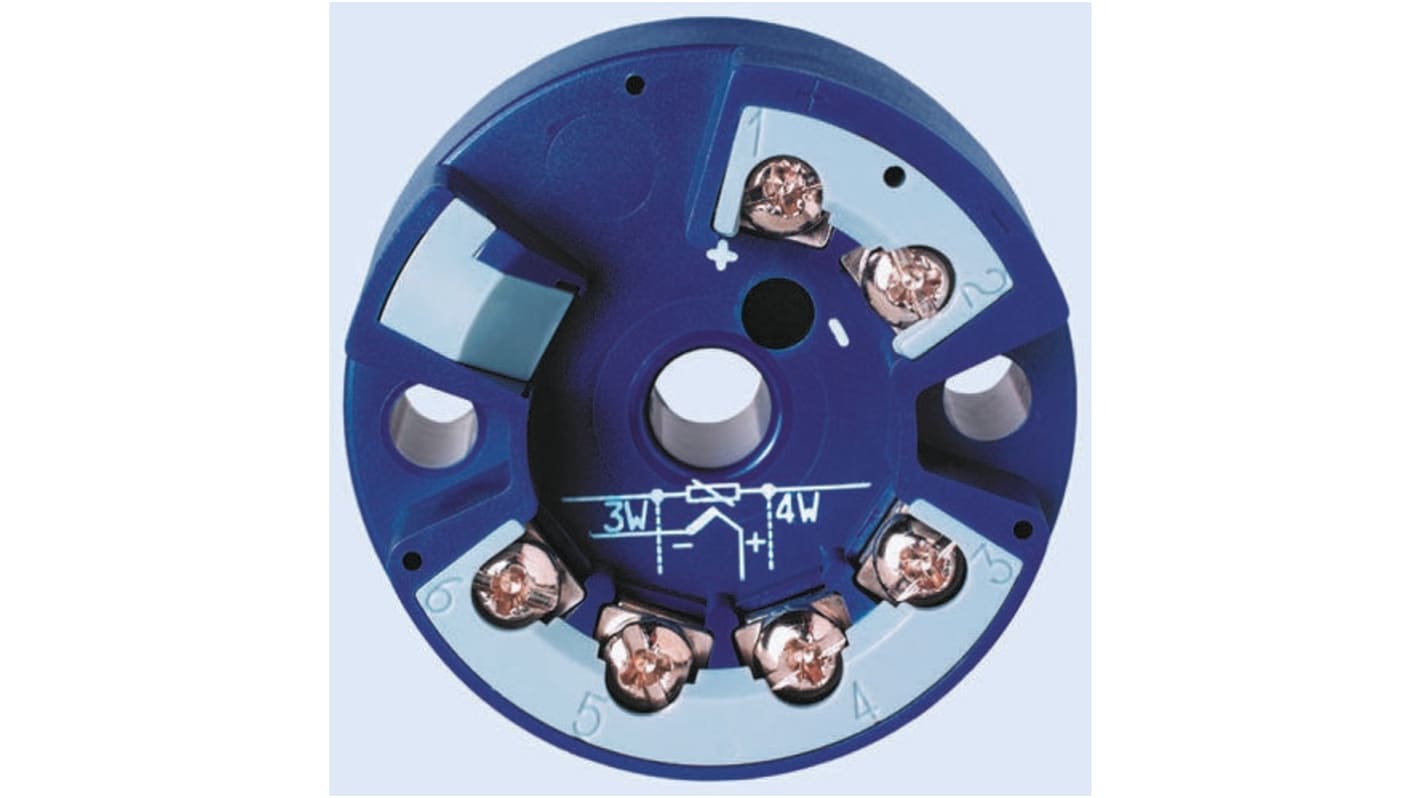

Jumo dTrans T01 Temperature Transmitter PT100 Input, 8 → 30 V dc
- RS-artikelnummer:
- 463-5571
- Tillv. art.nr:
- 707015/888-888-888/000 0..100°C Pt100vl
- Tillverkare / varumärke:
- Jumo
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
2 253,64 kr
(exkl. moms)
2 817,05 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 2 253,64 kr |
| 5 + | 2 184,72 kr |
- RS-artikelnummer:
- 463-5571
- Tillv. art.nr:
- 707015/888-888-888/000 0..100°C Pt100vl
- Tillverkare / varumärke:
- Jumo
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- DE
Produktdetaljer
dTRANS T01 — Programmable Two-Wire Transducer
Standard or EEX version
For connection to resistance thermometers and thermocouples
For installation in terminal head shape B according to DIN 43729
Sensor type, measurement range and linearisation are programmable
Galvanically isolated input and output
Customer-specific linearisation for resistance thermometer and thermocouple
Configuration using Windows Setup T01
Sensor break and sensor short-circuit detection (for resistance thermometer)
PC interface cable with TTL / RS232 converter and adapter
For connection to resistance thermometers and thermocouples
For installation in terminal head shape B according to DIN 43729
Sensor type, measurement range and linearisation are programmable
Galvanically isolated input and output
Customer-specific linearisation for resistance thermometer and thermocouple
Configuration using Windows Setup T01
Sensor break and sensor short-circuit detection (for resistance thermometer)
PC interface cable with TTL / RS232 converter and adapter
Certificate No.
II 1 G EEx ia IIC T6 / T5 / T4
Specifikationer
Attribute | Value |
|---|---|
| Input Type | PT100 |
| Supply Voltage | 8 → 30 V dc |
| Diameter | 44 mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Series | dTrans T01 |
| Depth | 21mm |
| Hazardous Area Certification | ATEX |
