TE Connectivity HTU31D Series Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, ±2%RH, 6 Pins

RS-artikelnummer:: 236-2657
Tillv. art.nr:: 10142048-21
Tillverkare / varumärke:: TE Connectivity

TE Connectivity HTU31D Series Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, ±2%RH, 6 Pins

2776 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 2)

34,46 kr

(exkl. moms)

43,08 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
2 - 8	34,46 kr	68,92 kr
10 - 98	30,415 kr	60,83 kr
100 - 498	27,24 kr	54,48 kr
500 - 998	26,475 kr	52,95 kr
1000 +	25,82 kr	51,64 kr

RS-artikelnummer:: 236-2657
Tillv. art.nr:: 10142048-21
Tillverkare / varumärke:: TE Connectivity

Datablad

Datasheet - 10142048-21

Lagstiftning och ursprungsland

Uppfyller ej RoHS

COO (Country of Origin):: TH

Produktdetaljer

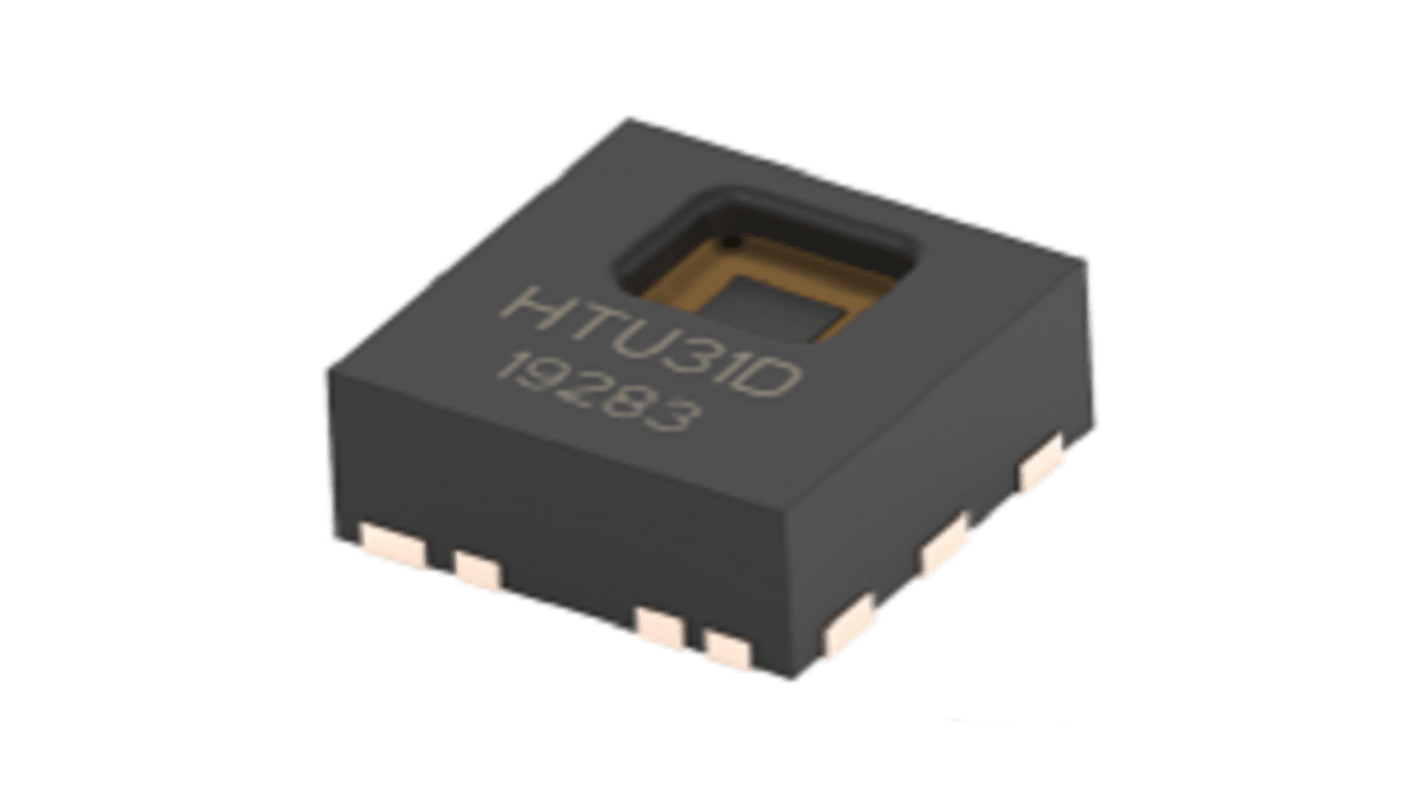

The TE Connectivity HTU31 series humidity & temperature sensor is one of the smallest and most accurate humidity sensors on the market. It is enabled with new product and fast response time, precision measurement, low hysteresis, robustness to reflow assembly process and sustained performance even when exposed to extreme temperature and humidity environments.

High accuracy ±2%RH and ±0.2°C
Fast humidity response time 5s
Wide supply voltage range from 3V to 5.5V
Low average current 1μA typical
Compact 6-Pin DFN package 2.5x2.5x0.9mm
Fast I²C Interface with 2 configurable addresses

Specifikationer

Attribute	Value
Sensor Function	Temperature & Humidity
Output Type	Digital
Interface Type	I2C
Accuracy	±2%RH
Mounting Type	Surface Mount
Pin Count	6
Operating Temperature Range	-40 → 125 °C
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C
Minimum Operating Supply Voltage	3 V
Maximum Operating Supply Voltage	5.5 V
Package Type	DFN
Length	2.5mm
Height	0.9mm
Series	HTU31D
Width	2.5mm
Dimensions	2.5 x 2.5 x 0.9mm

RS-artikelnummer:: 236-2657
Tillv. art.nr:: 10142048-21
Tillverkare / varumärke:: TE Connectivity

Datasheet - 10142048-21
