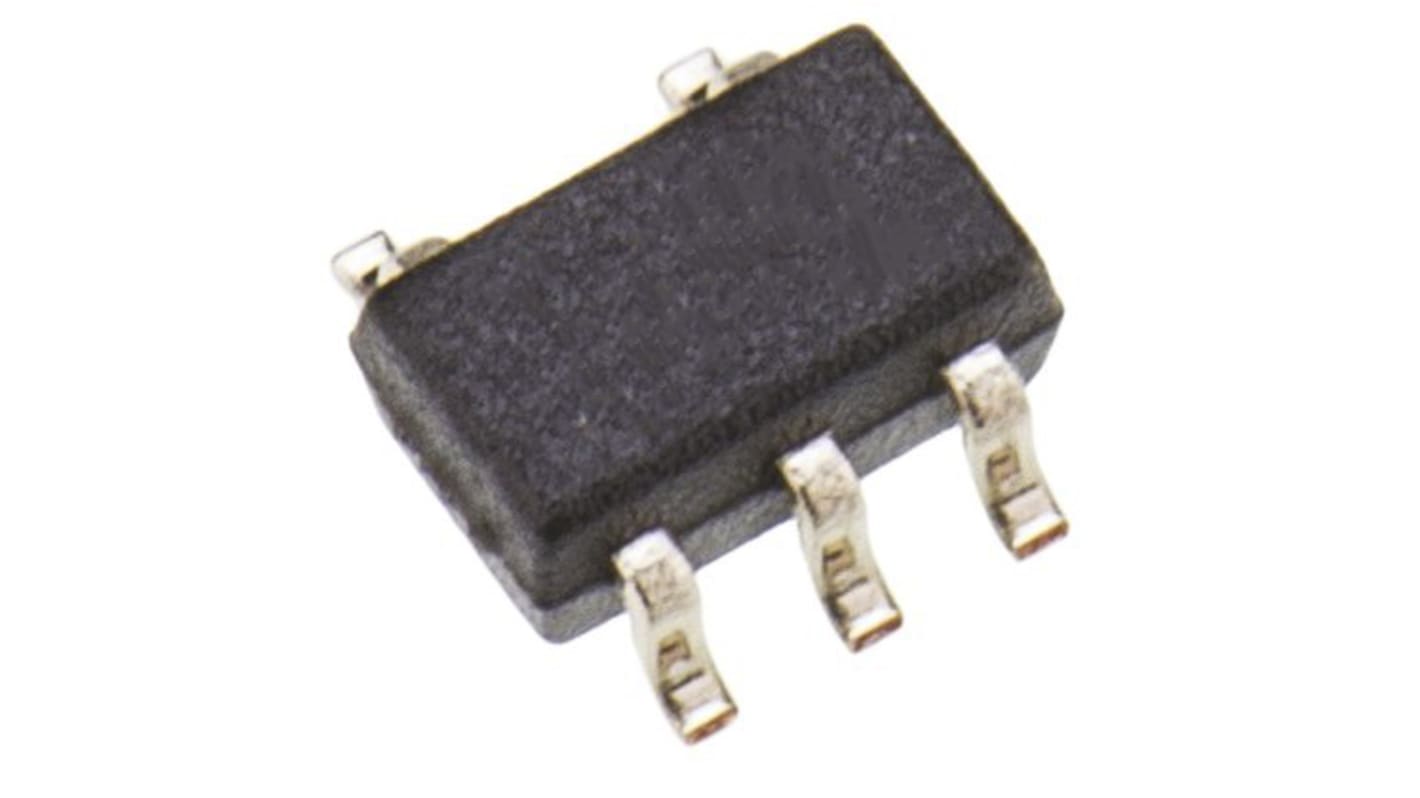

Maxim Integrated Analog Temperature Sensor, Analogue Output, Surface Mount, ±5.5°C, 5 Pins

RS-artikelnummer:: 190-5398
Tillv. art.nr:: MAX6612MXK+T
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated Analog Temperature Sensor, Analogue Output, Surface Mount, ±5.5°C, 5 Pins

210 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 10)

17,411 kr

(exkl. moms)

21,764 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
10 - 90	17,411 kr	174,11 kr
100 - 240	13,907 kr	139,07 kr
250 - 490	13,219 kr	132,19 kr
500 - 990	11,134 kr	111,34 kr
1000 +	10,447 kr	104,47 kr

RS-artikelnummer:: 190-5398
Tillv. art.nr:: MAX6612MXK+T
Tillverkare / varumärke:: Maxim Integrated

Datablad

MAX6612MXK+T - Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: MY

Produktdetaljer

Optimized for Use with ADCs
High Temperature-to-Voltage Slope
Able to Drive High-Capacitive Loads
Operates Up to +150°C
Low Current Consumption (35μA max)
No Calibration Required
Space-Saving SC70 Package
Applications
Battery Packs
GPS Equipment
Home Appliances
Industrial Equipment
Medical Instruments
Portable Equipment
Wireless Base Stations

Specifikationer

Attribute	Value
Sensor Function	Temperature
Output Type	Analogue
Accuracy	±5.5°C
Mounting Type	Surface Mount
Pin Count	5
Operating Temperature Range	-55 to +150 °C
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+150 °C
Minimum Operating Supply Voltage	2.4 V
Maximum Operating Supply Voltage	5.5 V
Package Type	SC-70
Length	2.2mm
Height	1mm
Width	1.35mm
Sensor Gain	19.53 (Typ.)mV/°C
Dimensions	2.2 x 1.35 x 1mm

RS-artikelnummer:: 190-5398
Tillv. art.nr:: MAX6612MXK+T
Tillverkare / varumärke:: Maxim Integrated

MAX6612MXK+T - Datasheet
