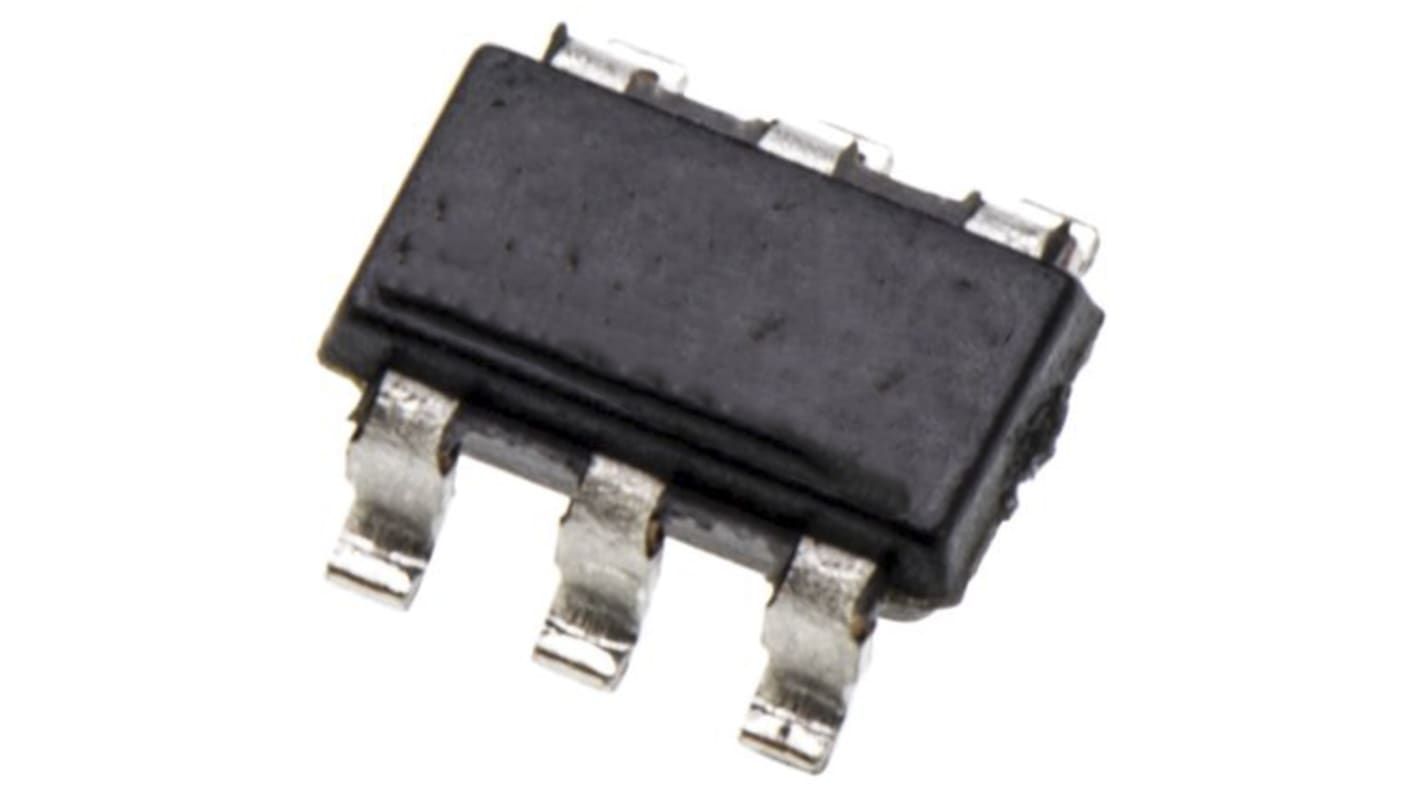

Maxim Integrated Temperature Sensor, Open Drain Output, Surface Mount, Serial-1 Wire, ±5°C, 6 Pins
- RS-artikelnummer:
- 190-4805
- Tillv. art.nr:
- MAX6575LZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 2500)
11,712 kr
(exkl. moms)
14,64 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 2500 + | 11,712 kr | 29 280,00 kr |
- RS-artikelnummer:
- 190-4805
- Tillv. art.nr:
- MAX6575LZUT+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Simple Single-Wire Interface to μP or μC
Multidrop up to Eight Sensors on One Wire
±0.8°C Accuracy at +25°C (±3°C max)
Operates from +2.7V to +5.5V Supply Voltage
Low 150μA (typ) Supply Current
Standard Operating Temperature Range -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Multidrop up to Eight Sensors on One Wire
±0.8°C Accuracy at +25°C (±3°C max)
Operates from +2.7V to +5.5V Supply Voltage
Low 150μA (typ) Supply Current
Standard Operating Temperature Range -40°C to +125°C
Small 6-Pin SOT23 Package
Applications
Battery Packs
Cell Phones
Critical μP and μC Monitoring
Hard Drives/Tape Drives
Medical Equipment
Networking and Telecom Equipment
Portable Battery-Powered Equipment
Specifikationer
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | Open Drain |
| Interface Type | Serial-1 Wire |
| Accuracy | ±5°C |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Operating Temperature Range | -40 to +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | SOT-23 |
| Length | 3mm |
| Height | 1.3mm |
| Width | 1.75mm |
| Dimensions | 3 x 1.75 x 1.3mm |
